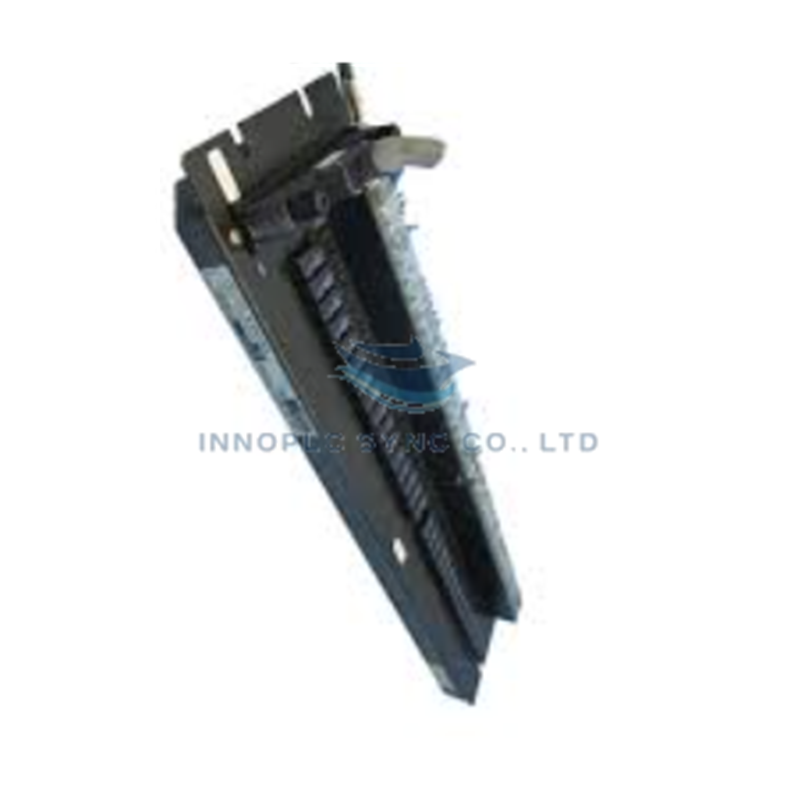

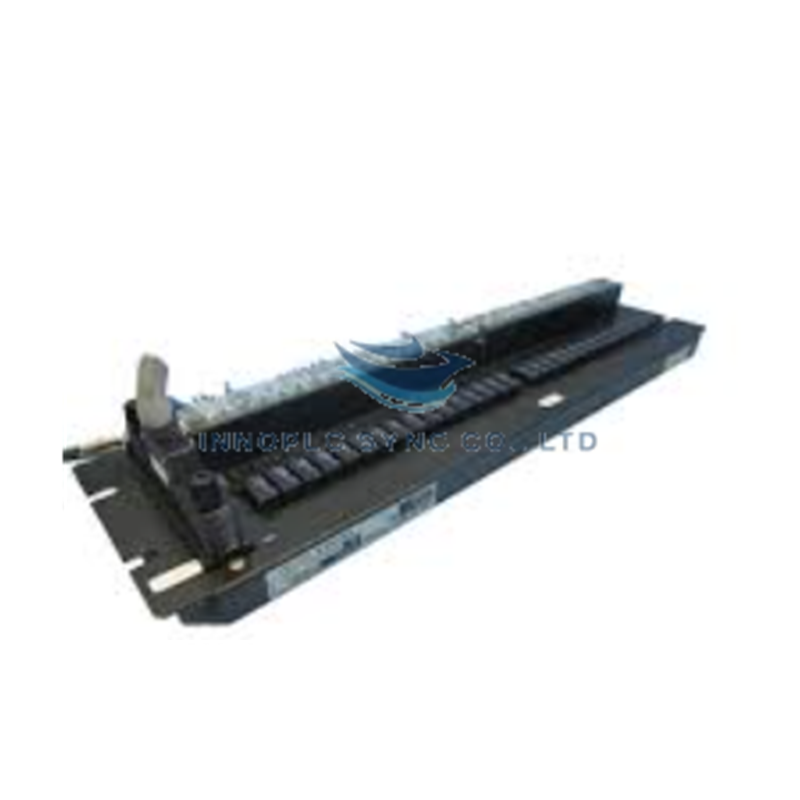

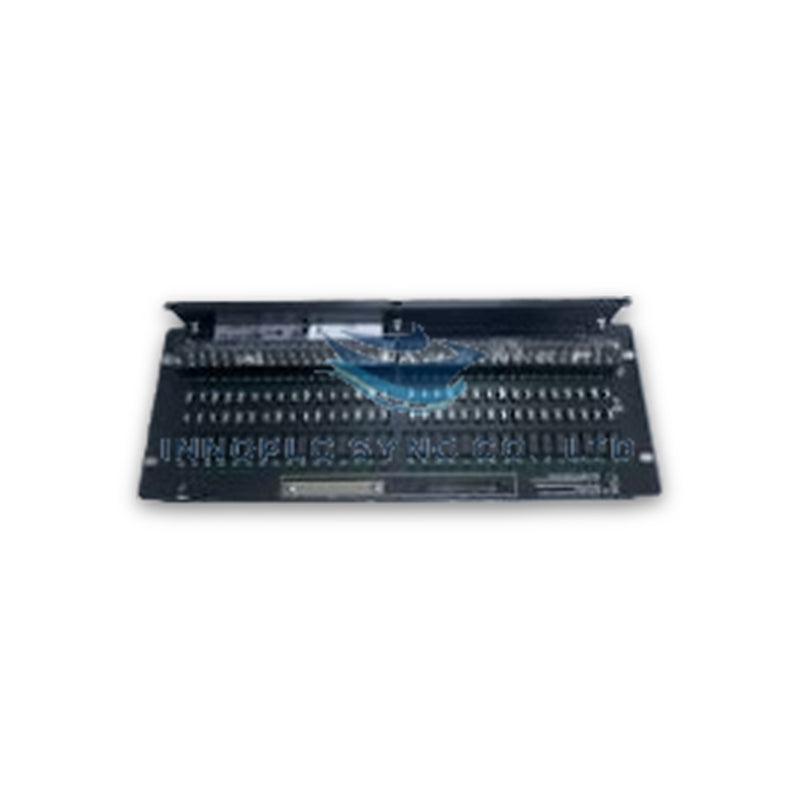

Yokogawa SARM55D Analog Input Terminal Board
The Yokogawa SARM55D Terminal Board , also cataloged as the SARM55D Analog Input Terminal Interface, operates as a dedicated hardware component for field wiring terminations and analog signal conditioning within CENTUM VP / CENTUM CS 3000 platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SARM55D Terminal Board |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | Standard terminal board weight |
| Dimensions | Standard Yokogawa terminal board footprint |
| Operating Temp | -20 to +55 deg C (cabinet dependent) |
| Power Consumption | Passive pass-through / Module dependent |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Channel Count | 16 channels |
| Supported Input Signals | 4-20 mA current, 1-5 VDC voltage inputs |
| Signal Isolation | Channel-to-channel and channel-to-system isolation |
| Field Terminal Type | Screw-type or clamp-type (variant dependent) |
| Mounting | Yokogawa I/O baseplate mounting |
| Relative Humidity | 5-95% RH, non-condensing |
| Interface Connector | Dedicated backplane connector for SARM55D module |
Signal Routing & HART Loop Conditioning
The unit features galvanically isolated analog signal pass-through lines supporting 4-20 mA HART loop protocol communications across all 16 channels. High channel-to-channel isolation prevents ground loop interference and cross-channel noise propagation between process instrumentation and the main subsystem logic. The integrated shield grounding bus provides stable continuous drain points for low-amplitude voltage signals, keeping total harmonic distortion minimal across the system interface backplane.
Frequently Asked Questions
Q: Can field transmitters be wired directly to the terminal board without active signal converters?
A: Yes. The board directly accepts standard 4-20 mA loop signals and 1-5 VDC inputs through designated terminal connections for routing to the parent I/O module.
Q: How is shield grounding handled on this terminal interface?
A: Dedicated shield terminal points are tied to the industrial ground bus to minimize noise interference on analog input channels.
Q: Does replacing the terminal board require disconnecting the main backplane cable?
A: Physical terminal board replacement requires locking out the active loop power and detaching the dedicated backplane connector from the SARM55D module interface.
Field Installation Guidelines
- Mount the terminal board securely onto the designated Yokogawa I/O baseplate within an industrial enclosure maintaining an ambient temperature of -20 to +55 deg C.
- Ensure all field wiring for 4-20 mA current loops and 1-5 VDC signals is stripped to recommended lengths and torqued down properly according to terminal specs (screw or clamp type).
- Connect signal cable shields to the designated ground terminals; maintain single-point grounding to prevent ground loops.
- Verify tight engagement of the dedicated backplane connector between the SARM55D terminal board and the corresponding analog input module before applying loop power.
