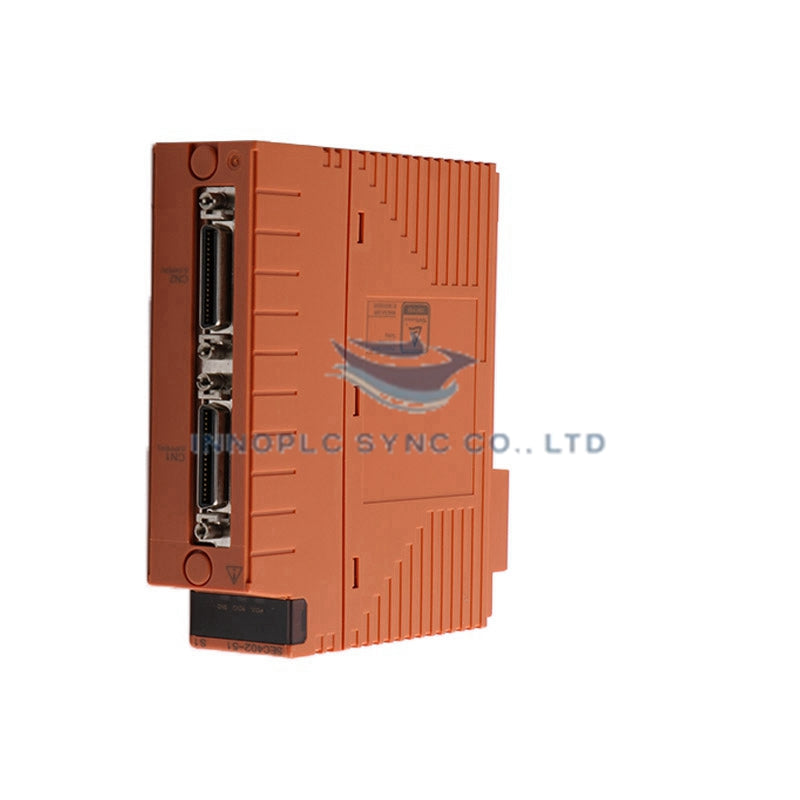

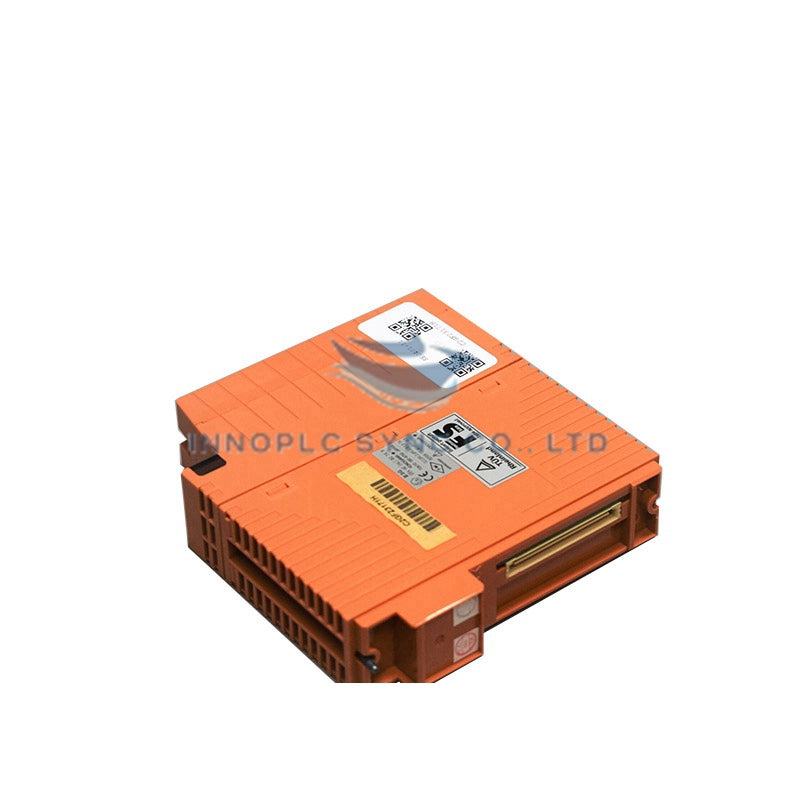

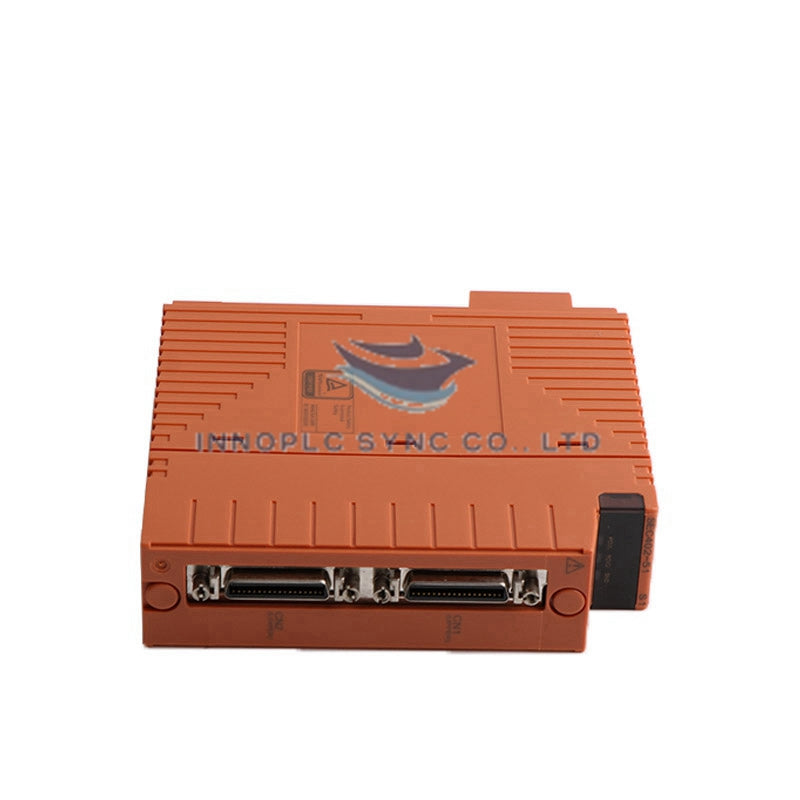

Yokogawa SAI533-H33/PRP Safety Analog Output Module
The Yokogawa SAI533-H33/PRP , also cataloged as the SAI533 Safety Analog Output Module, operates as a dedicated hardware component for safety-rated final element control execution within ProSafe-RS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SAI533-H33/PRP |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | Standard module weight |
| Dimensions | Standard ProSafe-RS module footprint |
| Operating Temp | Standard cabinet operating environment |
| Power Consumption | System backplane powered |
| Module Type | Safety Analog Output Module |
| Output Channels | 8 isolated output channels |
| Output Signal | 4-20 mA DC |
| Redundancy Architecture | Peer-to-Peer Redundancy (/PRP dual-module configuration) |
| Safety Integrity Level | Certified up to SIL3 |
| Signal Protection | Fully isolated output channels with continuous self-diagnostics |
Signal Routing & Safety Loop Isolation
The unit features galvanically isolated output channels configured to execute SIL3 safety functions with 4-20 mA HART loop protocol driving capability. High channel-to-channel and channel-to-system isolation prevents electrical noise and ground loop propagation between field final control elements and the backplane logic. Continuous internal self-diagnostics constantly monitor output loop integrity to ensure immediate fault detection and fail-safe state execution in safety instrumented loops.
Frequently Asked Questions
Q: What operational protection does the /PRP option provide for analog output loops?
A: The /PRP designation enables dual Peer-to-Peer Redundancy, allowing two identical modules to operate as a fault-tolerant pair to eliminate single points of failure in safety-critical output paths.
Q: How does the module react to internal hardware or signal transmission faults?
A: Integrated continuous self-diagnostics automatically detect hardware anomalies and force output channels into a preconfigured safe state to maintain SIL3 functional safety compliance.
Q: What physical signal standard is output on the 8 field channels?
A: The module outputs an isolated 4-20 mA DC current loop signal designed to drive safety-rated final control elements like actuators and positioners.
Field Installation Guidelines
- Insert the SAI533-H33/PRP module firmly into the dedicated I/O slot of the ProSafe-RS rack, confirming backplane locking mechanisms are fully engaged.
- When configuring for Peer-to-Peer Redundancy (/PRP), install the paired module in the adjacent designated redundant slot per system rack assignments.
- Ensure field wiring for all 8 isolated 4-20 mA DC loops uses shielded twisted-pair cables terminated cleanly at the corresponding field termination assembly.
- Ground all cable shields at the single point bus ground within the cabinet to prevent noise coupling across the isolated channels.
- Verify module firmware and redundant configuration parameters in the safety engineering tool prior to commissioning safety loops.
