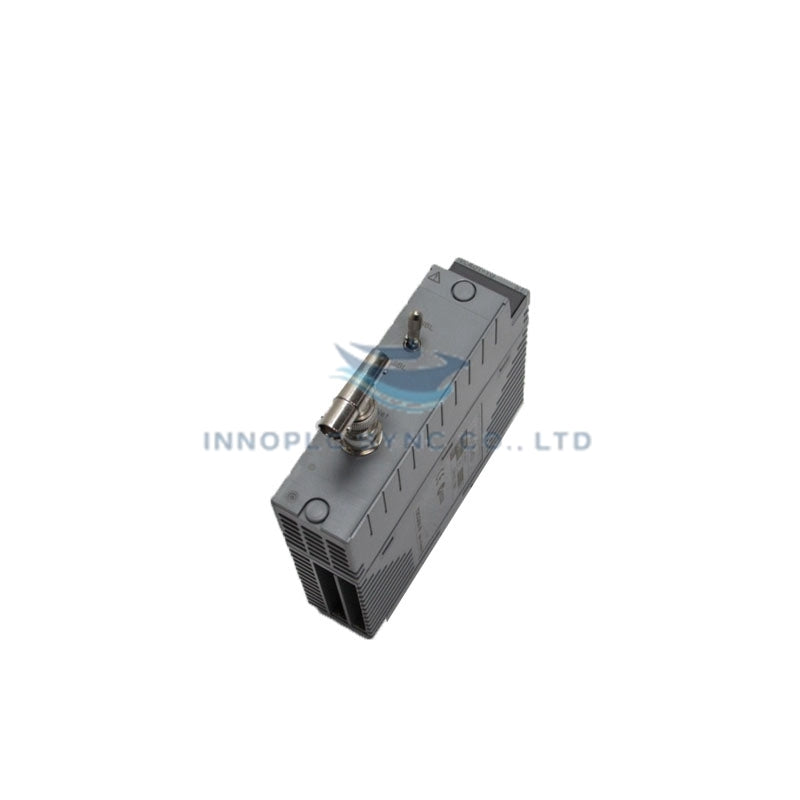

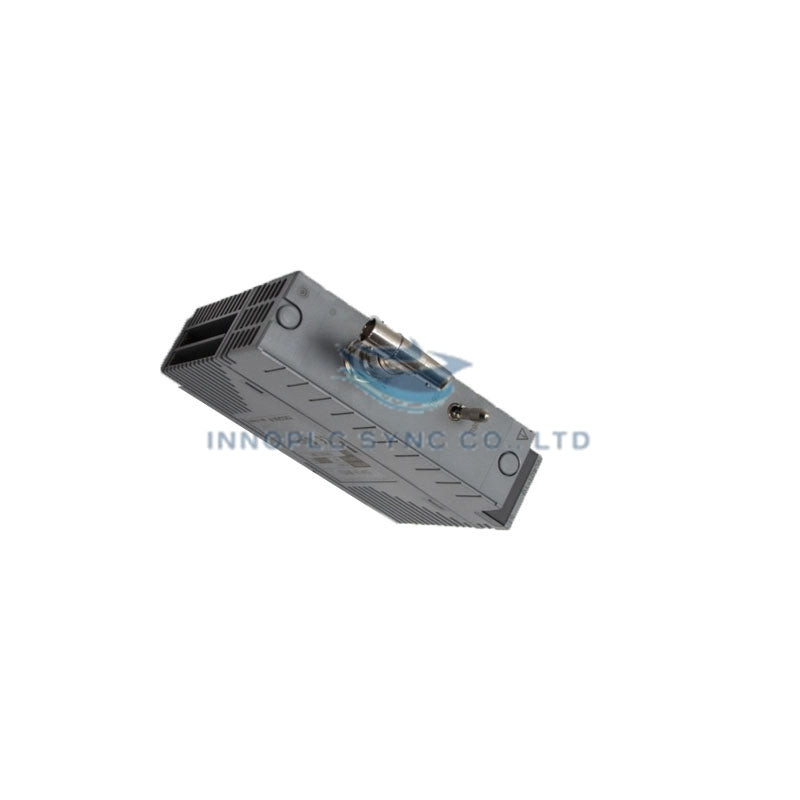

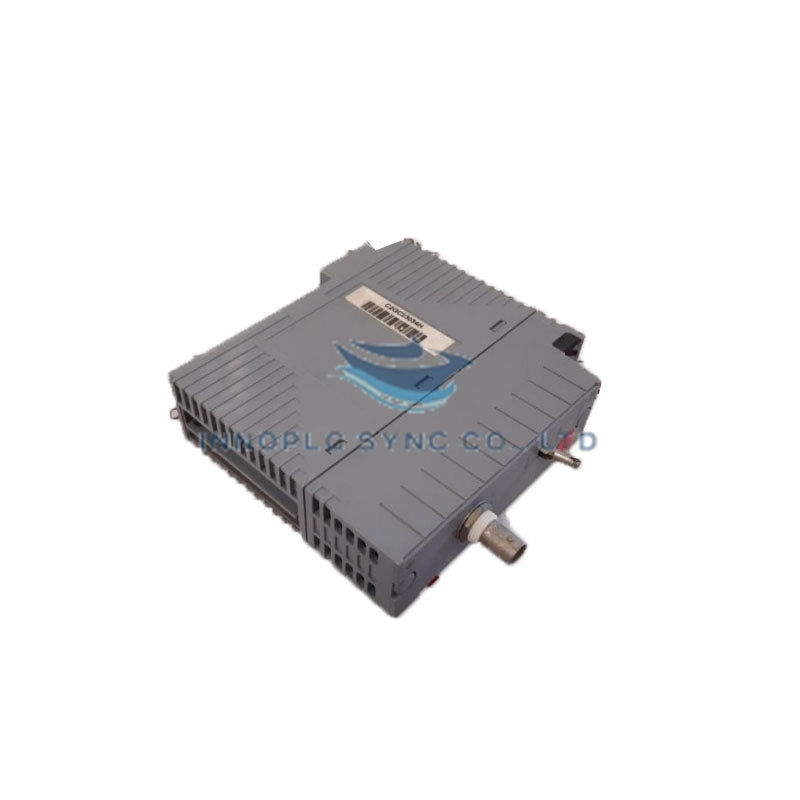

Yokogawa PFCD-S5520/2-TE Field Control Station
Configured for distributed control, monitoring, and data acquisition in Yokogawa DCS networks, the Yokogawa PFCD-S5520/2-TE (PFCD-S5520 Field Control Station) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PFCD-S5520/2-TE |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | Not specified (Standard Field Control Unit ~3.0 kg) |
| Dimensions | Standard Yokogawa Field Control Station enclosure size |
| Operating Temp | -10 deg C to +60 deg C |
| Power Consumption | Backplane bus powered / System fed |
| System Type | Field Control Station |
| Function | Distributed control, monitoring, and data acquisition |
| Mounting Options | Panel mount or DIN rail |
| Protection Rating | Ruggedized industrial enclosure |
Channel Isolation and Loop Communication Execution
The PFCD-S5520/2-TE architecture integrates high-density signal conditioning circuits and optical isolation barriers to decouple field-side I/O signals from primary system processing logic. Channel-to-channel isolation safeguards the internal controller backplane against high-voltage surges and electromagnetic interference, mitigating cross-talk across multi-drop field loops. This isolation framework maintains signal clarity and transmission accuracy across 4-20 mA HART communication channels, FOUNDATION Fieldbus segments, and cold junction compensation (CJC) sensor networks connected to the control station interface.
Frequently Asked Questions
Q: How does the PFCD-S5520/2-TE maintain ground loop isolation across high-density field I/O connections?
A: Internal optical isolators establish a galvanic boundary between field terminal blocks and internal processing buses, preventing ground potential differences from corrupting digital or analog control loops.
Q: What mounting configurations are supported for cabinet integration?
A: The ruggedized enclosure is designed for mounting on standard industrial DIN rails or direct panel bolt fixing within IP20 or higher control cabinets.
Field Installation Guidelines
- Mount the control station enclosure vertically onto a 35 mm DIN rail or secure it to the enclosure backplate using M5 panel mounting screws.
- Verify that line power is isolated before wiring primary power terminals or attaching I/O expansion cables.
- Terminate signal cable shield drain wires directly to the main cabinet earth bar using low-impedance grounding clamps.
- Maintain a minimum vertical clearance of 50 mm above and below the housing vents to ensure passive thermal dissipation.
- Apply input power and check status LEDs to confirm nominal system initialization and network communication link establishment.
