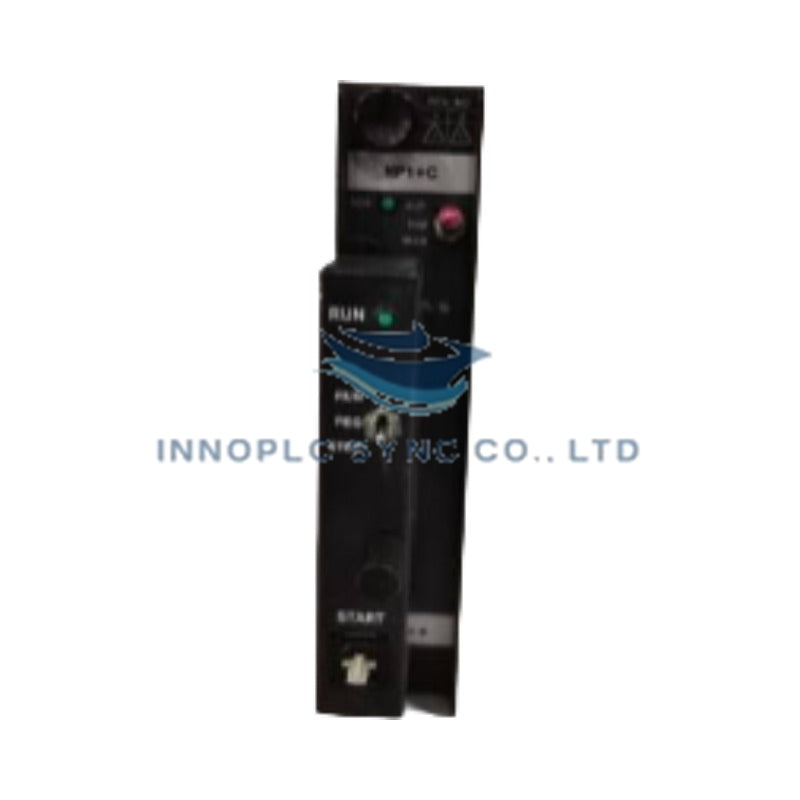

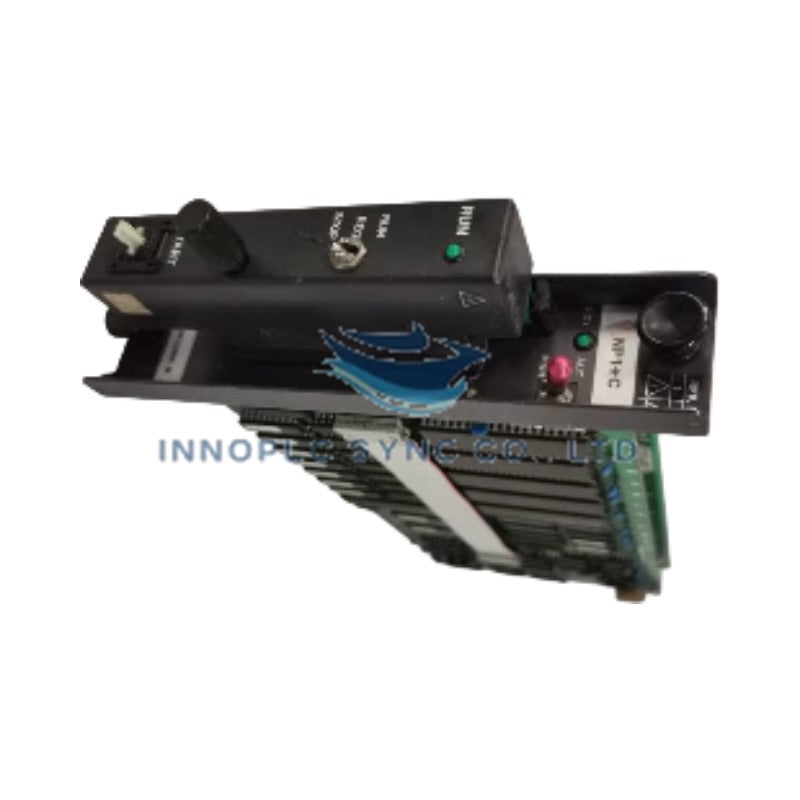

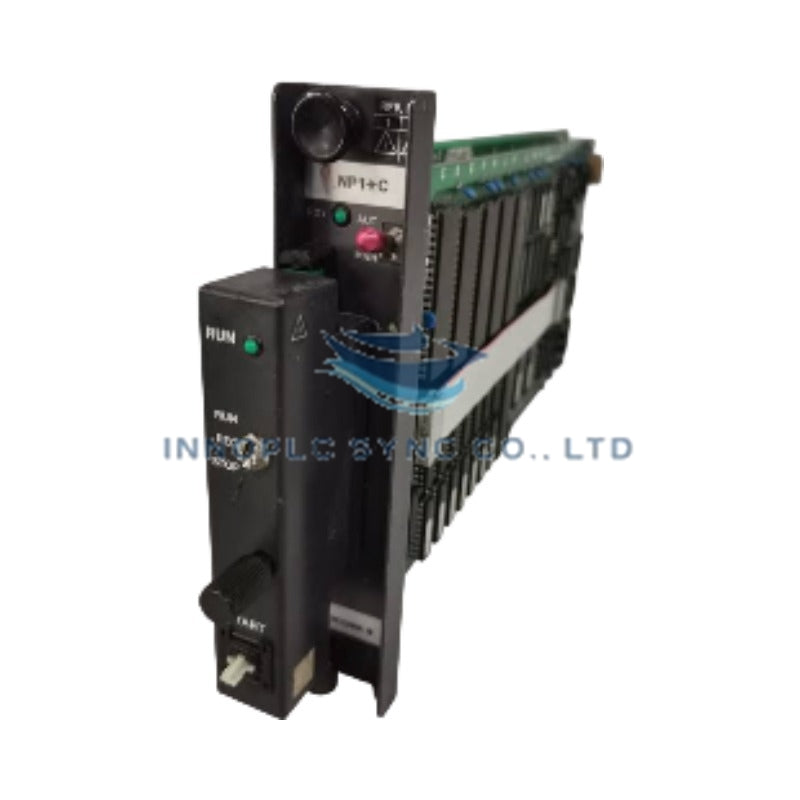

Yokogawa NP1*C I/O Module
Configured for discrete and analog signal interface applications in NP1 PLC architectures, the Yokogawa NP1*C, also cataloged as the NP1*C I/O Module, provides direct physical/electrical execution for process automation control.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NP1*C |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.2 kg |
| Dimensions | 100 mm x 100 mm x 50 mm |
| Operating Temp | -25 to 70 deg C |
| Power Consumption | Backplane bus powered |
| Memory Capacity | 512 KB to 4 MB RAM, 256 KB to 2 MB Flash ROM |
| I/O Structure | Modular configuration supporting analog and digital channels |
| Serial Interfaces | RS-232, RS-485 (model dependent) |
| Network Interfaces | Ethernet (model dependent) |
Channel Isolation and Bus Velocity Profiles
The Yokogawa NP1*C I/O module integrates high-speed internal backplane communication lines with optical isolation to separate sensitive processing hardware from field-side wiring loops. Featuring high-density I/O routing capabilities, the card handles concurrent signal acquisition without cross-talk or common-mode noise corruption. Channel-to-channel optical barriers protect internal logic chips against unexpected field voltage surges, while onboard memory blocks process deterministic scan cycles for real-time control algorithms.
Frequently Asked Questions
Q: Does the NP1*C module support field wiring installation while backplane power is active?
A: To prevent backplane bus communication faults or damage to internal memory circuits, field wiring terminal blocks should be disconnected or backplane power isolated prior to module insertion or removal.
Q: How are field communication signals shielded against high-frequency electromagnetic interference?
A: The physical serial layer (RS-485 / RS-232) utilizes galvanically isolated transceiver channels to maintain differential signal integrity and prevent ground loop circulating currents.
Field Installation Guidelines
- Mount the module firmly on the designated NP1 backplane rail slot until the retention clip clicks into position.
- Route high-voltage power wiring and low-voltage I/O signal lines in separate wire trays to avoid capacitive coupling.
- Terminate signal cable shields to the cabinet ground bar using a low-impedance grounding strap.
- Ensure ambient cabinet temperature remains within the -25 to 70 deg C operating range via adequate cabinet ventilation.
- Confirm that serial port pin assignments and communication speeds match controller hardware parameters before commissioning.
