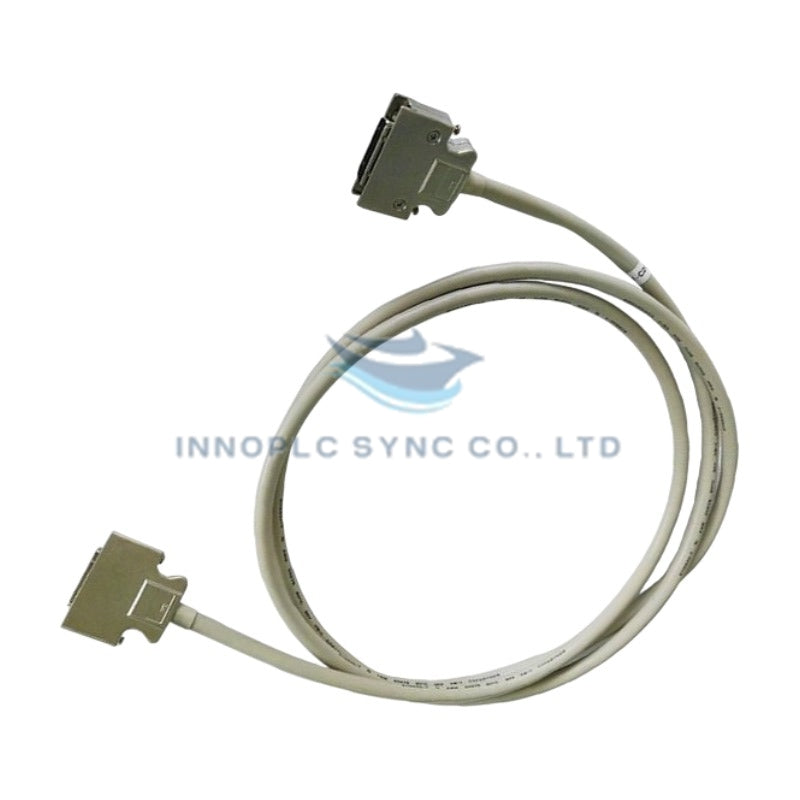

Yokogawa KS2*A connector signal cables
The Yokogawa KS2*A serves as the primary KS2*A Signal Cable utilized to execute multi-channel analog and digital signal transmission across industrial automation platforms.
Suffix Breakdown & Model Matrix
- KS2*A: Base model designation for 40-pin connector signal cables utilizing 20-pair shielded architecture.
- Length Options: Variable ordering suffixes designating lengths of 1m, 2m, 3m, 4m, 8m, and 20m.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KS2*A |
| Brand | Yokogawa |
| Origin | Standard Industrial Manufacturing |
| Weight | Varies by specified cable length |
| Dimensions | 40-pin connectors at both ends, lengths from 1m to 20m |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Passive physical media component |
| Number of Pins | 40-pin connectors at both ends |
| Cable Type | 20-pair shielded cable |
4-20 mA HART Loop Protocol and CJC Loop Integration
The integrated 20-pair shielded cable design ensures robust signal isolation for analog loops and digital inputs connecting Yokogawa field instrumentation to control system nodes. By minimizing electromagnetic coupling and capacitive crosstalk, the shielding architecture maintains precise voltage and current transmission across high-density I/O terminations. Operating parameters accommodate standard industrial signal ranges while withstanding ambient thermal fluctuations from -20 deg C to +70 deg C without degradation of the polyethylene or PVC jacket integrity.
Frequently Asked Questions
Q: Can the KS2*A cable be utilized for both analog and digital signal routing simultaneously?
A: Yes, the 20-pair shielded configuration allows multiple discrete analog and digital channels to be bundled within the same physical harness, provided proper signal segregation and grounding rules are followed.
Q: What precautions are necessary when pulling pre-connectorized 40-pin cables through industrial conduits?
A: Exercise caution to avoid exceeding the maximum tensile load on the 40-pin connector housing, and ensure pulling grips distribute forces evenly across the cable body rather than the termination pins.
Field Installation Guidelines
- Inspect both 40-pin connectors for bent or contaminated pins prior to engagement with field marshalling panels or I/O cards.
- Route the 20-pair shielded cable away from high-voltage power conduits and variable frequency drive output cables to prevent electromagnetic interference.
- Terminate the overall cable shield securely to the designated panel ground bar to maintain low-impedance noise mitigation.
- Secure the connector locking mechanisms firmly to prevent loosening under continuous industrial vibration
