Yokogawa KS1-20 Signal Cable

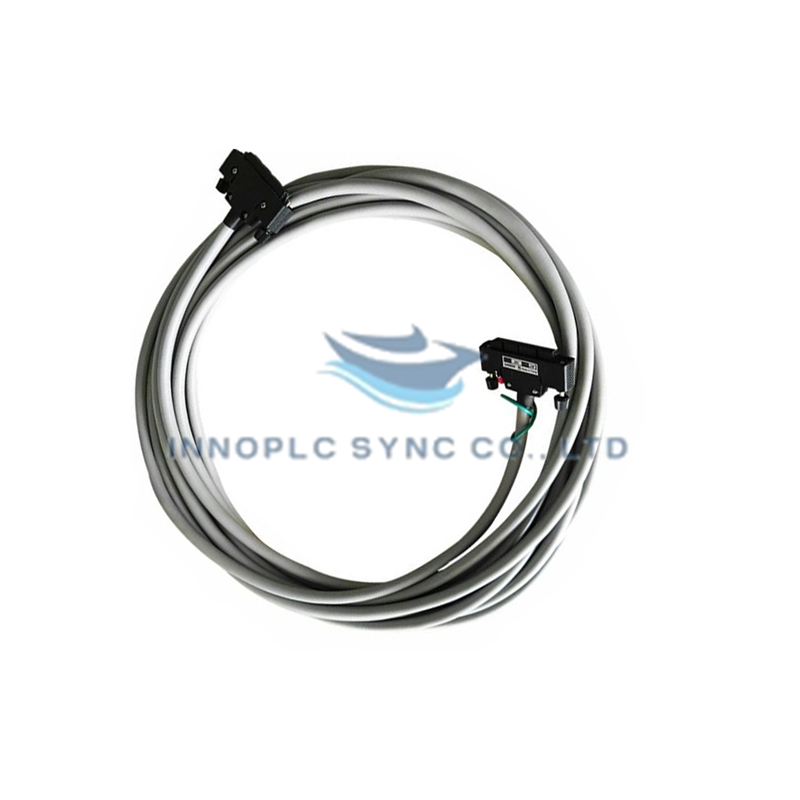

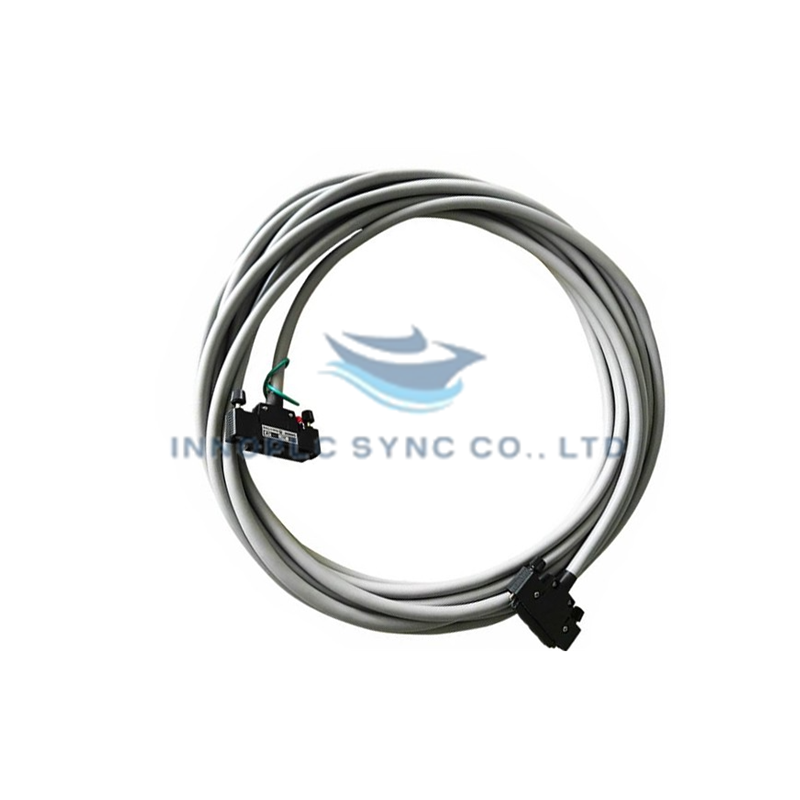

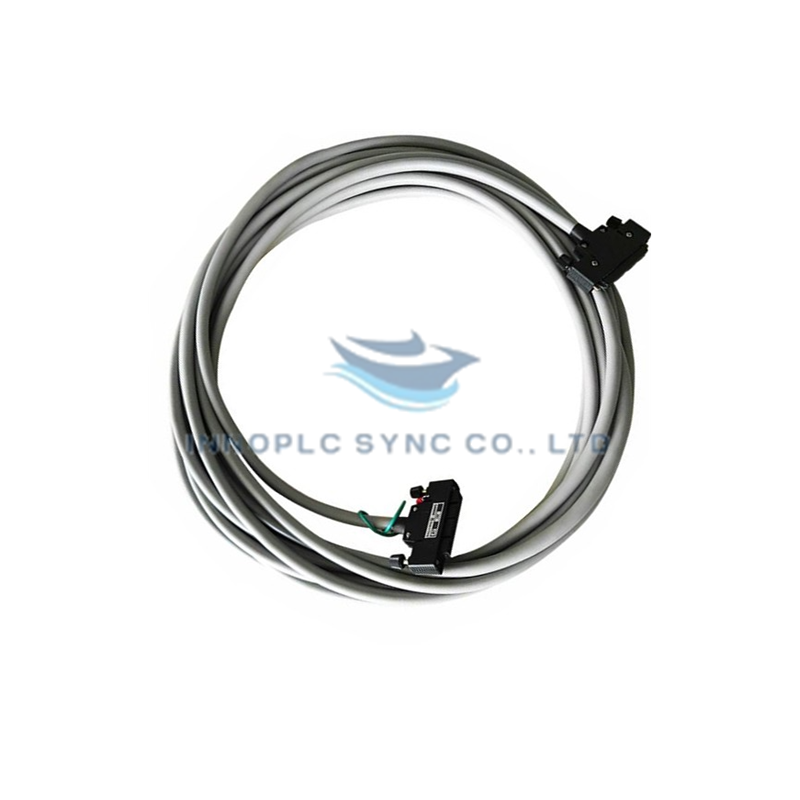

Configured for multi-channel I/O signal interconnectivity in Yokogawa control network platforms, the Yokogawa KS1-20 ( KS1 Signal Cable) provides direct physical/electrical execution. It serves as the primary KS1 Signal Cable utilized to execute point-to-point signal wiring across Yokogawa DCS backplane platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KS1-20 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 2.0 kg |
| Dimensions | 20 m length |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Passive wiring assembly |
| Cable Assembly Type | 40-pin to 40-pin signal cable |
| Connector Format | High-density ribbon/multi-conductor header |
DCS Signal Conditioning & Field Loop Protocol Features
The KS1-20 cable assembly utilizes shielded multi-conductor wiring designed to transfer low-level analog and discrete digital telemetry between field terminal panels and system I/O modules without signal degradation over extended distance runs. The cable construction preserves low loop resistance to maintain signal accuracy for 4-20 mA HART loop protocol instruments and Foundation Fieldbus digital communications. Built-in overall shielding provides cross-talk suppression and high noise immunity across high-density control cabinets, shielding critical process measurement channels from external electromagnetic interference.
Frequently Asked Questions
Q: What connector pin configuration does the KS1-20 signal cable use?
A: The KS1-20 features a 40-pin to 40-pin terminal connector layout designed for direct connection to Yokogawa I/O interfaces and terminal boards.
Q: What is the maximum recommended ambient operating temperature for the KS1-20?
A: The cable assembly is rated for continuous field operation in ambient environments ranging from -20 deg C to +70 deg C.
Field Installation Guidelines
- Inspect the 40-pin connectors for pin straightness and cleanliness before mating with the I/O module or terminal board.
- Tighten all connector locking screws firmly to ensure continuous electrical contact and resistance against cabinet vibration.
- Maintain the manufacturer's minimum bend radius along the 20-meter cable run to prevent conductor strain or shield tearing.
- Separate the signal cable path from AC power conductors and high-voltage switching lines to minimize inductive noise pickup.
