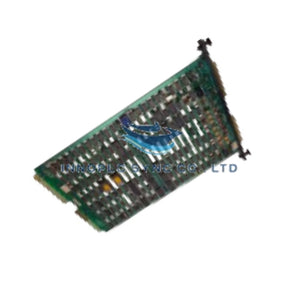

Yokogawa FC81-A Bus Communication Control Card
The Yokogawa FC81-A is a high-frequency bus communication control card engineered for CENTUM XL and Micro XL distributed control systems. It acts as a centralized communication controller to facilitate fast and reliable data exchange between system controllers and High-speed Fieldbus (HF) devices, enhancing overall plant responsiveness and stability.
Communication and System Architecture
Designed to handle intensive network traffic, this card ensures stable, high-frequency signal transmission across industrial fieldbus architectures. Its centralized handling capability minimizes communication latency, making it well-suited for demanding process control tasks within power generation and chemical facilities.
Physical Specifications and Dimensions
The hardware is built into a compact module frame measuring 25.4 cm × 5.1 cm × 38.1 cm and weighing 0.7 kg. This standardized form factor allows secure integration into system rack slots while maintaining structural reliability under operational environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FC81-A |
| Brand | Yokogawa |
| Product Type | Bus Communication Control Card |
| System Compatibility | Yokogawa CENTUM XL, Micro XL |
| Network Type | High-speed Fieldbus (HF) |
| Dimensions | 25.4 cm × 5.1 cm × 38.1 cm |
| Weight | 0.7 kg |
Frequently Asked Questions
Q: Which control systems are compatible with the FC81-A card? A: It is specifically engineered for use with Yokogawa CENTUM XL and Micro XL distributed control systems.
Q: What is the primary function of this module in a network? A: It facilitates high-speed, centralized data exchange between system controllers and High-speed Fieldbus (HF) devices.
