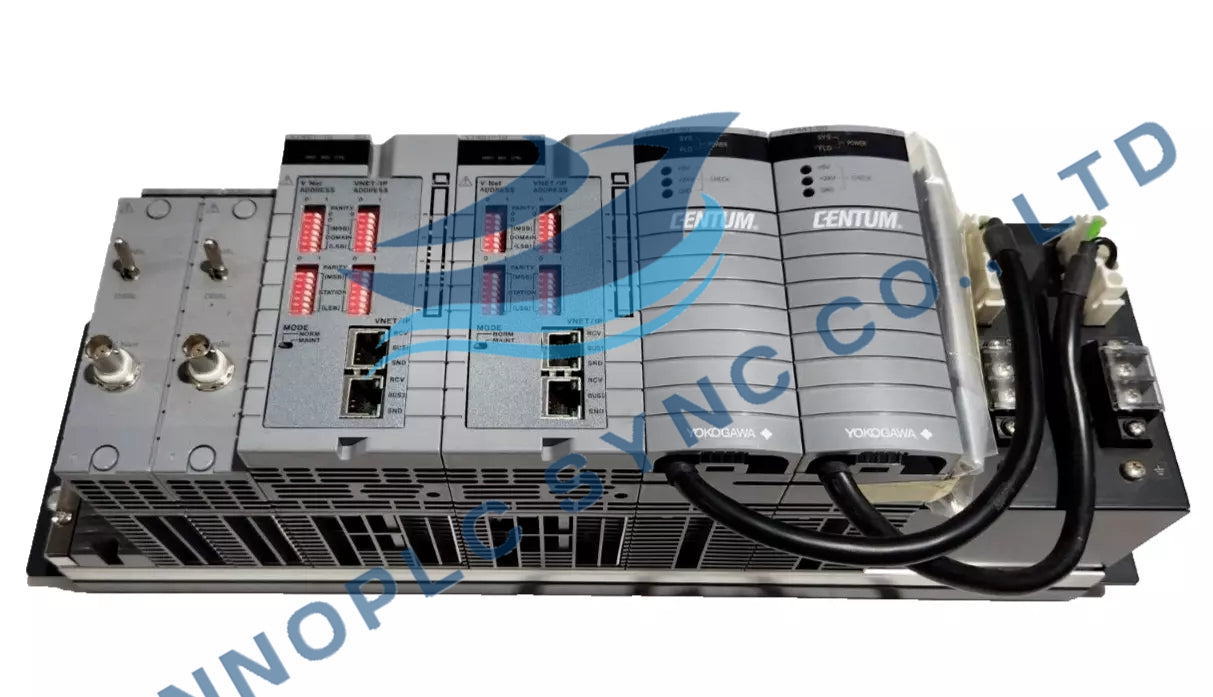

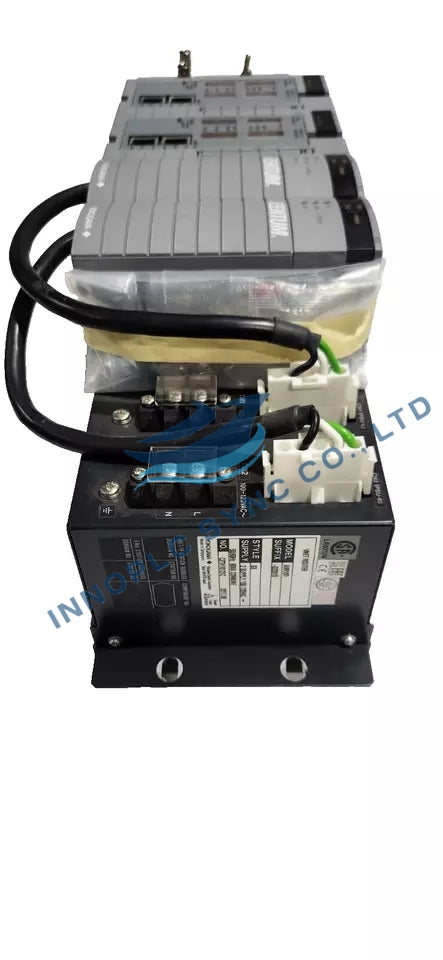

Yokogawa|AVR10D-Q22020|Duplexed Bus Converter

SKU: AVR10D-Q22020

Manufacturer: Yokogawa
Product No.: AVR10D-Q22020
Condition：In stock
Product Type: Duplexed Bus Converter
Product Origin: Japan
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description

The YOKOGAWA AVR10D-Q22020 is a duplexed bus converter designed for Yokogawa’s V net communication systems ensuring reliable data transmission in industrial control environments

Features

Facilitates duplexed communication for high reliability
Compact design for easy system integration
Supports stable operation in harsh conditions

Technical Specifications

General
Model: AVR10D-Q22020
Power Supply Voltage: 24 V DC ±10%
Power Consumption: 5 W maximum
Operating Temperature: 0 to 60°C
Storage Temperature: -20 to 70°C
Humidity: 5 to 95% RH (non-condensing)
Communication
Transmission Speed: 10 Mbps
Communication Protocol: V net (Yokogawa proprietary)
Maximum Distance: 500 m (without repeater)
Connector Type: RJ45 (dual ports for duplexing)
Data Transfer Rate: Up to 512 kbps per channel
Physical Characteristics
Dimensions: 130 mm (H) x 40 mm (W) x 120 mm (D)
Weight: Approximately 300 g
Mounting: DIN rail or panel mount
Enclosure Rating: IP20
Performance
Response Time: ≤ 5 ms under normal conditions
Data Capacity: 256 I/O points per module
Error Rate: < 0.005% at nominal load
Isolation Voltage: 1500 V AC (1 minute between ports)
Redundancy: Duplexed configuration for failover
Compliance
Safety Standards: IEC 61131-2 compliant
EMC: EN 61000-6-2 EN 61000-6-4 certified
Vibration Resistance: 5 to 150 Hz 2 G amplitude
Shock Resistance: 15 G (11 ms duration)
