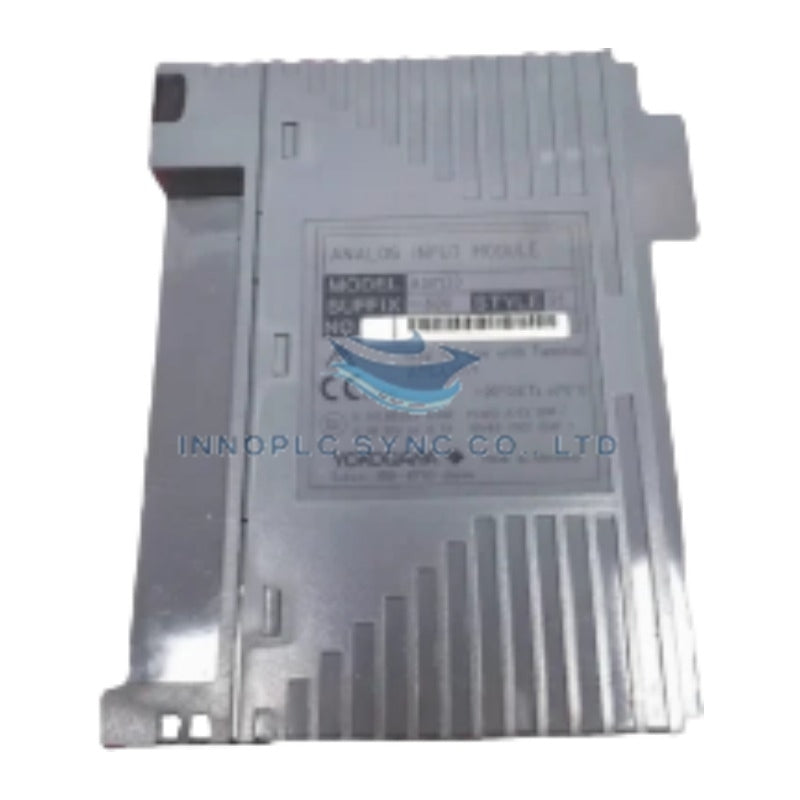

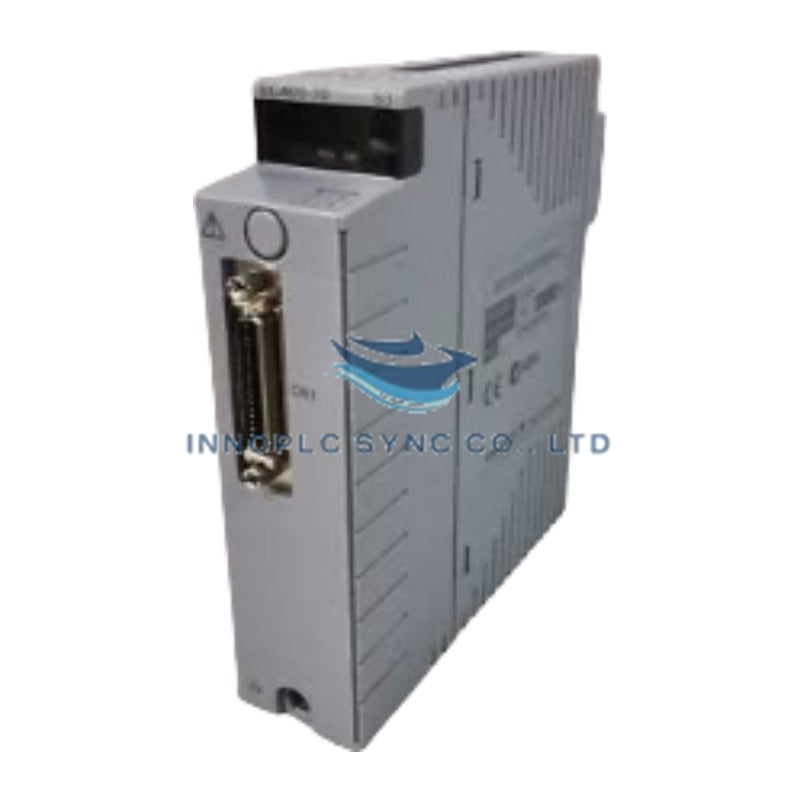

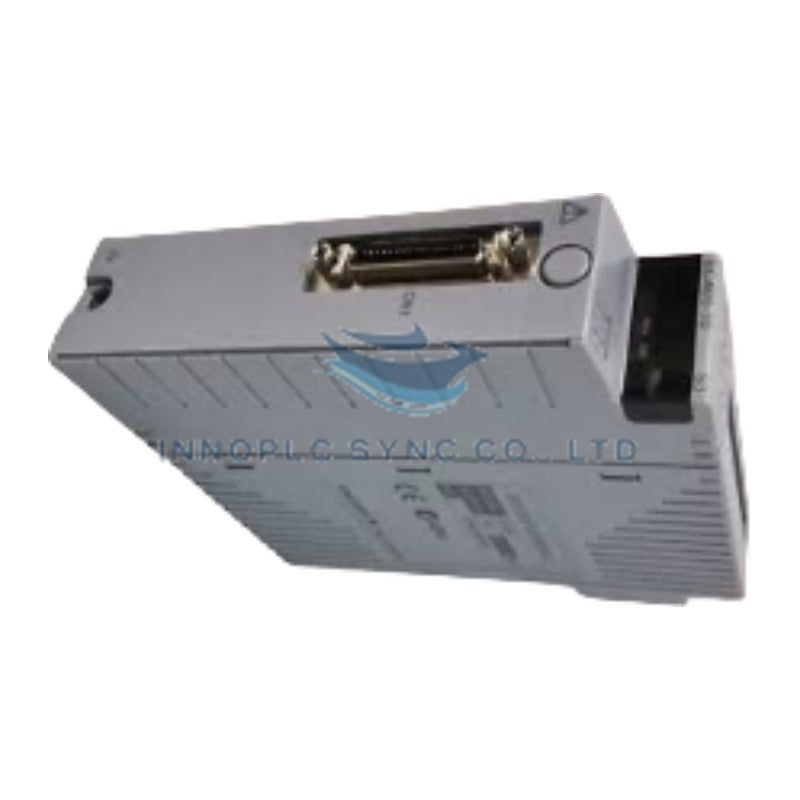

Yokogawa AMM22J Voltage Input Multiplexer Module
The Yokogawa AMM22J, also cataloged as the AMM22J Voltage Input Multiplexer Module, operates as a dedicated hardware component for multiplexed analog voltage signal acquisition within industrial DCS networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AMM22J |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 3 kg (Shipping) |
| Dimensions | Not specified in source data |
| Operating Temp | Not specified in source data |
| Power Consumption | Not specified in source data |
| Product Type | Voltage Input Multiplexer Module |
| Input Signal Type | Analog Voltage |
Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol
This multiplexer module executes sequential scanning of multiple analog voltage input channels, converting field voltage signals into digital data for DCS processing. Channel-to-channel isolation characteristics must be evaluated against system grounding topology, as multiplexed voltage architectures share common backplane references that may introduce ground loop currents when field grounds are at different potentials. The module supports integration with 4-20 mA HART loop protocol when interfacing with voltage-output HART transmitters through precision shunt resistors, enabling digital diagnostic data extraction alongside analog voltage measurement. Multiplexed scanning architecture reduces I/O module slot requirements while maintaining deterministic update timing for process control applications.
Frequently Asked Questions (FAQ)
Q: What is the shipping weight of the AMM22J module?
A: The AMM22J has a shipping weight of 3 kg, which includes packaging materials. Net module weight is not specified in available documentation.
Q: What type of input signals does this multiplexer module accept?
A: The AMM22J is configured for analog voltage input signals. Specific voltage ranges and channel count must be verified against the module's technical manual.
Q: Does this module provide channel-to-channel galvanic isolation?
A: Channel-to-channel isolation specifications are not provided in the available source data. System grounding requirements should be evaluated before deployment in applications with multiple field ground references.
Field Installation Guidelines
Mount the AMM22J module in the designated slot position per the DCS hardware manual. Ensure the backplane power supply is de-energized before inserting or removing the module. Route analog voltage signal cables in shielded twisted-pair configuration with the shield grounded at the DCS cabinet only to prevent ground loops. Verify voltage input range jumper settings match the configured field instrument output specifications before applying power. Perform signal calibration verification on each multiplexed channel prior to commissioning. Maintain adequate clearance around the module for thermal dissipation. Confirm all field wiring connections are secure and properly terminated before energizing the system.
