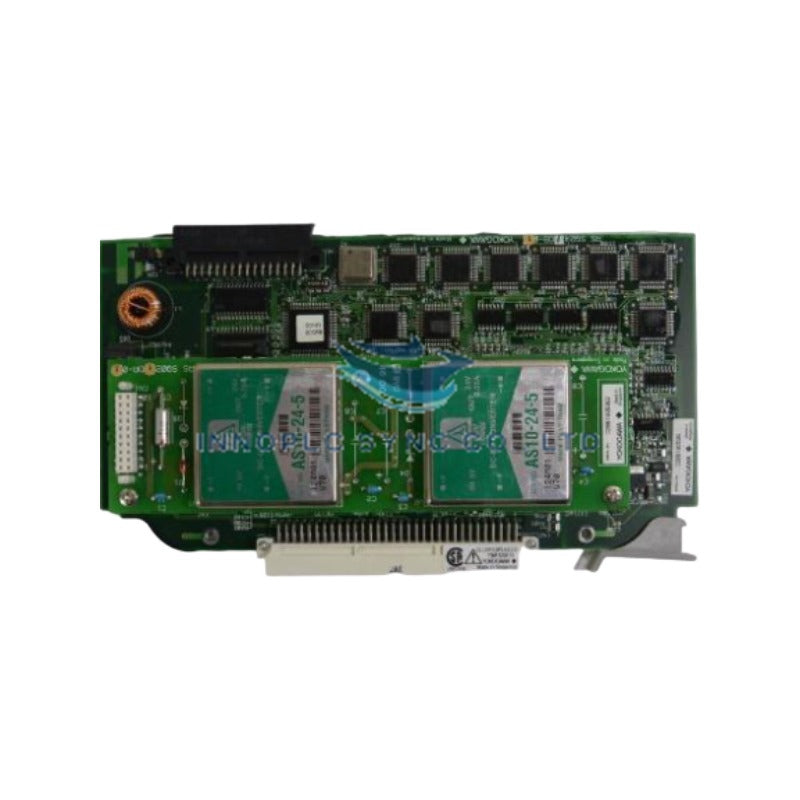

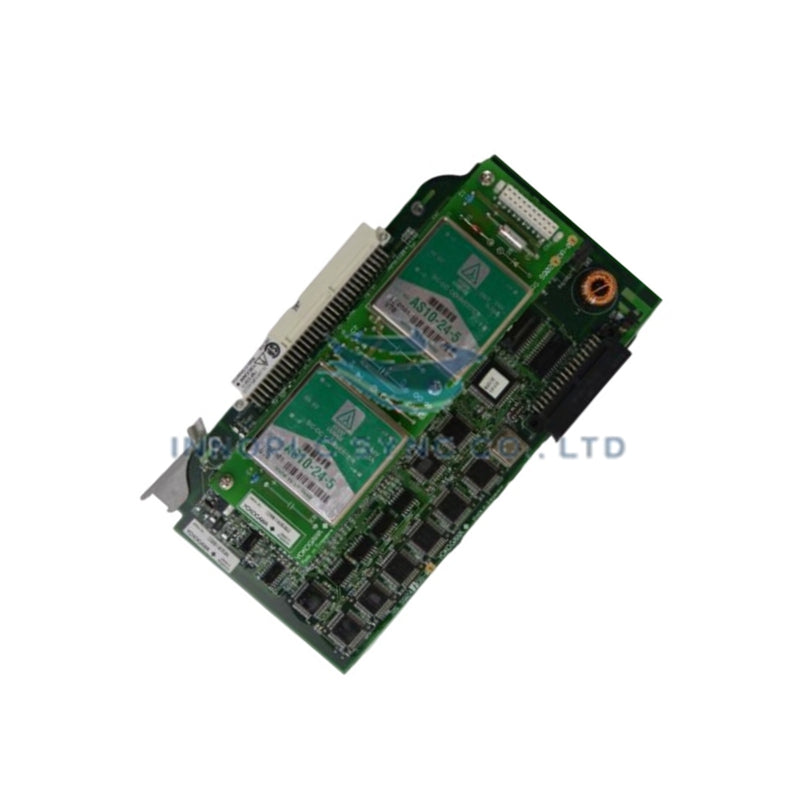

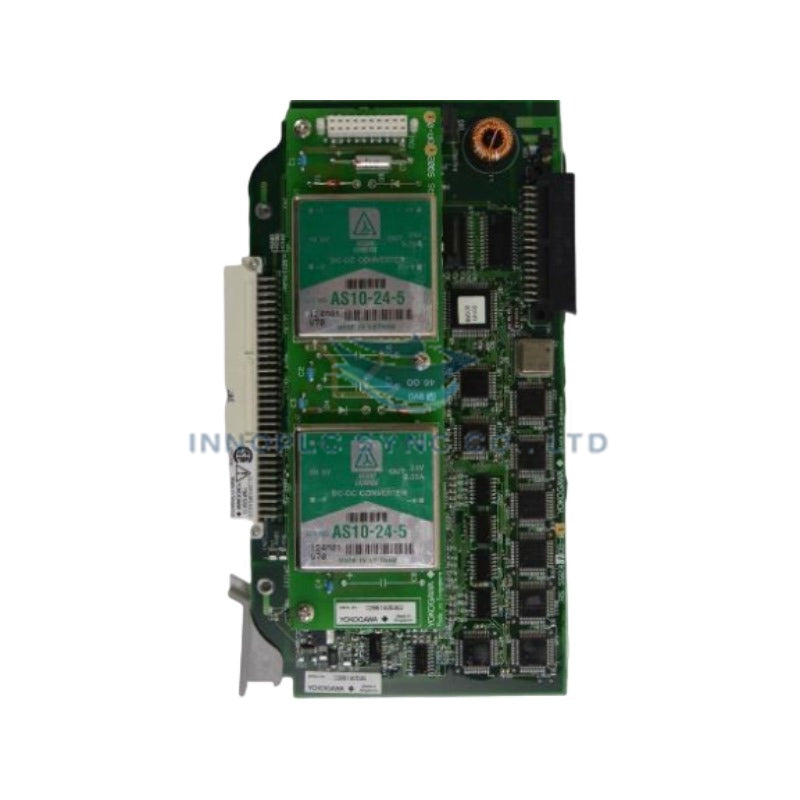

Yokogawa AMM12 Voltage Input Multiplexer Module
Configured for analog voltage multiplexing in Centum CS and Centum VP platforms, the Yokogawa AMM12, also cataloged as the AMM12 Voltage Input Multiplexer Module, provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AMM12 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.1 kg |
| Dimensions | 2.5 cm x 22.9 cm x 7.6 cm |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | 2.5 W |
| Signal Input Type | Voltage Input |
| System Compatibility | Centum CS, Centum VP |
| Electrical Isolation | Channel-to-system galvanic isolation |
Channel-to-Channel Isolation and Analog Conditioning
The Yokogawa AMM12 module incorporates channel-to-channel isolation to prevent ground loops and common-mode voltage interference across distributed analog input channels. Integrated signal conditioning circuitry delivers precise cold junction compensation (CJC) compatibility and multi-channel switching efficiency. By isolating the individual voltage input signals prior to system bus conversion, the module ensures high signal integrity and noise rejection across high-density I/O sub-racks in continuous process control environments.
Frequently Asked Questions
Q: What precautions should be taken regarding live insertion or hot-swapping of the AMM12 module?
A: Module removal or insertion must be executed only when the corresponding rack slot is powered down or configured for redundant hot-swap operations per Yokogawa Centum guidelines to prevent voltage transients on the I/O bus.
Q: How does the AMM12 handle channel-to-channel isolation under high common-mode voltages?
A: The AMM12 provides galvanic channel-to-system isolation designed to withstand standard industrial common-mode spikes, ensuring that signal distortion on one channel does not compromise neighboring channels on the multiplexer.
Field Installation Guidelines
- Ensure the sub-rack power supply is isolated before inserting or removing the AMM12 module from the card cage.
- Verify that all field wiring cables use shielded twisted-pair conductors to minimize electromagnetic interference.
- Ground the cable shielding at a single point on the system side chassis ground bar following standard EMC wiring procedures.
- Maintain a minimum bending radius for signal cables and route low-voltage analog lines away from high-voltage power conduits.
- Secure all terminal block mounting screws to ensure reliable mechanical connection and stable contact resistance.
