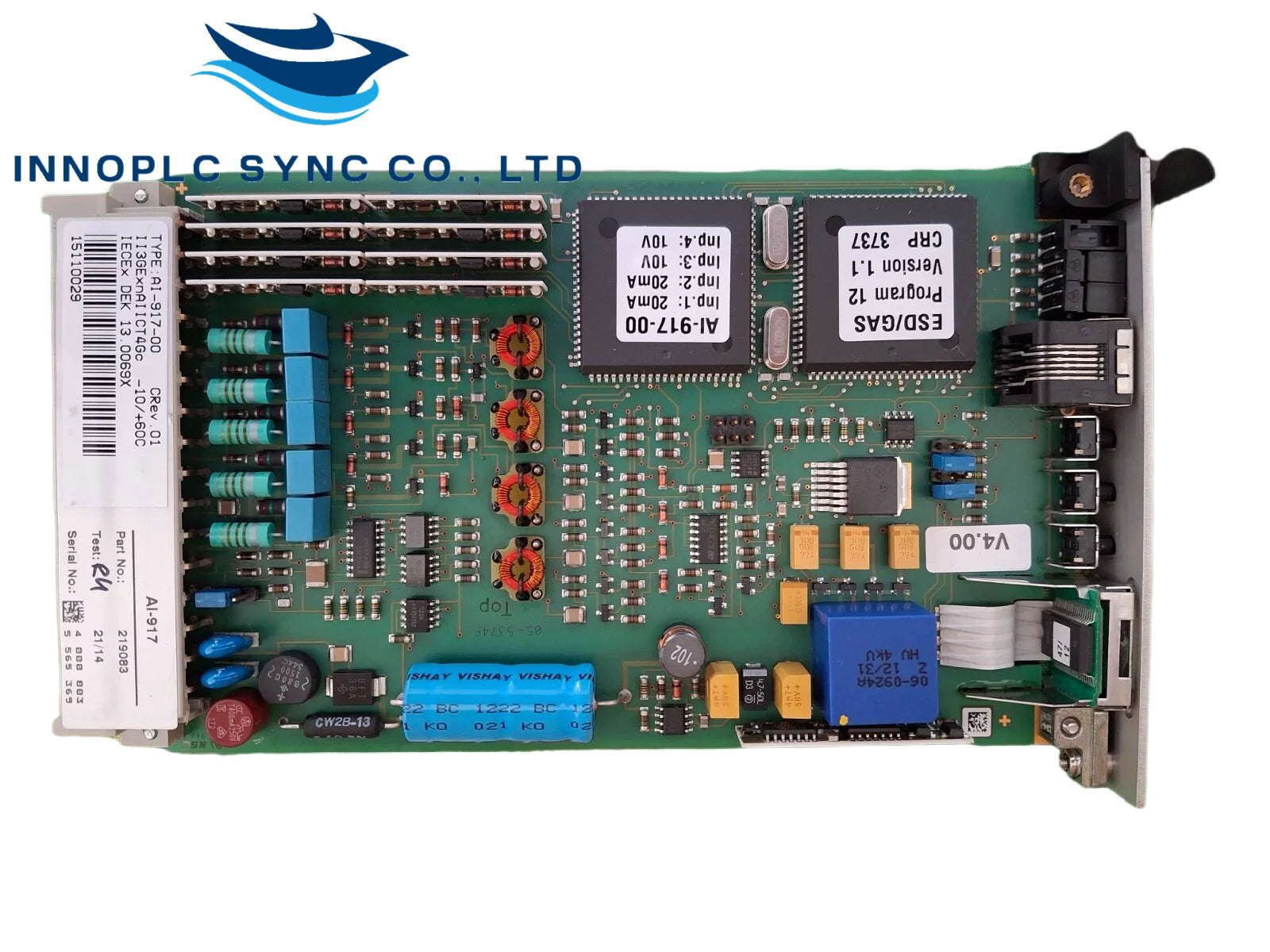

Yokogawa | AI-917-00 | Analogue Input Module (2x 0-20 mA, 2x 0-10 V)

SKU: AI-917-00

Manufacturer: Yokogawa
Product No.: AI-917-00
Condition：In stock
Product Type: Analogue Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Specification	Details
No. of Inputs	4
No. of Outputs	4
Size	Single Euro format 4TE (160x100x20 mm)
Connector	DIN 41612 Bauform F 48p

General Specifications

Specification	Details

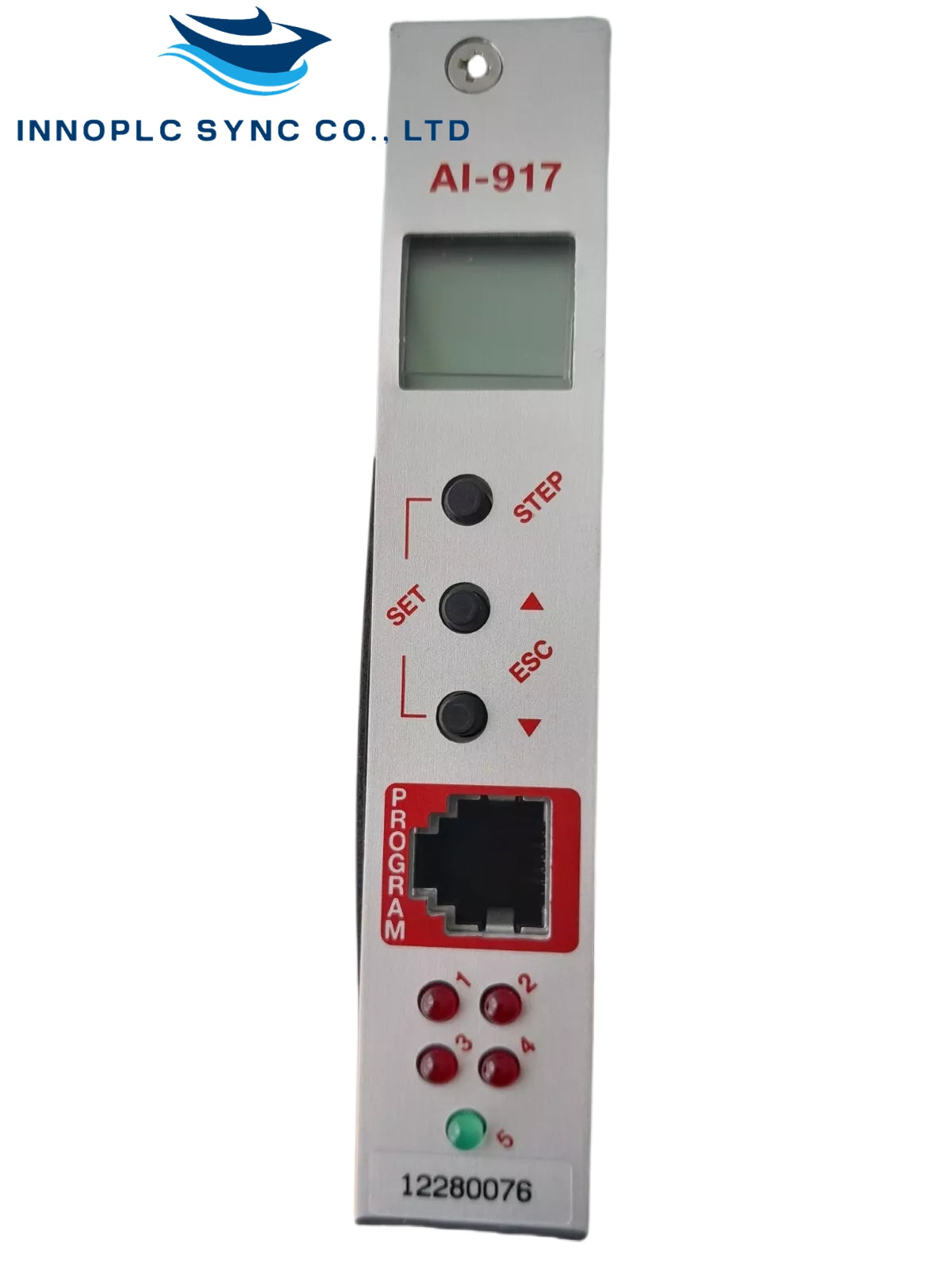

Identification	AI-917 on front
Working Temperature	-10 to +60 °C
Storage Temperature	-25 to +85 °C
Relative Humidity	Max. 75%, no condensation
EMI	NAMUR AK, EMV DIN IEC 801-2-5
Shock	15g, 11 ms

Environmental Specifications

Specification	Details
Vibration	10-55 Hz 0.075 mm, 57-150 Hz 1 g (0.076-0.011 mm)
Current	0 - 20 mA, 50 Ω (max. 50 mA)
Voltage	0 - 10 V, 5.5 kΩ (max. 30 V)
Switches	3, partly programmable
Stability Error	< 0.1% / 10°C
Accuracy	± 0.2% ± 1 bit
Resolution	1024 points over 21.6 mA / 10.8 V (10 bits)
LED Test	18-30 V / 3.5-6 mA

Input Specifications

Specification	Details
Clock	Clock pulses from MC-573, level 0/11 V
Pulse Logic	Current pulses 500 mA
Capacity	10 unit loads
Status Indication	Programmable LEDs
Data	8 bits serial data, level 0/11 V
Display	LCD, programmable, 2 rows
First Row	Numeric value
Second Row	1 alpha, 2 numeric characters

Output Specifications

Specification	Details
RS232 Serial Interface	For programming only (adapter cable necessary)
Start-up Time	8 s
Program Cycle	40 ms (program dependent)
Propagation Delay	Programmable

Supply Specifications

Specification	Details
Field Supply	18-30 Vdc (ripple < 1 V top-top), 70 mA (24 V)
Logic Supply	20 Vdc, 10 mA
Clock Signal	A voltage pulse

Isolation

Specification	Details
Analog Circuit	0.5 kV (test)

Dissipation

Specification	Details
Power Dissipation	2 W

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
