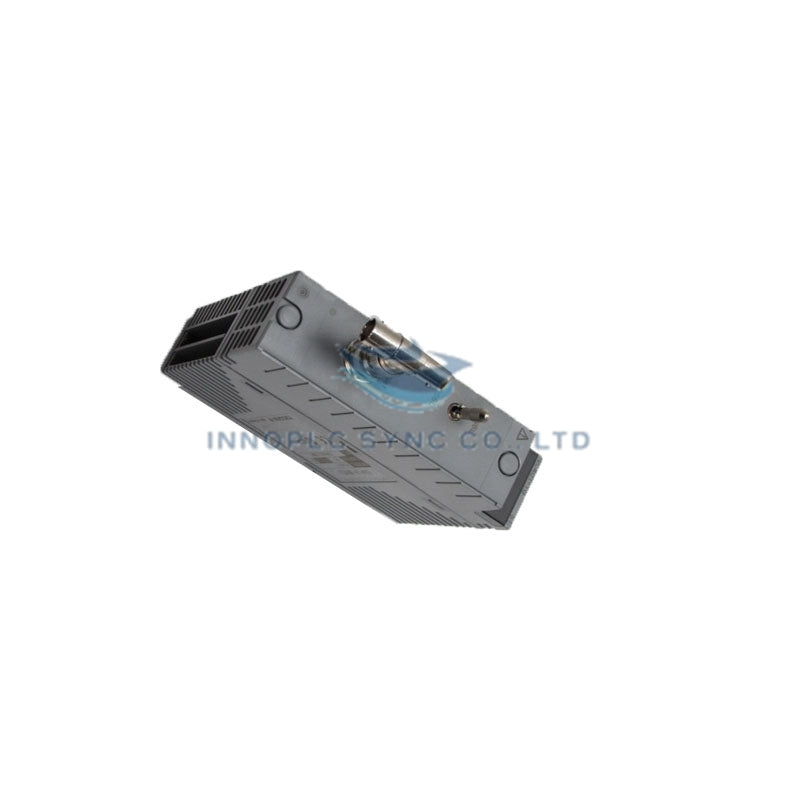

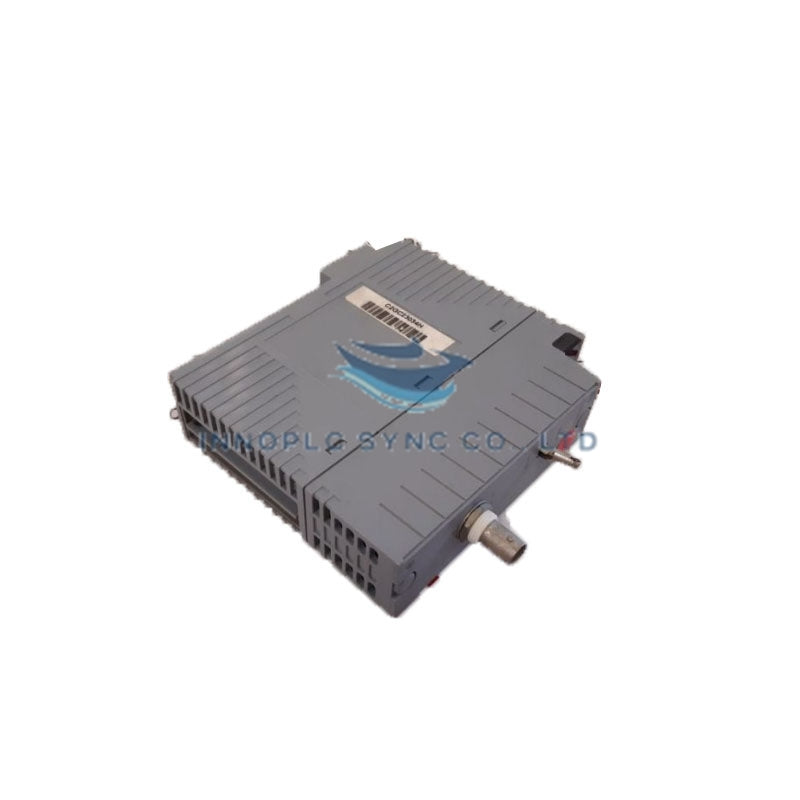

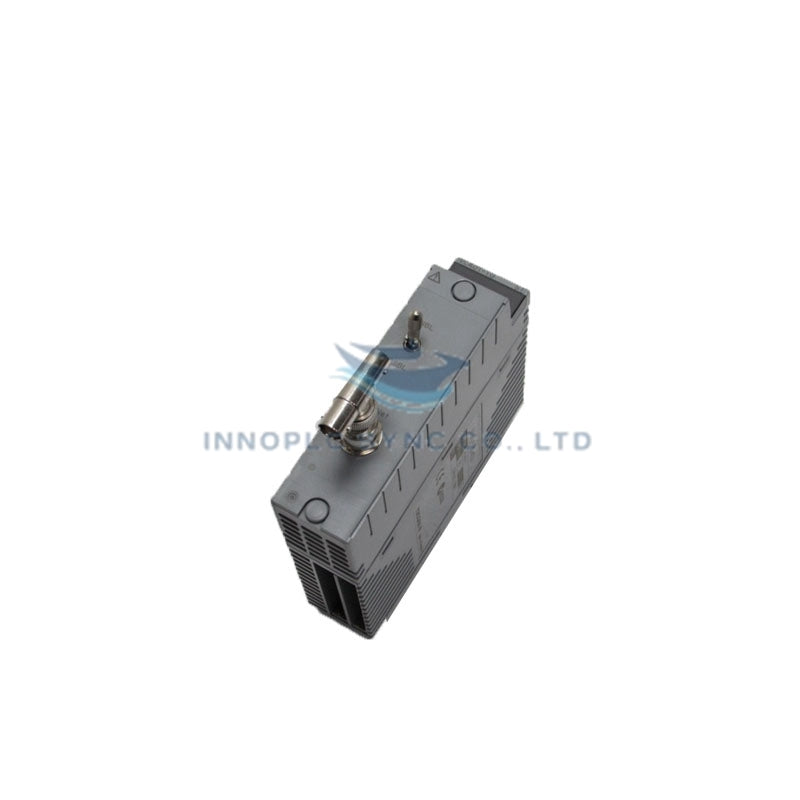

Yokogawa AAI543-H00 S1 S1 Analog Output Card
The Yokogawa AAI543-H00 S1, also cataloged as the AAI543-H00 S1 Analog Output Module, operates as a dedicated hardware component for 16-channel isolated current and voltage control signal generation within CENTUM VP DCS architectures. It executes analog output commands across 4-20 mA DC or 1-5 V DC loops with a conversion accuracy of 0.1% of full scale.
Suffix Breakdown & Model Matrix
- AAI543: Base hardware platform for 16-channel isolated analog output processing.
- -H00: Integrated HART communication support and standard industrial configuration without special coating variants.
- S1: Hardware Revision Style 1, representing the baseline manufacturing release for isolated multi-channel output circuitry.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H00 S1 |
| Brand | Yokogawa |
| Origin | Standard Industrial Manufacturing |
| Weight | Standard DCS Module Weight |
| Dimensions | 100 mm x 80 mm x 35 mm |
| Operating Temp | Standard Industrial Cabinet Limits |
| Power Consumption | Powered via CENTUM VP Backplane Bus |
| Number of Channels | 16 |
| Input Signal | 4 to 20 mA DC or 1 to 5 V DC |
| Input Range | -10 to 130 V |
| Conversion Accuracy | 0.1% of full scale |
| Conversion Time | 2 ms |
| HART Communication | Supported |
4-20 mA HART Loop Protocol and CJC Loop Integration
The module incorporates HART protocol communication superimposed over the 4-20 mA output loops, enabling remote configuration and real-time diagnostics of connected final control elements. Individual channel isolation prevents ground loops and electrical interference from propagating through actuator control circuits. Cold junction compensation (CJC) and precise internal digital-to-analog conversion maintain loop stability across demanding process environments.
Frequently Asked Questions
Q: Does the module support live replacement (hot-swapping) in a running CENTUM VP rack?
A: Yes, the module supports hot-swappable operation, allowing technicians to replace the hardware under power provided that redundant or safe-state control strategies are active to maintain loop integrity during extraction.
Q: How do the individual isolated output channels manage common-mode voltage fluctuations?
A: Each channel utilizes galvanic isolation barriers rated to prevent circulating ground currents, ensuring that common-mode voltage differences between field actuators and the DCS backplane do not degrade control signal accuracy.
Field Installation Guidelines
- Mount the module into the designated CENTUM VP node slot, verifying that backplane connector pins align correctly prior to securing the locking mechanism.
- Terminate output signal cables using shielded twisted pairs, connecting the shield drain wire to the designated marshalling cabinet earth bar to reduce electromagnetic interference.
- Ensure that external loop power supplies remain within specified operating tolerances before energizing connected control valves and actuators.
