Schneider Electric|TSX3722101|Modular Base Controller

SKU: TSX3722101

Manufacturer: SCHNEIDER
Product No.: TSX3722101
Condition：In stock
Product Type: Modular Base Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Schneider Electric TSX3722101 Modular Base Controller

Description

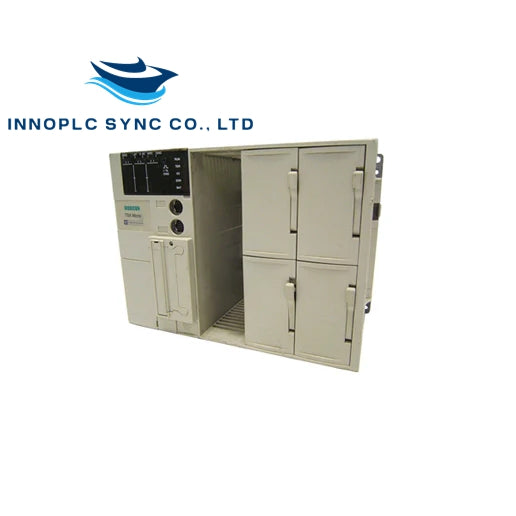

The Schneider Electric TSX3722101 is a modular base controller within the Modicon TSX Micro automation platform, designed for compact industrial control applications.

Features
Compact 3-slot modular controller with integrated real-time clock, serial communication links, and robust environmental tolerance. Supports high-speed tasks and event-driven processing.

Technical Specifications
Power & Current

Supply Voltage: 24 V DC (19.2–30 V)
Input Current: 2 mA
Immunity to Microbreaks: 10 ms
Total Secondary Power: 16 W

Memory

Flash Memory: 15 Kwords (data)
Internal RAM: 20 Kwords (data)
Expandable RAM: 128 Kwords (program and data) with PCMCIA
Data Storage RAM: 128 Kwords

Processing Performance

Boolean Instruction Time: 0.13 µs (without PCMCIA), 0.19 µs (with PCMCIA)
REAL Arithmetic Time: 4.5 µs (both with and without PCMCIA)
1 K Instruction Execution: 5.88 ms (100% Boolean, no PCMCIA), 4 ms (with PCMCIA), 0.266 ms (65% Boolean + 35% numerical, with PCMCIA)

I/O & Connectivity

Analog Inputs: 8 channels, 0–10 V
Analog Outputs: 1 channel, 0–10 V
Counting Inputs: 1 discrete incremental counter, 10 Hz
Integrated Links: 1 serial (TER/AUX), Uni-Telway @ 19.2 kbit/s; 1 Modbus RTU @ 19.2 kbit/s

System & Environment

Tasks: 1 master, 16 event, 1 fast task
System Overhead: 2.3 ms (master task)
Operating Temperature: 0–60 °C
Storage Temperature: -25–70 °C
Humidity: 10–95% (non-condensing)
Altitude: Up to 2000 m

Mechanical

Dimensions: 341.4 mm (W) × 151 mm (H) × 152 mm (D)
Net Weight: 1.75 kg
