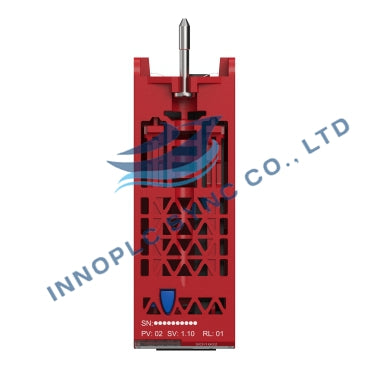

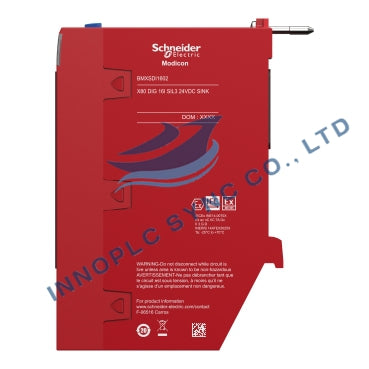

SCHNEIDER|BMXSDI1602| 16-Channel Non-Isolated Discrete Input Module

SKU: BMXSDI1602

Manufacturer: SCHNEIDER
Product No.: BMXSDI1602
Condition：In stock
Product Type: 16-Channel Non-Isolated Discrete Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 75g
Shipping port: Xiamen
Warranty: 12 months

Description
Schneider BMXSDI1602 is a 16-channel non-isolated discrete input module for Modicon X80, designed with positive logic and current sink inputs for industrial applications.

Features

Compatible with 2-wire/3-wire proximity sensors
Supports input paralleling
Equipped with reverse polarity and overload protection
Features conformal coating for harsh environments

Technical Specifications

Input characteristics:
- Voltage: 24 V DC (logic positive)
- Current: 3.2 mA per channel
- Input impedance: 7500 Ω
- Sensor supply voltage: 19…30 V DC
- State detection thresholds:
  - < 14 V DC = sensor fault
  - 18 V DC = sensor OK
Performance:
- Response time: 6 ms (typ/max)
- Power dissipation: 3.57 W
- MTBF: 265,000 hours
Protection:
- Reverse polarity protection
- External fuse: 0.5 A fast blow
Current consumption:
- 256 mA @ 3.3 V DC
- 100 mA @ 24 V DC
Environmental:
- Operating temperature: -25…60 °C
- Storage temperature: -40…85 °C
- Humidity: 5–95 % RH @ 55 °C (non-condensing)
- Altitude: up to 2000 m (derated up to 5000 m)
- Gas/dust/salt resistance: Gx, 3C4, 3S4, level 2
Mechanical & Compliance:
- Weight: 0.115 kg
- IP rating: IP20
- Dielectric strength: 1500 V AC (primary/secondary)
- Vibration: 3 gn
- Shock: 15 gn
- Standards: IEC 60947-5-2
- Certifications: CE, UL, CSA, RCM, EAC
Status indicators:
- 1 green RUN LED
- 1 green LED per channel
- 1 red ERR LED
- 1 red I/O error LED
Packaging:
- PCE unit: 1 pc/box, 5.5 x 18 x 26 cm, 338 g
- S03 carton: 8 pcs/box, 30 x 30 x 40 cm, 3.3 kg
