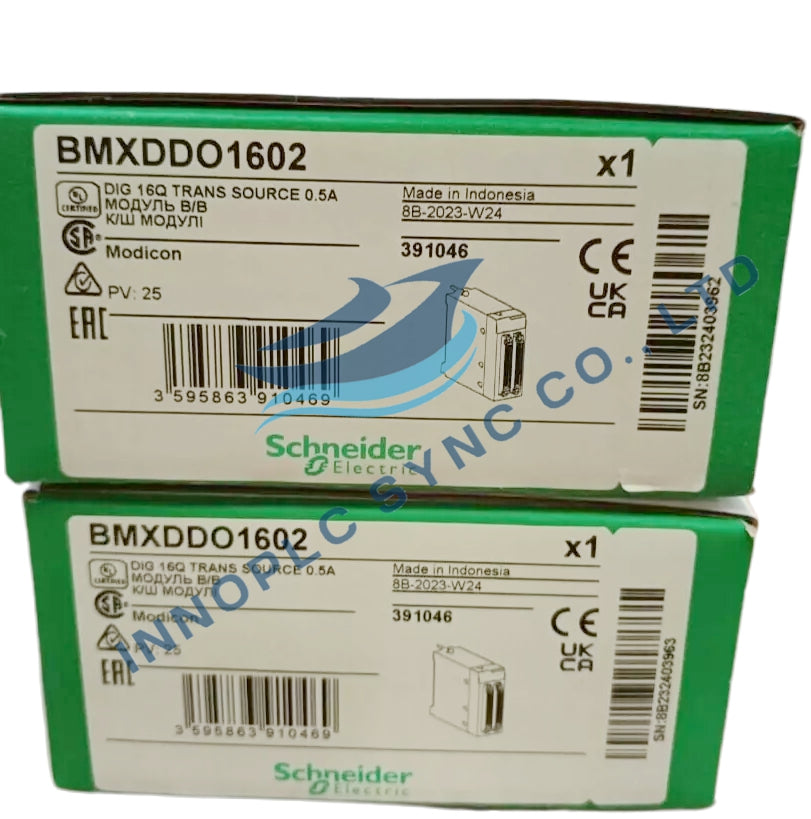

SCHNEIDER|BMXDDO1602|16-Channel Solid-State Discrete Output Module

SKU: BMXDDO1602

Manufacturer: SCHNEIDER
Product No.: BMXDDO1602
Condition：In stock
Product Type: 16-Channel Solid-State Discrete Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 75g
Shipping port: Xiamen
Warranty: 12 months

Description
Schneider BMXDDO1602 is a 16-channel solid-state discrete output module for Modicon X80, compliant with IEC 61131-2.

Features

Positive logic 24 V DC solid-state outputs
Supports paralleling up to 2 outputs
Built-in protections: short-circuit, overload, overvoltage, reverse polarity
Integrated diagnostics and status LEDs per channel

Technical Specifications

Output specifications:
- Voltage: 24 V DC (19…30 V operating)
- Current per channel: 0.5 A (max 0.625 A)
- Total max current: 10 A
- Leakage current: < 0.5 mA at OFF state
- Voltage drop: < 1.2 V at ON state
- Insulation resistance: > 10 MΩ at 500 V DC
Performance:
- Power dissipation: 4 W
- Response time: 1.2 ms
- MTBF: 410,000 hours
- Switching frequency: 0.5 / LI² Hz
Protection features:
- Electronic circuit breaker: 1.5 In < Id < 2 In
- Overvoltage protection: Transil diode
- Short-circuit protection: 2 A external fuse
- Reverse polarity protection: Diode integrated
Indicators:
- 1 green RUN LED
- 1 green LED per channel
- 1 red ERR LED
- 1 red I/O error LED
Environmental:
- IP rating: IP20
- Operating temperature: 0…60 °C
- Storage temperature: -40…85 °C
- Humidity: 5…95 % RH at 55 °C (non-condensing)
- Altitude: up to 2000 m (derated up to 5000 m)
Mechanical:
- Weight: 0.12 kg
- Dimensions: not specified
Compliance:
- Standards: IEC 61131-2, 1500 V AC dielectric strength
- Directives: 2014/35/EU, 2014/30/EU
- Certifications: CE, UL, CSA, RCM
Packaging:
- PCE unit: 1 pc/box, 5.6 x 11 x 12 cm, 145 g
- S02 carton: 15 pcs/box, 15 x 30 x 40 cm, 2.516 kg
