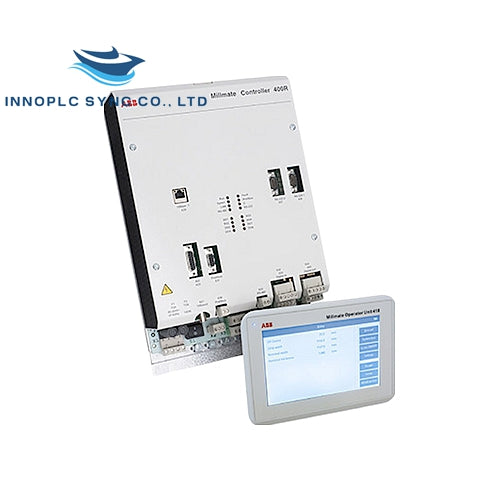

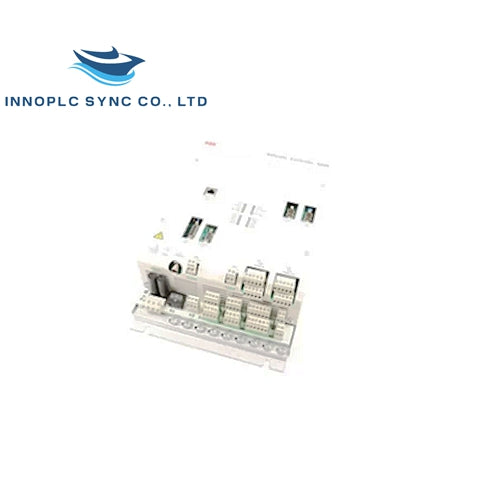

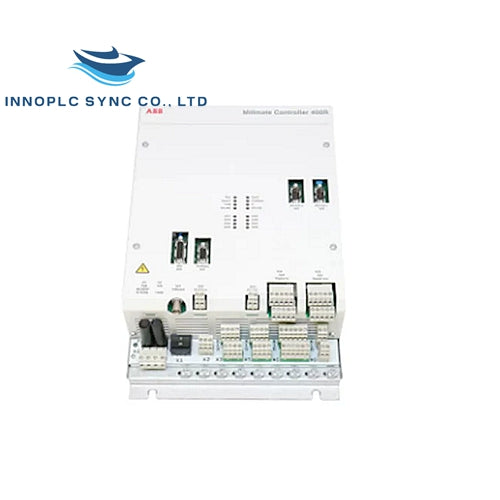

PFXA401 | ABB | Millmate Controller 400

SKU: PFXA401

Manufacturer: ABB
Product No.: PFXA401
Condition：In stock
Product Type: Millmate Controller 400
Product Origin: USA
Payment:T/T, Western Union
Weight: 5000g
Shipping port: Xiamen
Warranty: 12 months

Technical Specifications

Properties	Specifications
External Connections	2 analog inputs for nominal thickness and nominal width setup
	4 analog outputs, voltage or current
	8 digital inputs for control signals
	8 digital outputs
	+24 V supply for external units, max. 0.5 A
	Ethernet connection to:
	- other Millmate control and operator unit
	- other control systems with VIP protocol
	2 serial interfaces of type RS-232 for external displays, control, etc.
	High-speed fieldbus (optional)
Dimensions (H x W x D)	380 x 235 x 90 mm
Weight	5 kg
Protection Class	IP 20
Mains Voltage	85 - 264 V
Power Consumption	140 VA
Operation Temperature	0 to +70°C
Storage Temperature	-40 to +70°C
Analog Inputs	0 - 10 V, ±10 V differential inputs
Analog Outputs	Voltage: 0 - ±10 V
	Current: 0 - ±20 mA, 4 - 20 mA, insulated as group
	Step Response: 20 ms (0 - 90%)
Digital Inputs	0/+24 V, insulated 4 + 4
Digital Outputs	0/+24 V, insulated 4 + 4
