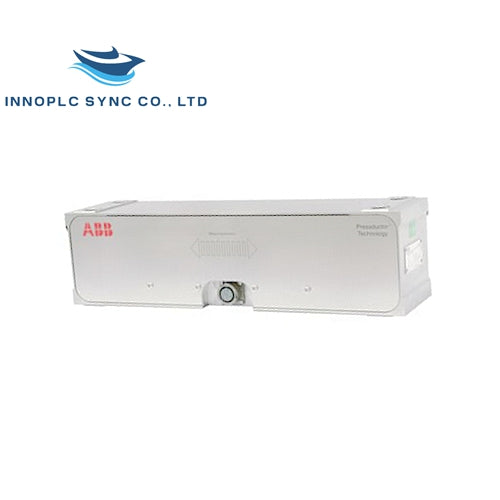

PFTL201CE | ABB | Load Cell

SKU: PFTL201CE

Manufacturer: ABB
Product No.: PFTL201CE
Condition：In stock
Product Type: Load Cell
Product Origin: USA
Payment:T/T, Western Union
Weight: 3200g
Shipping port: Xiamen
Warranty: 12 months

Key Specifications

Specification	Units	Value 1	Value 2	Value 3
Nominal Load (Rated Capacity)
	kN	10.0	20.0	50.0
	Lbs.	2250	4500	11250
Extended Load
	kN	15.0	30.0	75.0
	Lbs.	3375	6750	16875
Permitted Load
- Transverse Direction	kN	100.0	200.0	250.0
- (Vertical) h=300 mm	Lbs.	22500	45000	56250
Overload Capacity
- Measurement Direction
- (Horizontal)	kN	100.0	200.0	500.0
	Lbs.	22500	45000	112500
- Transverse Direction
- (Vertical) h=300 mm	kN	100.0	200.0	250.0
	Lbs.	22500	45000	56250
Deflection
	mm	0.010	0.020	0.050
	1/1000 inch	0.4	0.8	2.0
Spring Constant	kN/mm	1000	1000	1000
	1000 Lbs./inch	5720	5720	5720

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
