PFCL241SEE | ABB | Load Cell

SKU: PFCL241SEE

Manufacturer: ABB
Product No.: PFCL241SEE
Condition：In stock
Product Type: Load Cell
Product Origin: USA
Payment:T/T, Western Union
Weight: 3800g
Shipping port: Xiamen
Warranty: 12 months

Overview

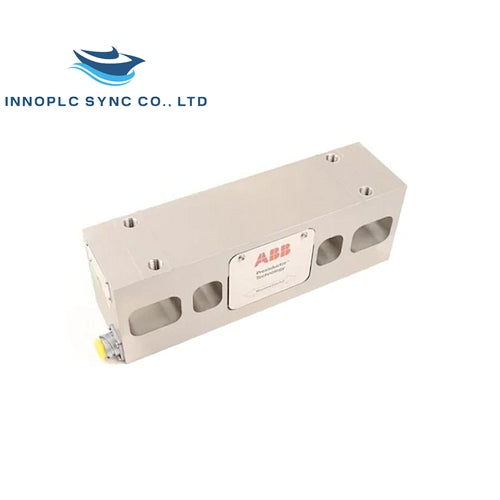

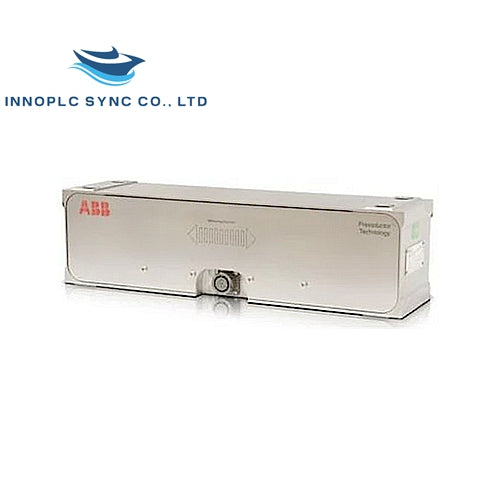

The ABB PFCL241SEE is a robust load cell designed for high-tension applications in industrial settings, particularly in rolling mills and process lines.

Key Specifications

Specification	Value
Nominal Load	200 kN (45000 lbs)
Permitted Transverse Load	100 kN (22500 lbs)
Extended Load in Measuring Direction	300 kN (67500 lbs)
Overload Capacity
- In Measurement Direction	1000 kN (225000 lbs)
- In Transverse Direction	500 kN (112500 lbs)
Deflection at Nominal Load	0.020 mm (0.8/1000 inch)
Spring Constant	10000 kN/mm (57200 lbs/inch)
Material	Solid stainless steel

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
