Operator Interfaces | Allen-Bradley 2711P-B6C5D
The 2711P-B6C5D is an Allen-Bradley PanelView Plus 600 graphic operator interface terminal designed for industrial control and monitoring applications. It combines a 5.7-inch color active-matrix TFT LCD display with dual keypad and touchscreen entry, allowing operators to monitor equipment status, adjust process variables, and manage alarms across automated manufacturing systems.
Visualization and Dual Operator Input
The terminal features a 320 x 240 resolution color TFT screen with an active display area of 112 x 84 mm (4.4 x 3.3 inches) supporting 18-bit color graphics. Interaction is provided through both an analog resistive touchscreen and a physical keypad containing ten configurable function keys (F1–F10), numeric inputs, and navigation controls rated for 1 million presses.
Communication Interfaces and Power Requirements
Built-in connectivity includes an RS-232 serial communication port and USB host ports for data exchange with automation controllers and local peripheral devices. The unit operates on a 24 VDC nominal supply voltage within an acceptable input range of 18 to 32 VDC, consuming a maximum power of 25 W (1 A at 24 VDC).
Physical Design and Installation Specifications

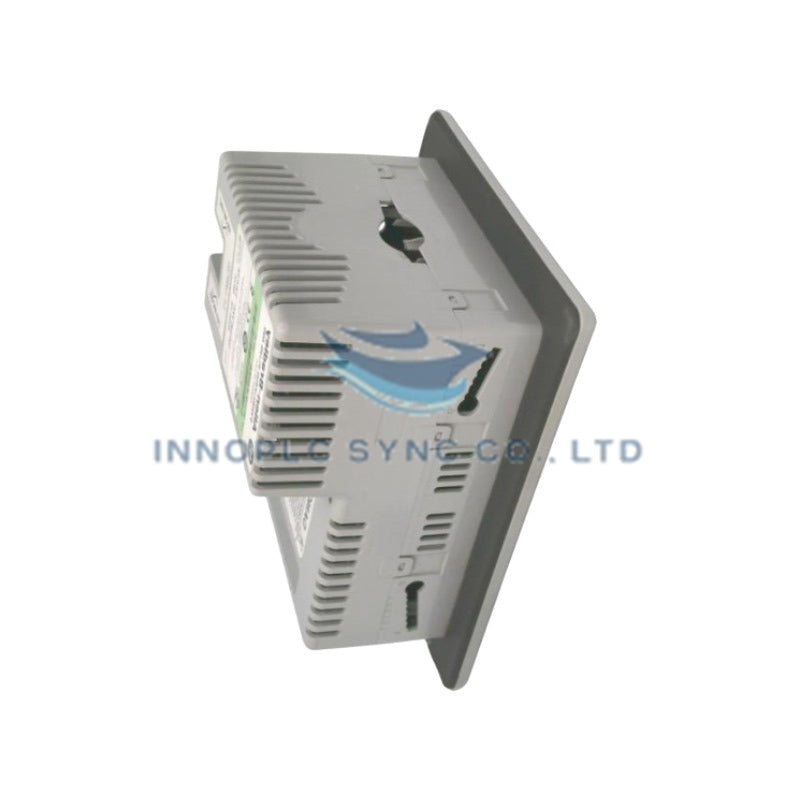

Designed for panel mounting, the module installs into enclosure cutouts measuring 142 mm high by 241 mm wide. To ensure adequate heat dissipation, mounting clearances require at least 51 mm (2 inches) at the top, 102 mm (4 inches) at the bottom, and 25 mm (1 inch) on the sides. When properly flush-mounted, it maintains environmental protection ratings up to NEMA 12, 13, 4X (indoor), IP54, and IP65.
| Parameter | Specification |
|---|---|
| Model | 2711P-B6C5D |
| Brand | Allen-Bradley |
| Product Line | PanelView Plus 600 |
| Display Type | Color Active-Matrix TFT LCD |
| Display Size | 5.7 inches |
| Display Area | 112 x 84 mm (4.4 x 3.3 inches) |
| Resolution | 320 x 240 pixels |
| Operator Input | Keypad (F1-F10) and Touchscreen |
| Communication Ports | RS-232, USB |
| Input Voltage | 24 VDC nominal (18 to 32 VDC range) |
| Power Consumption | 25 W max (1 A at 24 VDC) |
| Operating Temperature | 0 to 55 deg C (32 to 131 deg F) |
| Storage Temperature | -25 to 70 deg C (-13 to 158 deg F) |
| Relative Humidity | 5 to 95% non-condensing |
| Vibration / Shock | 2 g (57-500 Hz) / 15 g at 11 ms |
| Dimensions | 167 x 266 x 98 mm (6.58 x 10.47 x 3.86 inches) |
| Weight | 930 g (2.05 lbs) |
Frequently Asked Questions
Q: What panel cutout and clearance dimensions are required to install the 2711P-B6C5D? A: The required panel cutout dimensions are 142 mm (5.61 inches) in height and 241 mm (9.50 inches) in width. Recommended minimum clearances for proper airflow are 51 mm (2 inches) at the top, 102 mm (4 inches) at the bottom, and 25 mm (1 inch) on the sides.
Q: What type of power supply does the 2711P-B6C5D require? A: The terminal operates on a DC power source with a nominal rating of 24 VDC and an allowable operating range of 18 to 32 VDC, drawing up to 25 W (1 A at 24 VDC).
Q: What environmental protection ratings are supported by this operator interface? A: When correctly flush-mounted into a suitable enclosure, the terminal meets NEMA Type 12, 13, 4X (indoor use only), IP54, and IP65 ratings.
