operator interface terminal | Allen-Bradley 2711-K6C5

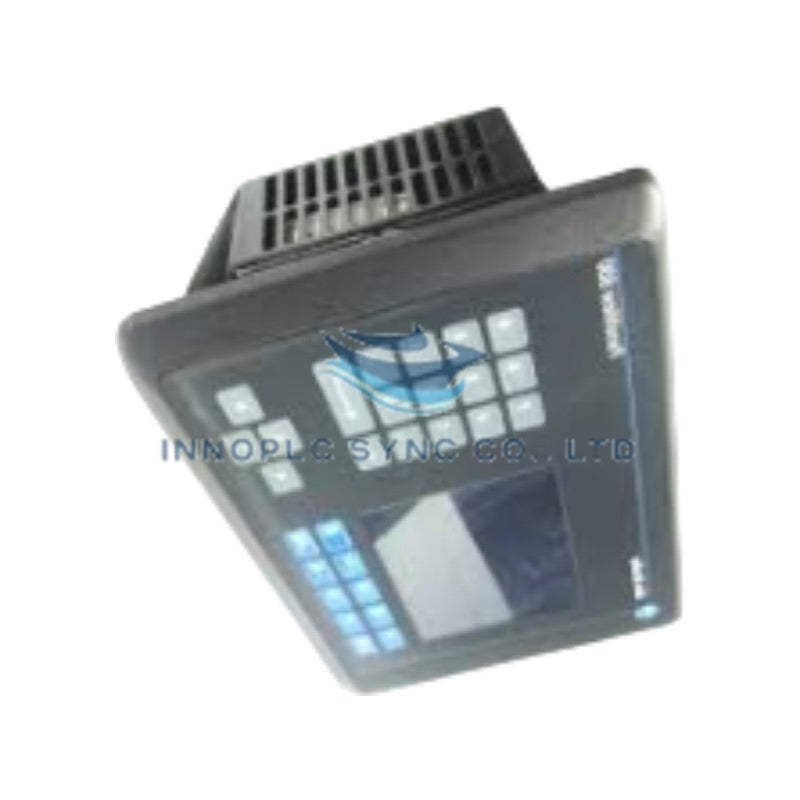

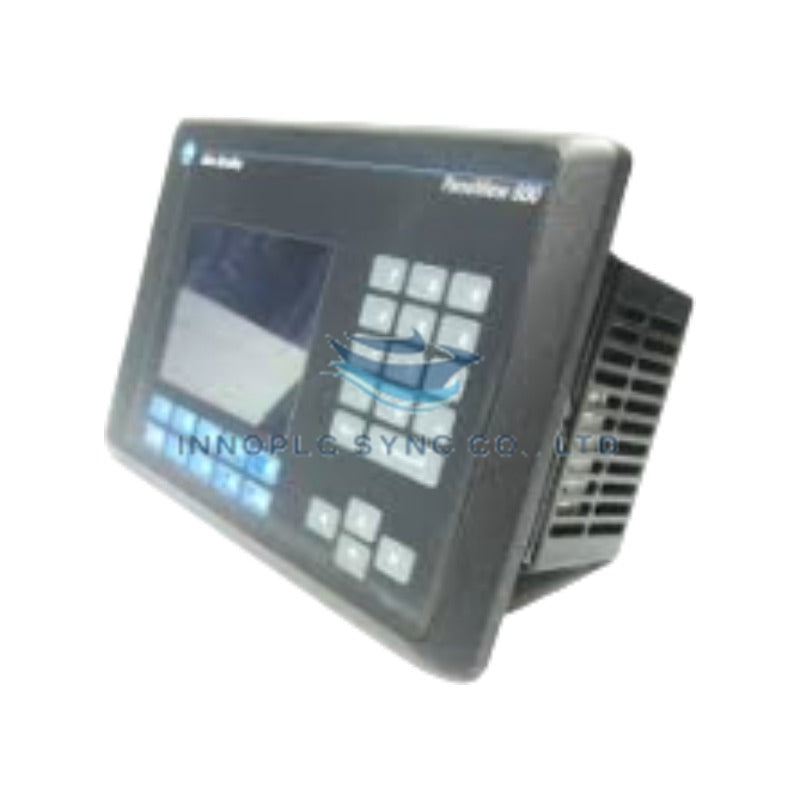

The Allen-Bradley 2711-K6C5L1 is a PanelView Standard operator interface terminal designed to provide real-time process visualization and control in industrial automation environments. Featuring a 5.7-inch color display with a 320 x 234 pixel resolution, this HMI unit enables operators to monitor system parameters and interact with control equipment through an integrated keypad assembly.
Display and Operator Interface
The operator terminal incorporates a 5.7-inch color display that delivers clear visual feedback for industrial processes. Operator interaction is managed via an embedded physical keypad, offering dedicated keys for numeric entry, screen navigation, and function control to ensure reliable operation in factory floor settings.
Communication and Power Specifications
For communication and data exchange, the unit supports RS-232 communication interfacing with DH-485 protocol capabilities. It is engineered to operate on a 24 VDC input power supply, making it compatible with standard industrial control cabinet power architectures while maintaining a lightweight profile of 4.50 lbs.
| Parameter | Specification |
|---|---|
| Model | 2711-K6C5L1 |
| Brand | Allen-Bradley |
| Product Family | PanelView Standard (PanelView 600) |
| Product Type | Operator Interface Terminal |
| Display Size | 5.7 in. |
| Resolution | 320 x 234 pixels |
| Display Type | Color Display |
| Input Type | Keypad |
| Communication Ports | RS-232 (DH-485) |
| Input Voltage | 24 VDC |
| Weight | 4.50 lbs |
Frequently Asked Questions
Q: What type of operator input does the Allen-Bradley 2711-K6C5L1 use?
A: It utilizes an integrated physical keypad for operator inputs and system navigation.
Q: What is the required input voltage for this operator terminal?
A: The terminal operates on a 24 VDC input power supply.
Q: What communication interface is built into this unit?
A: It features an RS-232 port with DH-485 communication capabilities for data exchange.
