Interface Module | Yokogawa CR5-PA*A

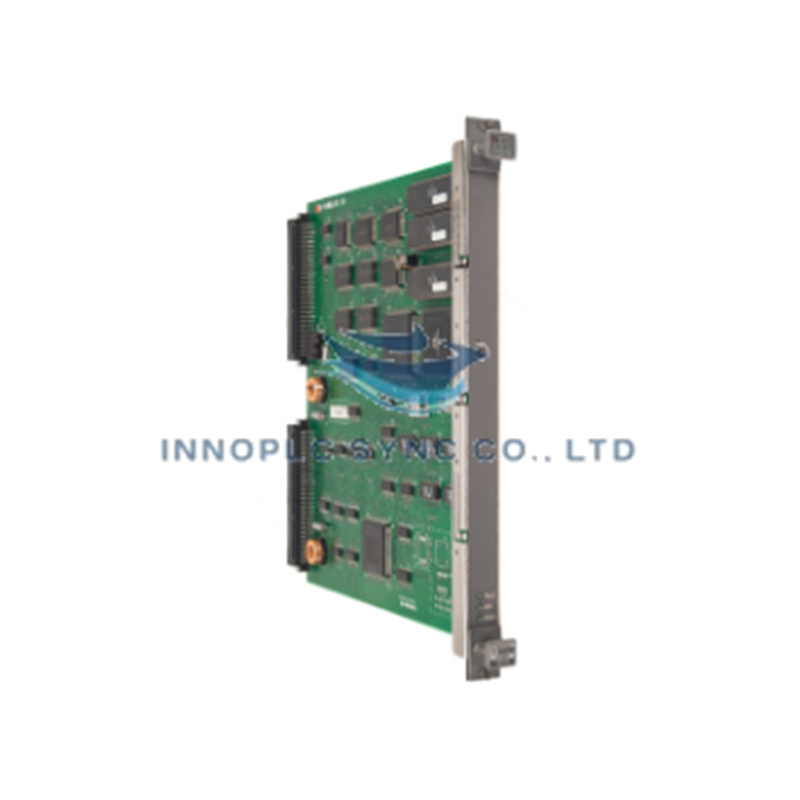

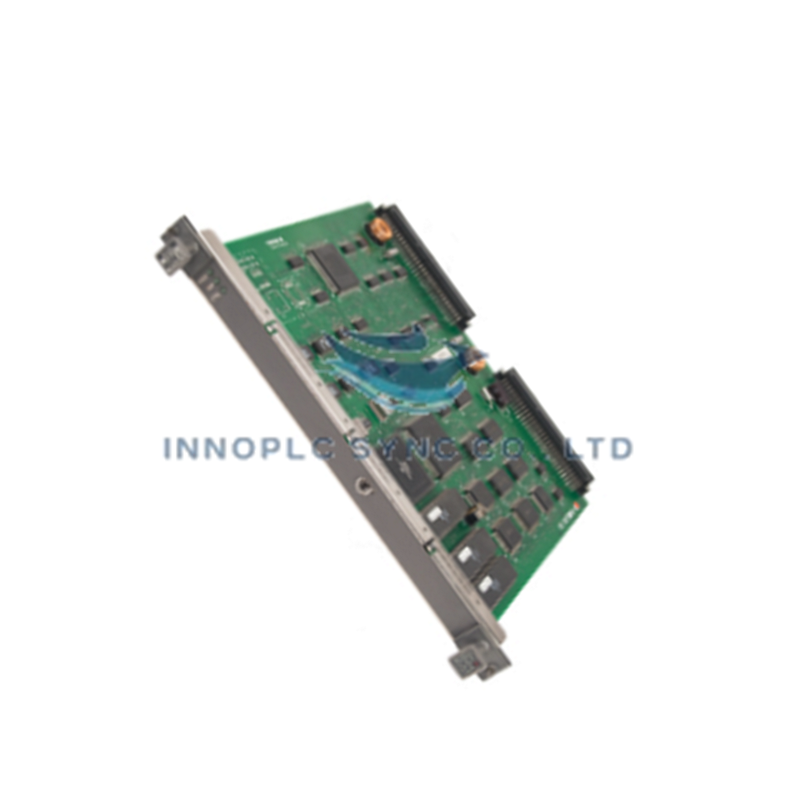

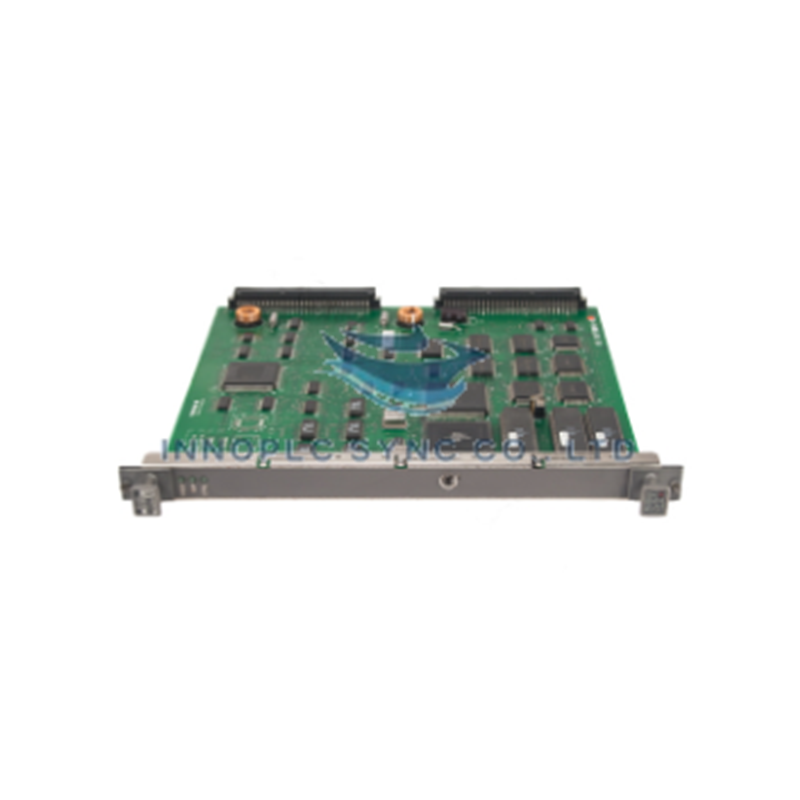

The Yokogawa CR5-PA*A , also cataloged as the CR5-PA Interface Module, operates as a dedicated hardware component for signal level conversion and bus communication routing within Yokogawa distributed control architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CR5-PA*A |
| Brand | Yokogawa |
| Origin | Unspecified |
| Weight | Unspecified |
| Dimensions | Standard CENTUM rack form factor |
| Operating Temp | -10 deg C to +55 deg C |
| Power Consumption | Standard internal bus draw |
| Communication Interface | Dedicated bus protocol interface |
| Signal Routing | Multi-channel isolated interface paths |
| Enclosure Mounting | Rack-mounted base unit installation |
Channel-to-Channel Isolation and Bus Routing
The module utilizes galvanic channel-to-channel isolation topologies to mitigate ground potential differences and suppress electromagnetic interference across distributed control nodes. Differential signal conditioning blocks process interface inputs while maintaining deterministic bus transmission timings, ensuring error-free data exchange over system backplanes.
Frequently Asked Questions
Q: Does the CR5-PA*A module support hot-insertion into an energized rack chassis?
A: Hot-plugging is restricted unless the specific rack backplane and power supply architecture are rated for live insertion, preventing bus corruption on the central communication highway.
Q: How does the interface module handle common-mode voltage fluctuations across remote nodes?
A: Galvanic isolation barriers built into the input/output channels block high common-mode transients up to rated system insulation thresholds, safeguarding downstream controller circuitry.
Field Installation Guidelines
- Ensure rack slot alignment and verify that backplane connector pins are clean and free of oxidation before module insertion.
- Tighten all mechanical locking fasteners or screws securely to establish solid low-impedance chassis grounding.
- Route signal wiring and communication cables away from high-voltage power conduits and variable frequency drives to prevent electromagnetic coupling.
- Maintain cabinet ambient temperatures within standard industrial operating parameters with sufficient vertical ventilation clearance.
