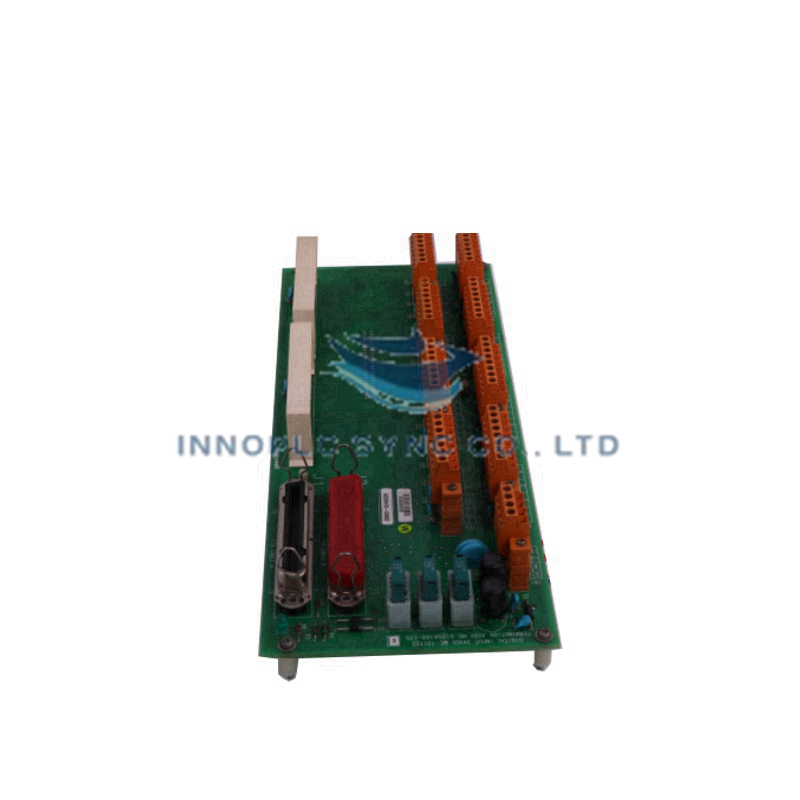

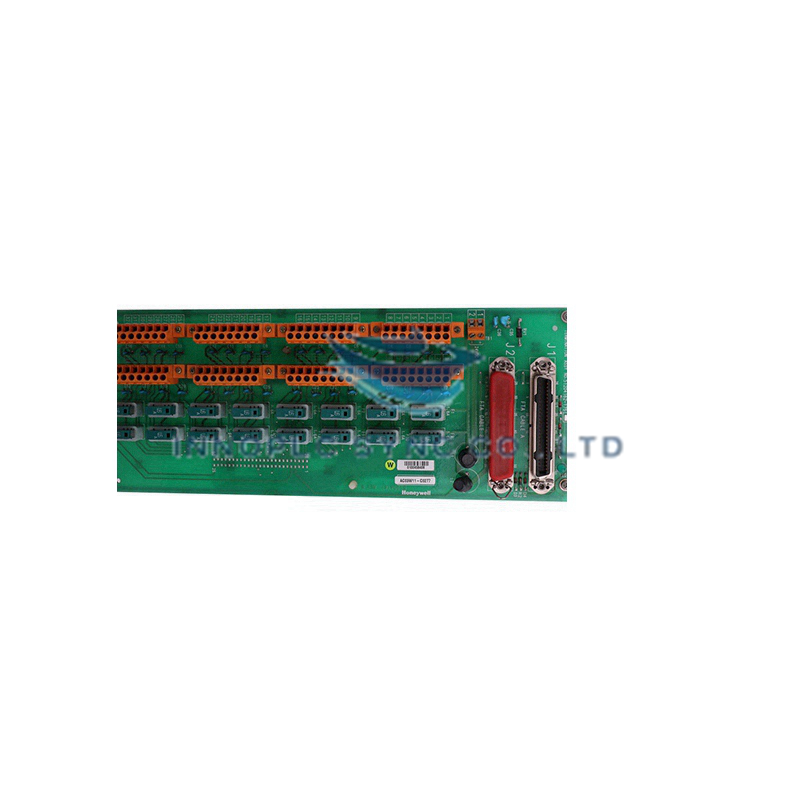

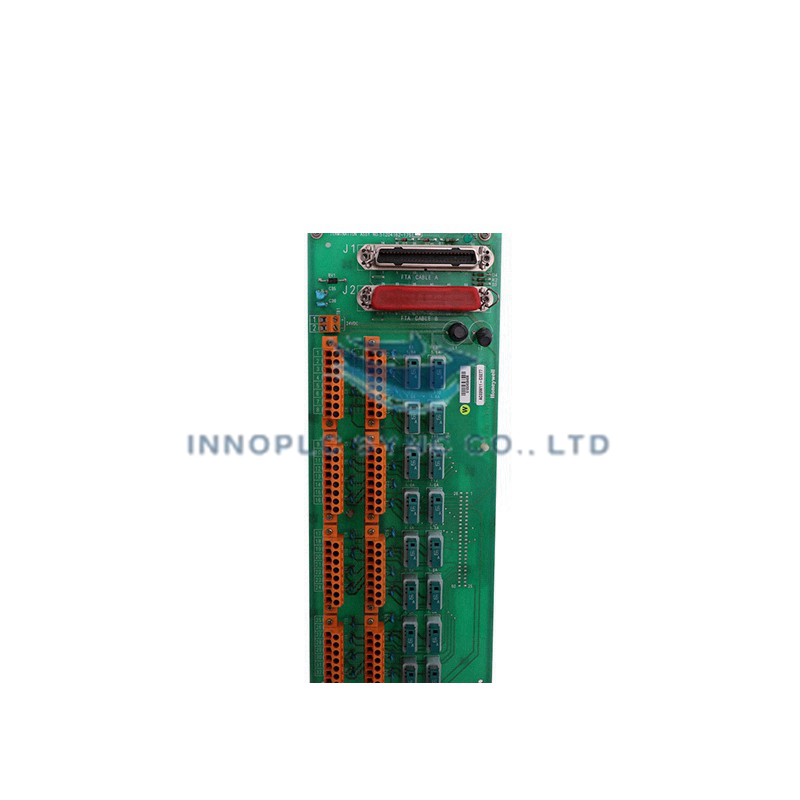

Honeywell MC-TAIH12 Analog Input
Configured for high-level analog signal processing in Experion PKS and TDC 3000 process control architectures, the Honeywell MC-TAIH12 (MC-TAIH12 Analog Input Module) provides direct physical/electrical execution. This high-density hardware interface conditions and digitizes up to 16 single-ended or differential field instrument loops. By operating directly on the system I/O bus, the unit converts incoming process variables into digital format for central controller processing without introducing signal distortion or processing latency.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-TAIH12 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 10.00 lbs |
| Dimensions | Standard Process Manager I/O board footprint |
| Operating Temp | 0 to +60 deg C |
| Power Consumption | System backplane powered via I/O link |
| Input Channels | 16 High-Level Analog Inputs |
| Input Range | 4-20 mA / 1-5 VDC |
| Galvanic Isolation | Channel-to-system isolation provided |
Channel-to-Channel Isolation and CJC Architecture
The Honeywell MC-TAIH12 incorporates channel-to-channel isolation and precision cold junction compensation (CJC) processing circuitry to preserve measurement accuracy across volatile thermal conditions. Each of the 16 analog input channels features dedicated filtering networks that attenuate high-frequency industrial noise and 50/60 Hz electromagnetic interference. The onboard analog-to-digital conversion architecture utilizes precision voltage references to maintain high accuracy and drift stability across the full operating temperature range.
Frequently Asked Questions
Q: What signal types are compatible with the MC-TAIH12 input channels?
A: The module accepts standard high-level industrial signals, specifically 4-20 mA current loops and 1-5 VDC voltage signals across its 16 analog channels.
Q: Can the MC-TAIH12 module be replaced while the system backplane is energized?
A: Hot-swapping must be performed in strict accordance with Honeywell Process Manager maintenance guidelines. Ensure the associated field wiring assembly is isolated or placed in a safe state prior to module removal to prevent signal disruption on adjacent loops.
Q: How does the module handle signal conditioning for high-level inputs?
A: Each channel employs an onboard analog front-end with passive low-pass filtering and high-impedance buffering to eliminate common-mode noise before analog-to-digital conversion.
Field Installation Guidelines
- Ensure the power supply to the I/O rack or mounting chassis is turned off or verified safe according to plant safety regulations before insertion or removal of the board.
- Align the board edge connectors carefully with the backplane guide rails to avoid bending interface pins during installation.
- Torque all field wiring terminal block screws to the manufacturer-specified rating (typically 0.5 to 0.6 Nm) to maintain gas-tight electrical connections.
- Verify that signal cable shielding is grounded at a single point (preferably at the cabinet marshaling bar) to prevent ground loops from degrading signal integrity.
- Maintain a minimum clear distance of 50 mm around the card cage vents to ensure adequate convective thermal dissipation.
