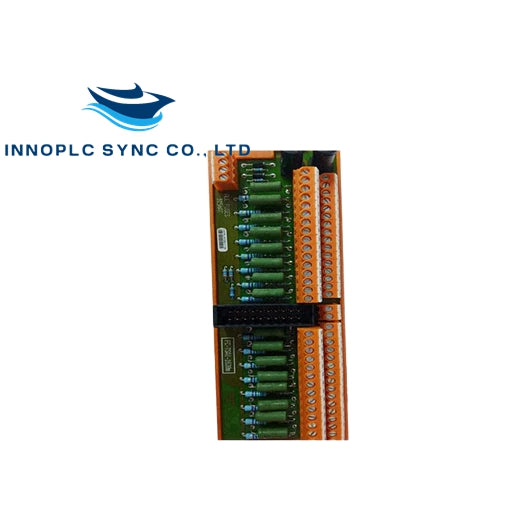

Honeywell FC-TSHART-1620M Analog Input Module
The Honeywell FC-TSHART-1620M, also cataloged as the FC-TSHART-1620M analog input module, operates as a dedicated hardware component for analog signal conditioning and field instrument communication within Safety Manager and Experion PKS networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-TSHART-1620M |
| Brand | Honeywell |
| Origin | USA |
| Weight | 1.3 kg |
| Dimensions | 150 mm x 95 mm x 125 mm |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | 24 VDC nominal supply |
| Input Channels | 16 HART-compatible input channels |
| Communication Protocol | HART protocol |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection | IP20 |
4-20 mA HART Loop Protocol and Channel Isolation
The module processes analog measurements across 16 HART-compatible channels, overlaying digital FSK signals onto the standard 4-20 mA current loops. Integrated channel-to-channel isolation architecture mitigates common-mode voltage spikes and eliminates ground loops between field transmitters. Continuous loop status supervision verifies field sensor health, allowing digital device parameters, diagnostic flags, and process variables to pass directly to the central control host without disturbing primary analog feedback signals.
Frequently Asked Questions
Q: Does the module support hot-swapping during active system operation?
A: Hot-swapping is supported provided the rack backplane power is stable and safety management bypass procedures are applied to avoid triggering active process interlocks.
Q: How is field wiring termination managed for high channel density configurations?
A: Field connections route through removable terminal blocks or multi-core cable interfaces, maintaining channel segregation and dedicated shield grounding points.
Q: What happens if a connected HART loop experiences an open-circuit fault?
A: The module internal diagnostic circuit detects the zero-current state, asserts a channel fault alert to the controller, and sets the loop status flag to safe state execution parameters.
Field Installation Guidelines
- Mount the module vertically into its designated chassis slot, pushing firmly until the locking mechanisms click into place.
- Ensure all field wiring pairs for the 4-20 mA HART loops are shielded, grounding the drain wire at the panel earth bar only.
- Maintain separate conduit paths for low-voltage analog signal cables and high-voltage power distribution lines.
- Verify that the supply voltage matches the 24 VDC nominal specification before energizing the module input circuits.
