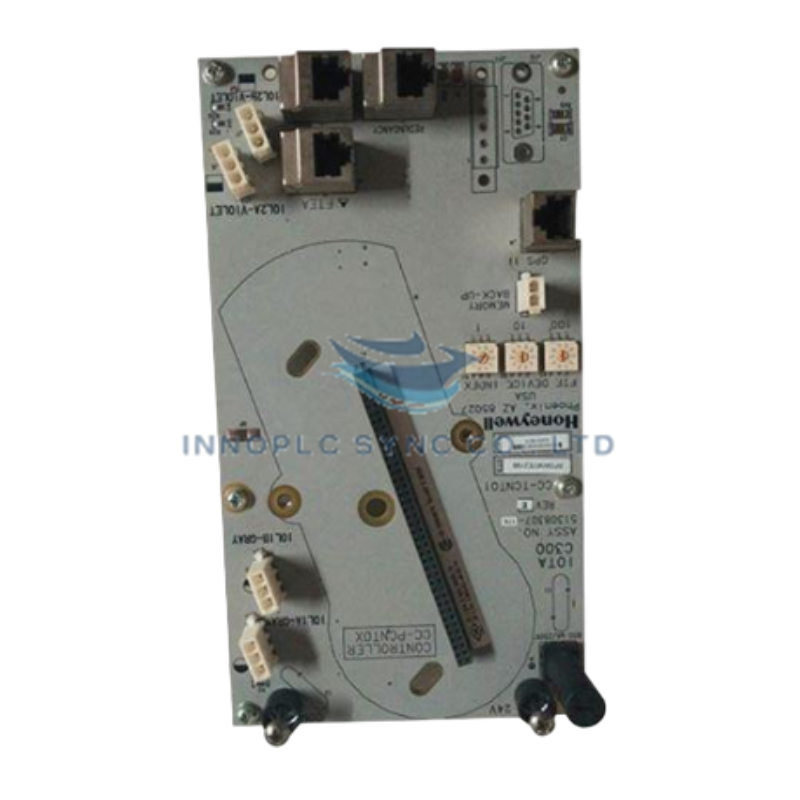

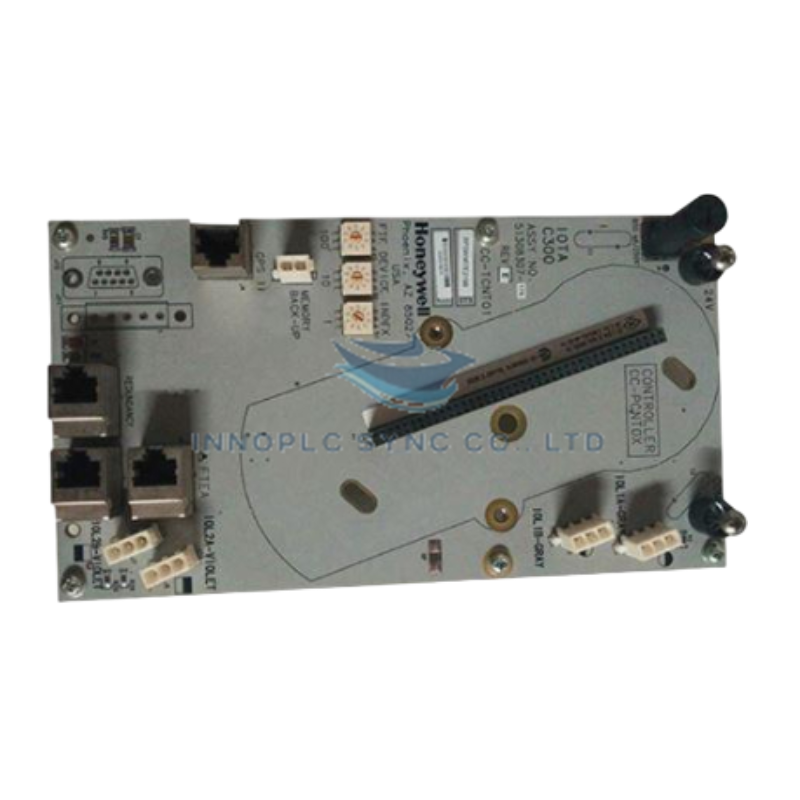

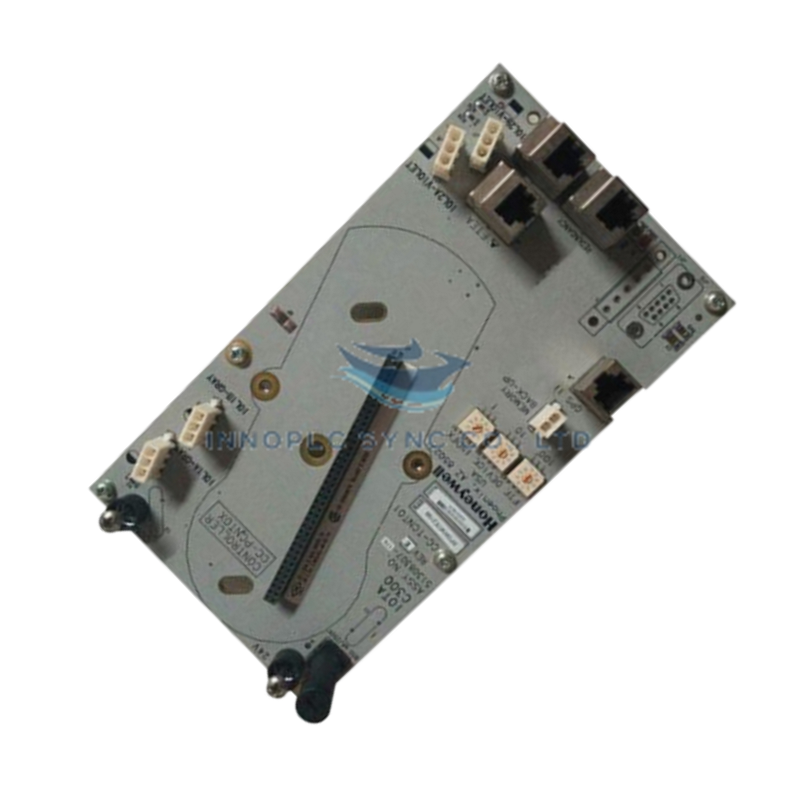

Honeywell DC-TFB412 51307618-176 C300 Controller Backplane Module
The Honeywell DC-TFB412 51307618-176 , also cataloged as the DC-TFB412 Control Module Backplane, operates as a dedicated hardware component for high-speed signal distribution and module interconnection within Honeywell C300 controller systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DC-TFB412 51307618-176 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.5 kg |
| Dimensions | 10 cm x 18 cm x 10 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 24 VDC supply nominal |
| Backplane Bus Type | C300 Controller I/O Interface |
| Mounting Type | Panel / Rack Mount |
| Enclosure Compatibility | Honeywell Experion PKS C300 Chassis |
DCS Signal Integrity & CJC Compensation Features
The DC-TFB412 backplane architecture is engineered to preserve signal fidelity across 4-20 mA HART loops and high-density channel distributions. Integrated trace routing provides channel-to-channel isolation and crosstalk minimization across the internal bus structures, preventing signal degradation during simultaneous multi-channel processing. When combined with specialized thermocouple and RTD input modules, the backplane back-plane bus routes precise cold junction compensation (CJC) reference signals directly to the analog processing units, maintaining system-wide measurement accuracy across the full operating range of -40 deg C to +70 deg C.
Frequently Asked Questions
Q: Can the DC-TFB412 backplane support hot-swapping of mounted I/O modules while energized?
A: Yes. The backplane bus connections and power distribution traces are designed with staggered contact pins to support hot-insertion and hot-removal of compatible C300 modules without disrupting adjacent running channels.
Q: What is the primary input voltage required for the DC-TFB412 backplane assembly?
A: The module requires a regulated 24 VDC primary power input to power the internal backplane bus and feed connected I/O interfaces.
Field Installation Guidelines
- Ensure all incoming 24 VDC power source lines are de-energized prior to initial mechanical fastening to prevent arc transients during bus contact insertion.
- Mount the backplane onto the DIN rail or enclosure plate using standard M4 screws. Ensure the mounting substrate is bonded to the main control panel protective earth (PE) bus bar.
- Verify that all shield drain wires from field instrument cables are terminated at designated low-impedance ground bars rather than directly to the backplane chassis housing to prevent ground loops.
- Maintain a minimum vertical clearance of 50 mm above and below the backplane assembly to allow passive thermal dissipation and adequate wiring duct access.
