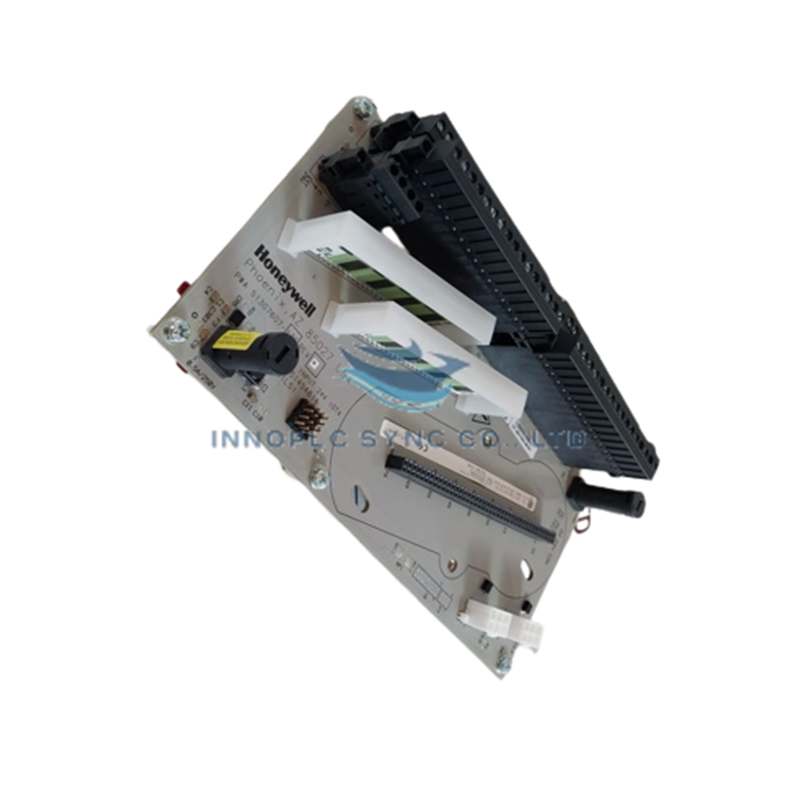

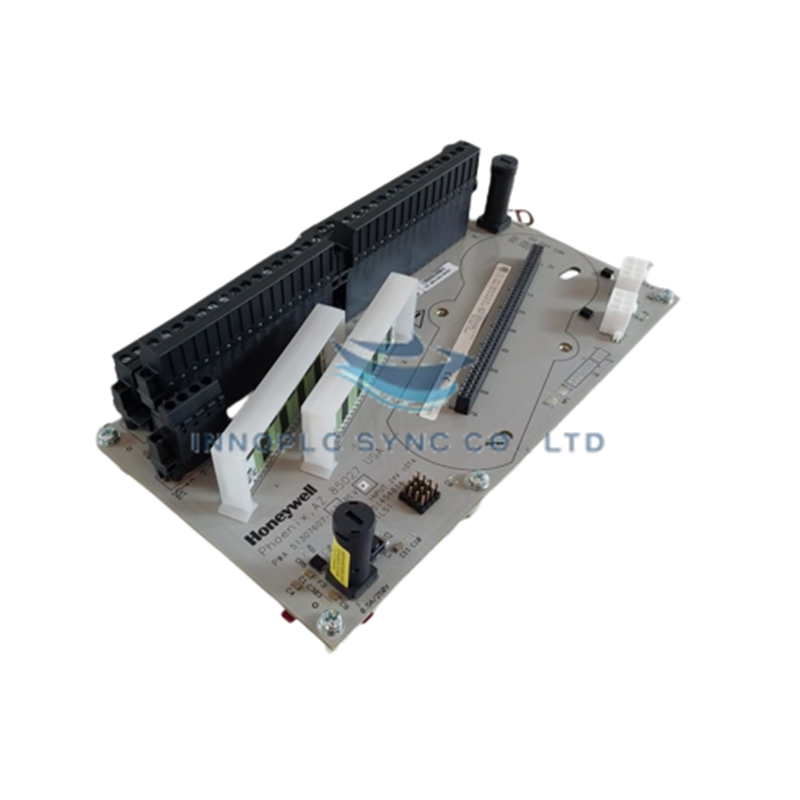

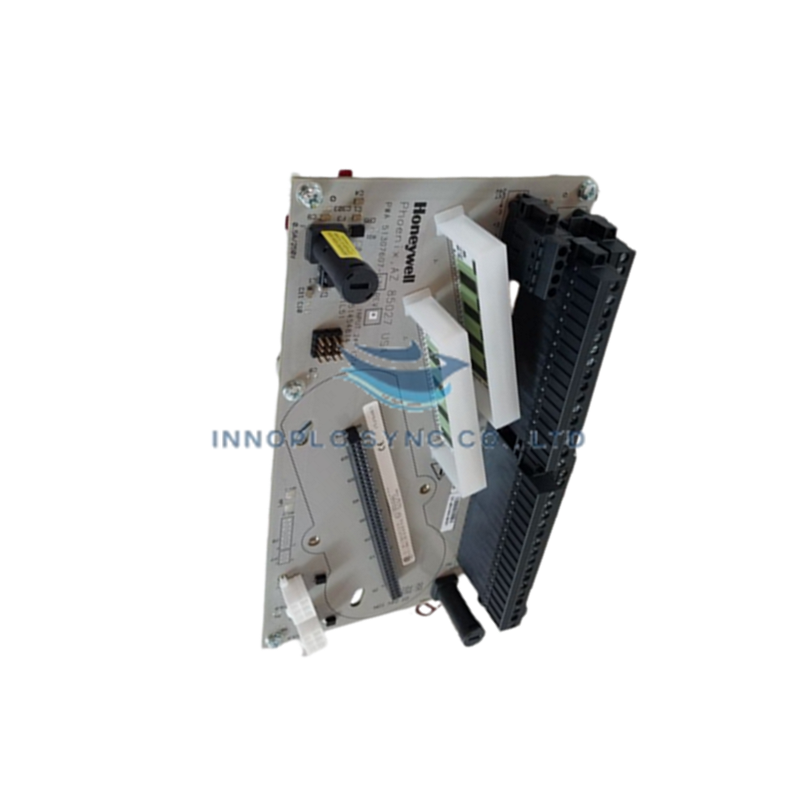

Honeywell DC-TDIL51 Digital Input IOTA
The Honeywell DC-TDIL51 , also cataloged as the DC-TDIL51 Digital Input IOTA, operates as a dedicated hardware component for field signal termination and discrete input processing within Honeywell Experion PKS C300 systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DC-TDIL51 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 3 kg (Shipping Weight) |
| Dimensions | Standard C300 IOTA form factor |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 24 VDC nominal field supply |
| Input Channels | High-density discrete input channels |
| Bus Interface | Experion C300 I/O Link |
Discrete Signal Conditioning & Channel Isolation
The DC-TDIL51 Input Output Termination Assembly (IOTA) routes field discrete contact signals directly to the input processing logic while maintaining channel-to-channel isolation across all field terminations. Designed to buffer incoming discrete voltage levels and suppress high-voltage field transients, the assembly prevents electrical noise propagation into the central I/O bus. In combination with 4-20 mA HART loop protocol routing and analog I/O options on shared field panels, the DC-TDIL51 ensures deterministic input scan cycles across distributed process control topologies.
Frequently Asked Questions
Q: Does the DC-TDIL51 IOTA support redundant I/O module configurations?
A: Yes, the physical layout and trace routing of the DC-TDIL51 allow dual Digital Input modules to be mounted onto a single termination assembly for redundant signal execution.
Q: What grounding procedure must be followed for field wiring terminated on the DC-TDIL51?
A: Shield wires from field sensor cables must be terminated at designated shield bars connected directly to the panel system ground bus, bypassing signal ground channels on the IOTA board.
Field Installation Guidelines
- Disconnect all 24 VDC power lines and field contact excitation loops prior to mounting or wiring the DC-TDIL51 assembly.
- Secure the IOTA housing onto the enclosure carrier plate using standard industrial mounting hardware, ensuring solid metallic contact for chassis ground bonding.
- Torque all field wiring screw terminals to manufacturer-specified limits to maintain gas-tight electrical contact and prevent loose connection faults under vibration.
- Maintain proper separation between high-voltage power conduits and low-voltage discrete signal cables routed to the IOTA terminal blocks.
