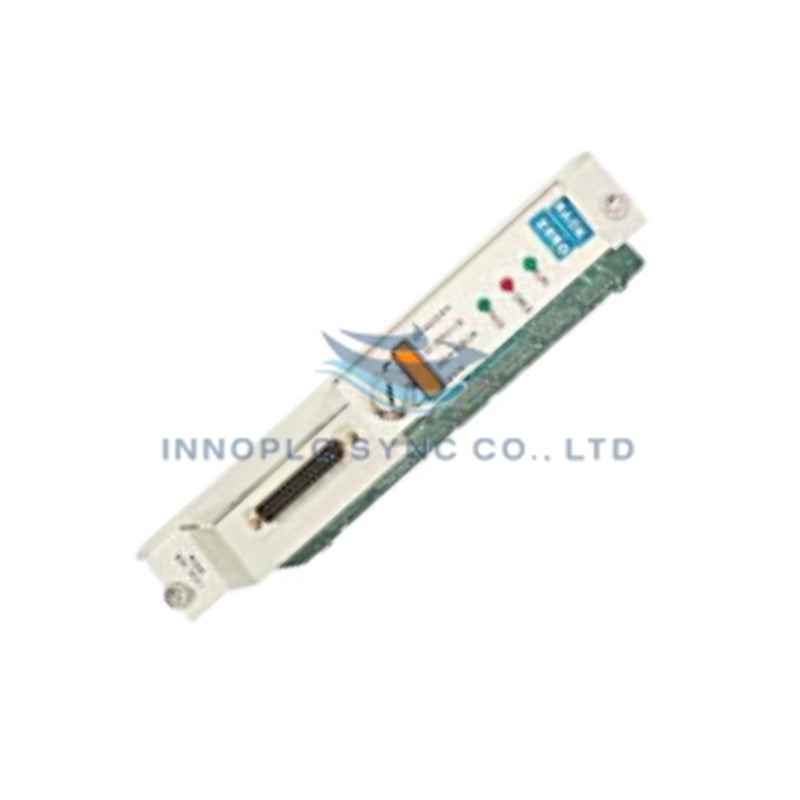

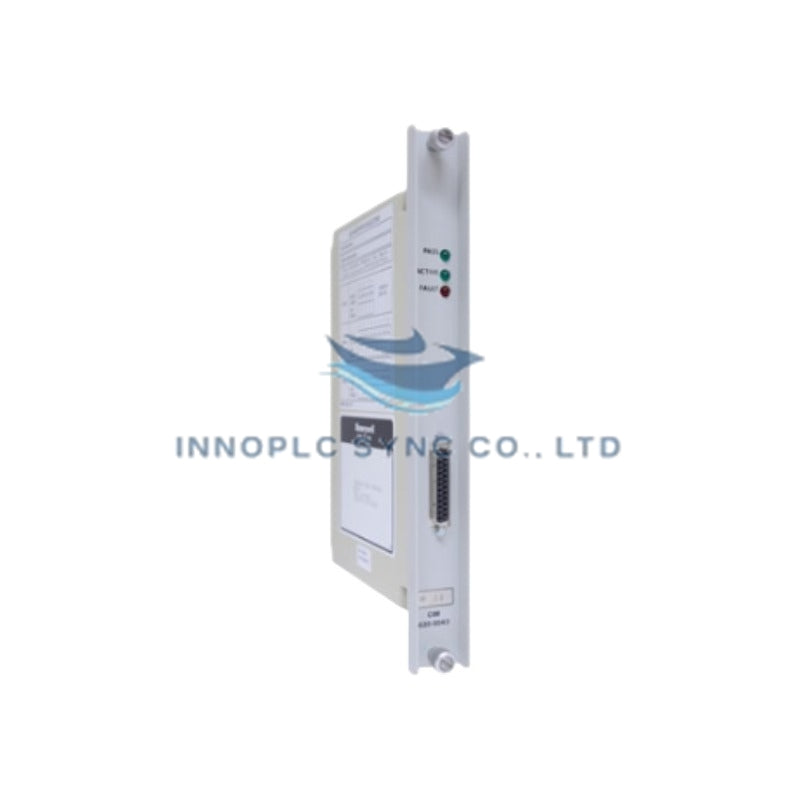

Honeywell 620-0033 Driver Module Card
The Honeywell IPC 620-0033, also cataloged as the 6200033 Driver Module Card, operates as a dedicated hardware component for parallel link physical interface driving and high-speed signal distribution within Honeywell ISSC 600 system racks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 620-0033 |
| Brand | Honeywell IPC |
| Origin | USA / Global Manufacturing Facility |
| Weight | 1.90 lbs (0.86 kg) |
| Dimensions | 10.5 in x 6.5 in x 1.2 in (standard rack card form factor) |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | 4.5 W max from backplane rail |
| Bus Interface | High-speed parallel link driver interface |
| System Platform | Honeywell ISSC 600 Series |
| Diagnostic Indicators | Status LEDs (Power, Active Link, Drive Fault) |
Cold Junction Compensation and Channel Isolation
Configured for process control operations, the card's physical layout incorporates high-impedance driver stages and channel-to-channel isolation networks to eliminate signal line cross-talk. When managing thermocouple and millivolt analog references across parallel link paths, local cold junction compensation (CJC) circuits maintain thermal drift stability across varying ambient field temperatures. Differential line drivers maintain signal integrity across multi-rack interconnect cables by attenuating common-mode electrical noise.
Frequently Asked Questions
Q: Can the Honeywell 620-0033 Driver Module Card be inserted while the system rack is energized?
A: No. Standard rack power must be completely disconnected and isolated prior to insertion or extraction to prevent backplane pin arching and logic transceiver degradation.
Q: How does the parallel link driver handle line noise?
A: The card utilizes balanced differential driver circuitry and channel isolation stages to suppress common-mode voltage spikes across the parallel interface cable.
Q: What front-panel indications confirm active parallel link operations?
A: Onboard diagnostic LEDs display green illumination during active driver state execution and turn red upon detecting drive parity or signal loss conditions.
Field Installation Guidelines
- Power Isolation: Ensure all incoming main AC/DC power sources to the PLC rack enclosure are turned off before inserting the module.
- ESD Grounding: Put on a properly bonded anti-static wrist strap connected to cabinet earth ground to prevent static discharge damage to IC drivers.
- Card Installation: Slide the board cleanly into the target rack slot along the chassis card guides until the rear connector latches firmly with the backplane socket. Secure the retaining thumbscrews.
- Parallel Cable Grounding: Route parallel link cables in dedicated low-voltage wireways and ground cable shields directly to the panel chassis ground bar.
