Honeywell 07170/1/1 PLC Programmers

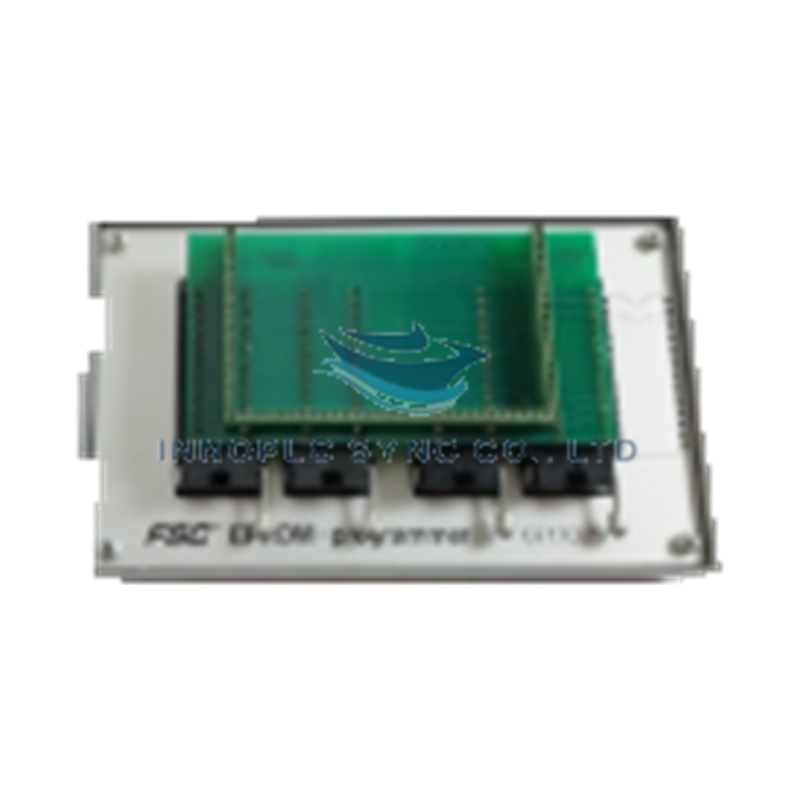

The Honeywell 07170/1/1 is a specialized hardware programming unit engineered for the Honeywell Fail Safe Control (FSC) safety management platform. Designed to program and configure system memory chips, this tool enables control system engineers to load, write, and verify application logic and firmware onto non-volatile EPROM chips used within FSC central processor units and interface modules.
Interface Connection and Operational Use

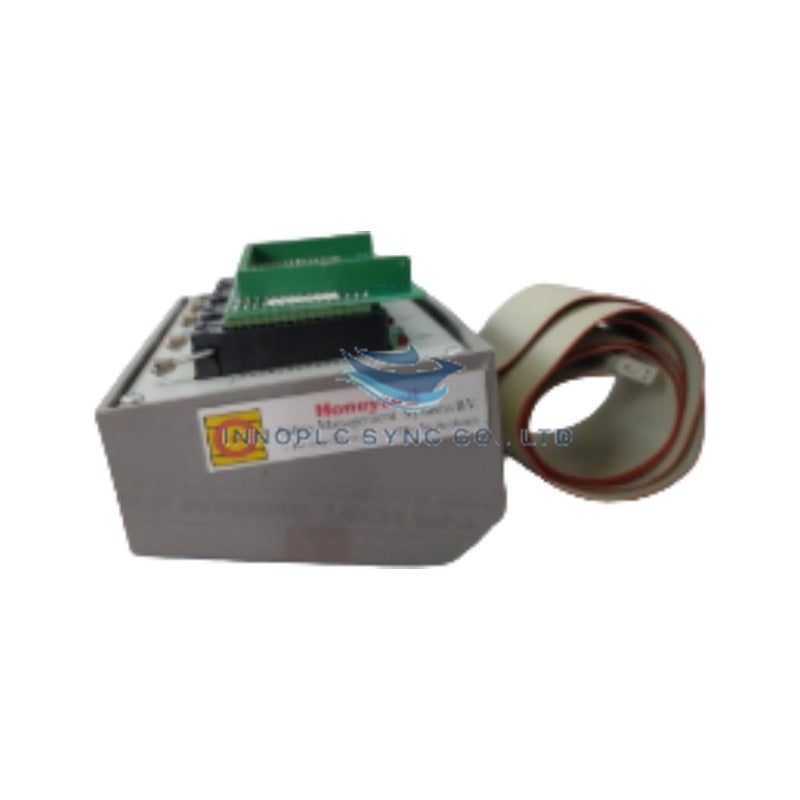

Data transfer and power delivery during programming operations are established via a dedicated ribbon cable connection. This interface provides stable signal continuity between the programmer hardware and the target system module, reducing transmission errors during critical firmware writing procedures. It is used during system commissioning, maintenance updates, and spare module preparation to update stored control sequences across automated process control environments.
Physical Design and Mechanical Enclosure

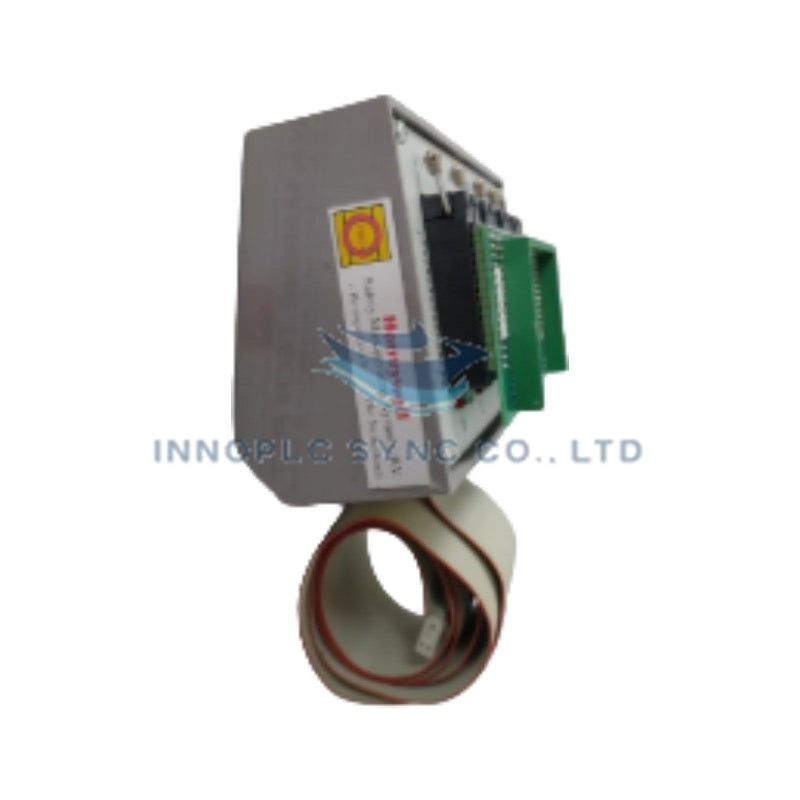

Enclosed in a portable industrial chassis, the 07170/1/1 measures 7.0 in x 7.0 in x 10.0 in (17.8 cm x 17.8 cm x 25.4 cm) and has a total weight of 1 lb 7.0 oz (0.7 kg). Its compact footprint allows for benchtop engineering setup or field use during on-site controller servicing.
Specifications
| Parameter | Specification |
|---|---|
| Model | 07170/1/1 |
| Brand | Honeywell |
| Product Type | FSC EPROM Programmer |
| Series | Fail Safe Control (FSC) |
| Interface | Ribbon cable |
| Dimensions | 7.0 in x 7.0 in x 10.0 in (17.8 cm x 17.8 cm x 25.4 cm) |
| Weight | 1 lb 7.0 oz (0.7 kg) |
Frequently Asked Questions
Q: How connects the Honeywell 07170/1/1 programmer to the host or system hardware? A: The programmer connects directly using a dedicated ribbon cable assembly that supplies the necessary lines for control signals, data verification, and programming voltages.
Q: What primary role does the 07170/1/1 serve in Honeywell FSC safety systems? A: It is used to write, update, and verify executable firmware and safety application logic stored on non-volatile EPROM chips utilized by FSC controller modules.
