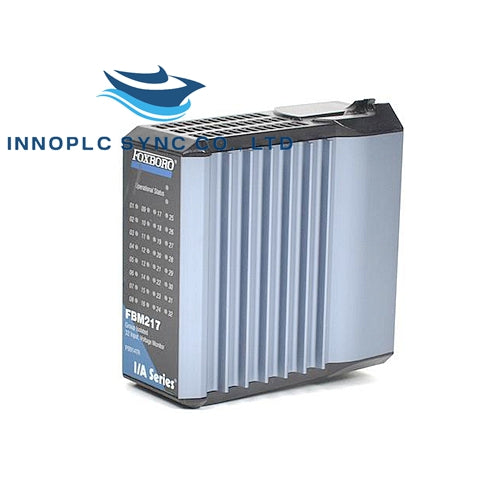

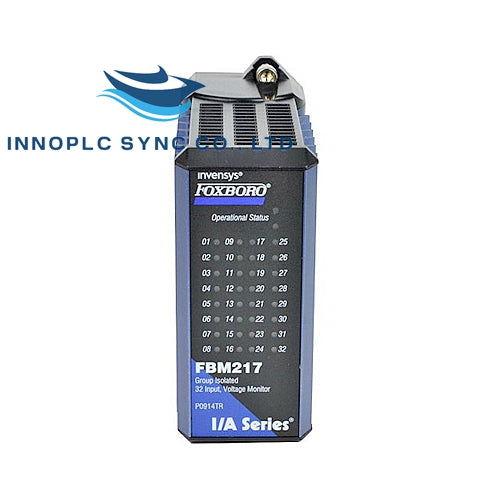

Foxboro | FBM217 P0916CA | Discrete Input Interface Module
Features
- Thirty-Two (32) discrete inputs
- Supports discrete input signals at voltages of:
- 15 to 60 V dc
- 120 V ac/125 V dc
- 240 V ac
- Single or redundant modules
- Compact, rugged design suitable for enclosure in Class G3 (harsh) environments
- Executes the programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events, with the configurable options: Input Filter Time and Fail-Safe Configuration
- Various Termination Assemblies (TAs) that contain:
- High voltage attenuation and optical isolation for inputs
- External power connection for device excitation
Input
- 32 group isolated channels
- On-State Voltage: 15 to 30 V dc
- Off-State Voltage: 0 to 5 V dc
- Current: 2.2 mA (typical) at 30 V dc Input
-
Source Resistance Limits:
- ON-STATE: 1 k Ω (maximum) at 15 V dc
- OFF-STATE: 100 k Ω (minimum) at 30 V dc
- Filter/Debounce Time(1): Configurable (No Filtering, 4, 8, 16, or 32 ms)
- Maximum Pulse Count Rate: 250 Hz
Isolation (Module/TA Combination)
- For TAs which provide group isolation (P0916CA, P0916CB, P0916PW, P0916PX, and P0916XZ), input channels are group isolated from earth (ground).
- These module/TA combinations can withstand, without damage, a potential of 600 V ac applied for one minute between the group isolated channels and earth (ground).
- For high-voltage TAs P0916PY, P0916PZ, P0916YB, P0916QA, and P0916QB, the inputs are group isolated. These TAs can withstand UL required dielectric potentials.
- For high-voltage TAs P0916PS, PT, YA, PU, and PV, the inputs are channel isolated. These TAs can withstand UL required dielectric potentials.
Communication
- Communicates with its associated FCM or FCP via the module Fieldbus
Power Requirements
- INPUT VOLTAGE RANGE (REDUNDANT): 24 V dc +5%, -10%
- CONSUMPTION: 3 W (maximum) at 24 V dc
- HEAT DISSIPATION: 5 W (maximum) at 24 V dc
Calibration Requirements
- Calibration of the module and termination assembly is not required.
Dimensions - Module
- HEIGHT: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs
- WIDTH: 45 mm (1.75 in)
- DEPTH: 104 mm (4.11 in)
Foxboro | FBM217 P0916CA | Discrete Input Interface Module


Current product
Current
Vendor:
Foxboro
Foxboro | FBM217 P0916CA | Discrete Input Interface Module
Regular price
$170.00
Sale price
$170.00
Regular price
$320.00
Options
Descriptions
Features
- Thirty-Two (32) discrete inputs
- Supports discrete input signals at voltages of:
- 15 to 60 V dc
- 120 V ac/125 V dc
- 240 V ac
- Single or redundant modules
- Compact, rugged design suitable for enclosure in Class G3 (harsh) environments
- Executes the programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events, with the configurable options: Input Filter Time and Fail-Safe Configuration
- Various Termination Assemblies (TAs) that contain:
- High voltage attenuation and optical isolation for inputs
- External power connection for device excitation
Input
- 32 group isolated channels
- On-State Voltage: 15 to 30 V dc
- Off-State Voltage: 0 to 5 V dc
- Current: 2.2 mA (typical) at 30 V dc Input
-
Source Resistance Limits:
- ON-STATE: 1 k Ω (maximum) at 15 V dc
- OFF-STATE: 100 k Ω (minimum) at 30 V dc
- Filter/Debounce Time(1): Configurable (No Filtering, 4, 8, 16, or 32 ms)
- Maximum Pulse Count Rate: 250 Hz
Isolation (Module/TA Combination)
- For TAs which provide group isolation (P0916CA, P0916CB, P0916PW, P0916PX, and P0916XZ), input channels are group isolated from earth (ground).
- These module/TA combinations can withstand, without damage, a potential of 600 V ac applied for one minute between the group isolated channels and earth (ground).
- For high-voltage TAs P0916PY, P0916PZ, P0916YB, P0916QA, and P0916QB, the inputs are group isolated. These TAs can withstand UL required dielectric potentials.
- For high-voltage TAs P0916PS, PT, YA, PU, and PV, the inputs are channel isolated. These TAs can withstand UL required dielectric potentials.
Communication
- Communicates with its associated FCM or FCP via the module Fieldbus
Power Requirements
- INPUT VOLTAGE RANGE (REDUNDANT): 24 V dc +5%, -10%
- CONSUMPTION: 3 W (maximum) at 24 V dc
- HEAT DISSIPATION: 5 W (maximum) at 24 V dc
Calibration Requirements
- Calibration of the module and termination assembly is not required.
Dimensions - Module
- HEIGHT: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs
- WIDTH: 45 mm (1.75 in)
- DEPTH: 104 mm (4.11 in)
