Bachmann|TI214| Safety Processor Module

SKU: TI214

Manufacturer: Bachmann
Product No.: TI214
Condition：In stock
Product Type: Safety Processor Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

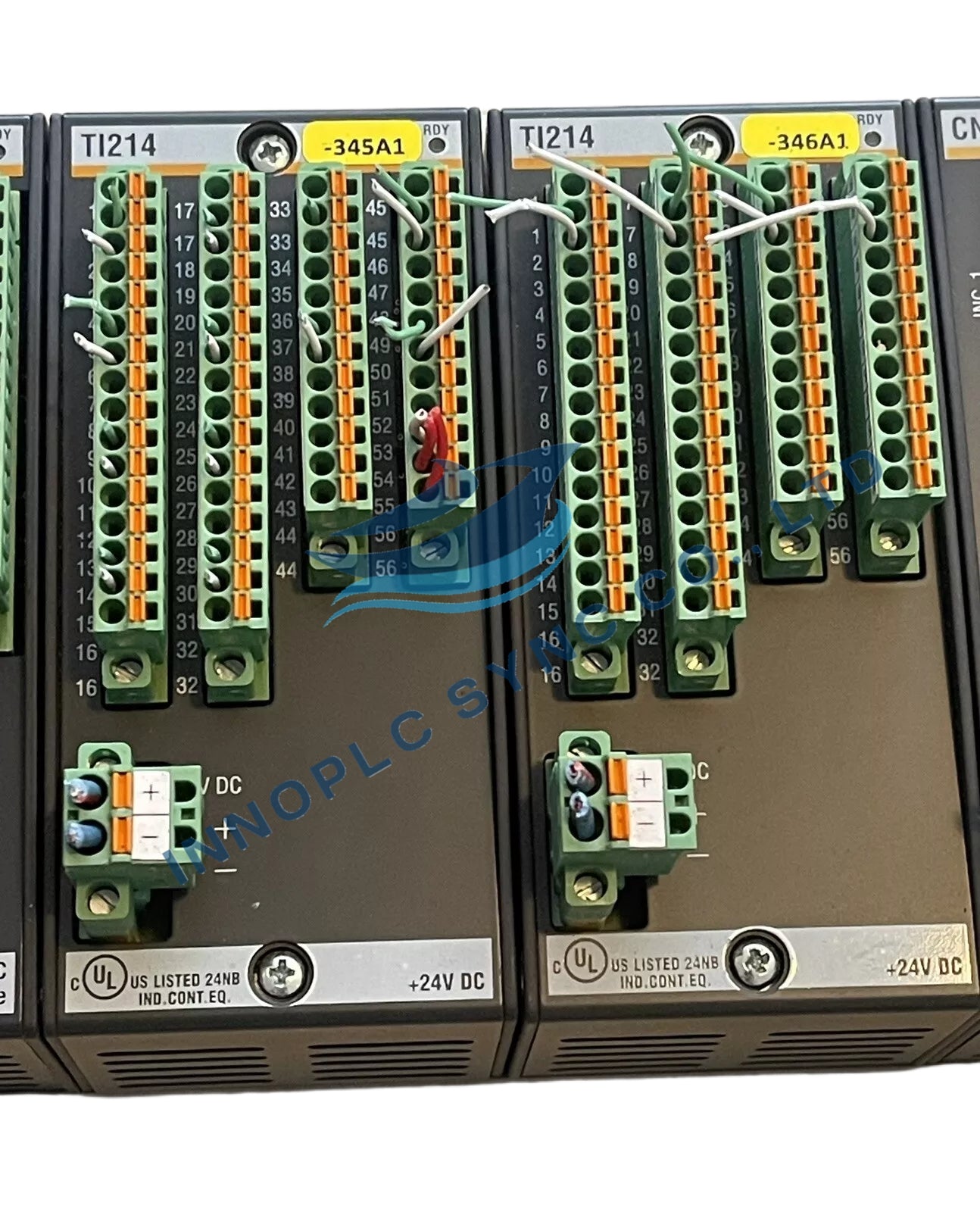

The TI214 is a temperature input module designed for the M1 System by Bachmann. It provides precise and reliable temperature measurement, supporting a variety of sensor types including PT100, PT1000, K, J, N, E, T, S, R, B, and L thermocouples. The module is ideal for applications requiring accurate temperature monitoring and control in industrial environments.

Features

Sensor Support: PT100, PT1000, and various thermocouple types (K, J, N, E, T, S, R, B, L)
High Accuracy: Ensures precise temperature measurements
Multiple Channels: Supports multiple temperature inputs
Communication Interface: Integrated into the M1 System for seamless data transfer
Compact Design: Fits easily into space-constrained installations
Wide Operating Range: Suitable for a broad range of temperatures

Technical Specifications

Input Type:
- RTD: PT100, PT1000
- Thermocouple: K, J, N, E, T, S, R, B, L
Measurement Range:
- RTD: -200°C to +850°C
- Thermocouple: Varies by type (e.g., K: -200°C to +1372°C, J: -210°C to +1200°C)
Accuracy:
- RTD: ±0.1°C (at 0°C), ±0.3°C (at 100°C)
- Thermocouple: ±0.5°C or 0.75% of measured value
Resolution:
- RTD: 0.01°C
- Thermocouple: 0.1°C
Input Channels: 4 channels per module
Supply Voltage: 24 Vdc ±10%
Power Consumption: < 2 W
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 95% relative humidity, non-condensing
Protection Class: IP20
Electrical Isolation: 500 Vrms between input and output
Vibration Resistance: Compliant with IEC 60068-2-6
Shock Resistance: Compliant with IEC 60068-2-27
EMC Compliance: Meets EN 61000-6-2 and EN 61000-6-4 standards

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
