Bachmann|PCC201| PC Card

SKU: PCC201

Manufacturer: Bachmann
Product No.: PCC201
Condition：In stock
Product Type: PC Card
Product Origin: Austria
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

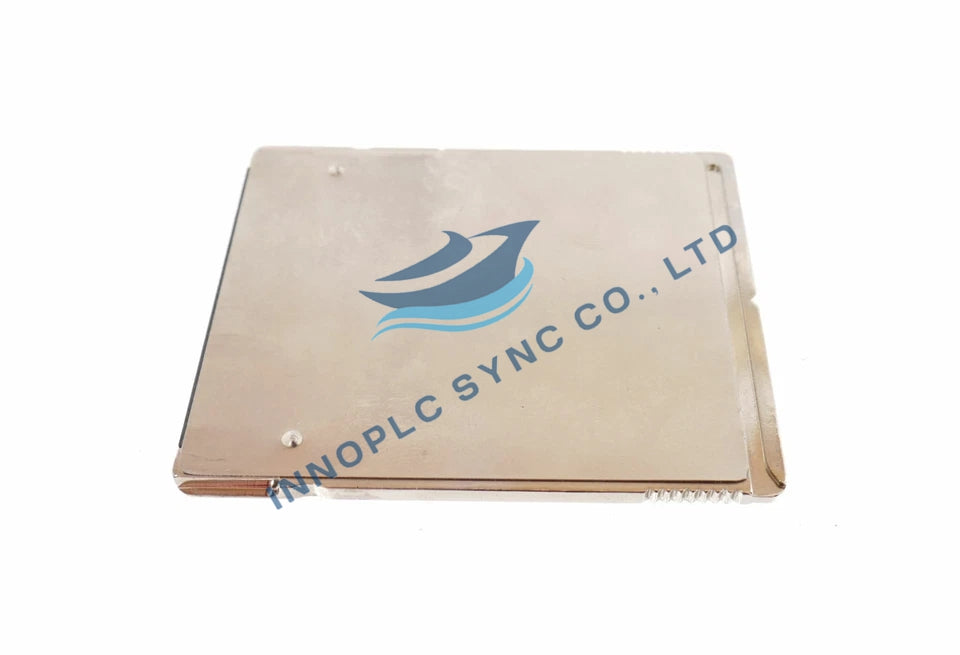

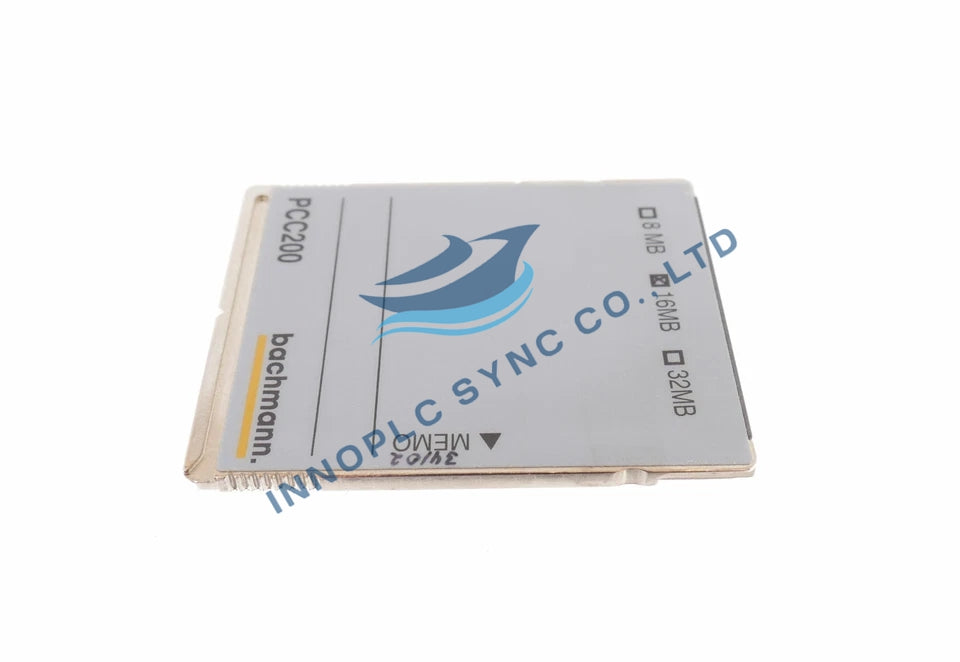

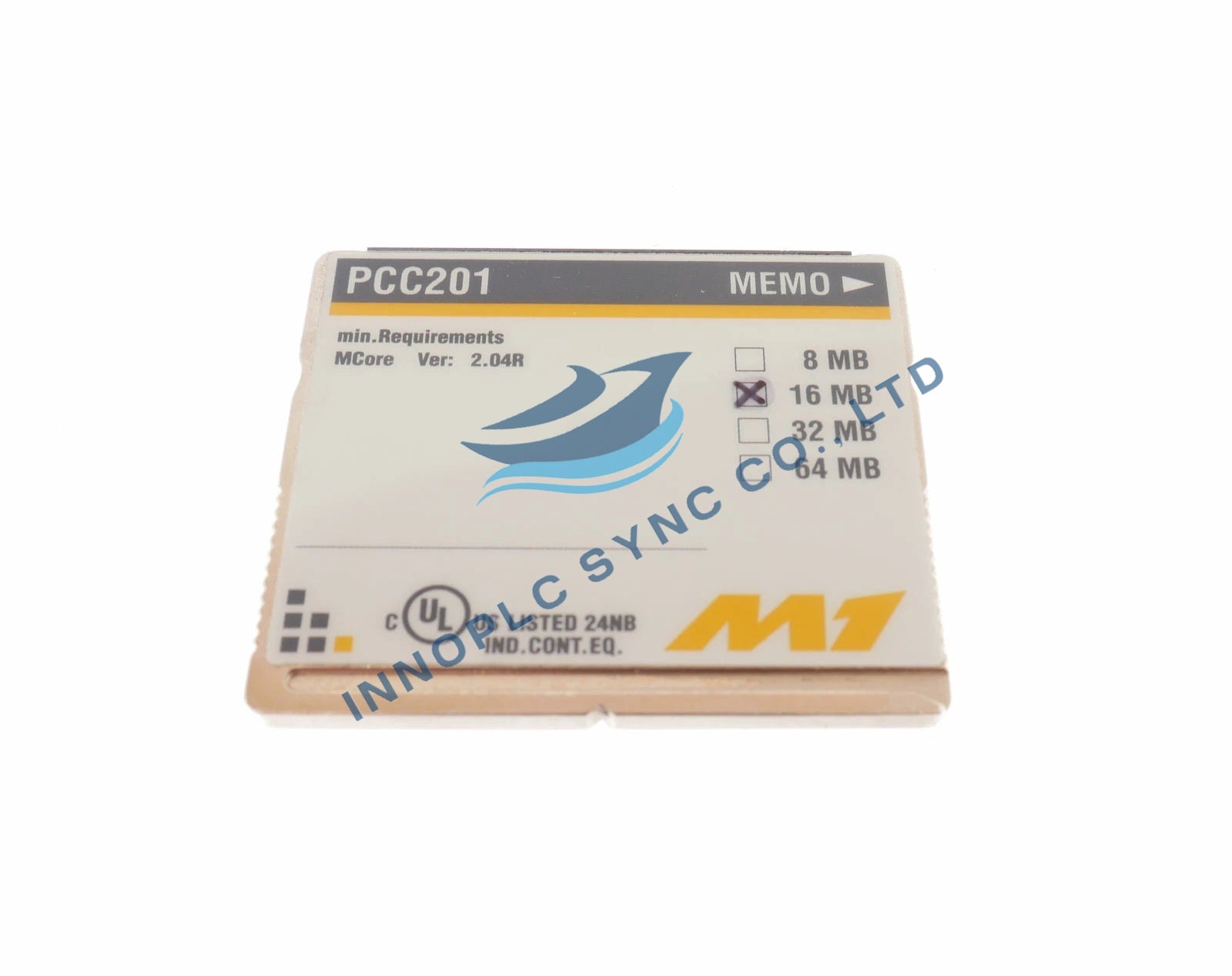

The Bachmann PCC201 is a PC card designed as a storage medium for the M200 control system, with capacities of 32 MB or 64 MB.

Features
Compact storage solution with write protection, programmable voltage, and compatibility with PCMCIA slots via an adapter.

Technical Specifications

Storage and Performance
Storage capacity 32 MB or 64 MB
Access width 16 bit
Operating voltage 5 V (minimum 3 V for FLASH memory)
Programming voltage 12 V

Operational Features
Write protection via operating software
No powerdown mode available
All information stored in Card Information Structure (CIS)

Environmental Conditions
Operating temperature 0 °C to +60 °C
Storage temperature -40 °C to +85 °C
Relative humidity during operation 5% to 95% (non-condensing)
Relative humidity during storage 5% to 95% (non-condensing)

Approvals
General CE, UKCA, cULus

Ordering Information
PCC201/32: 32 MB PC card
PCC201/64: 64 MB PC card
