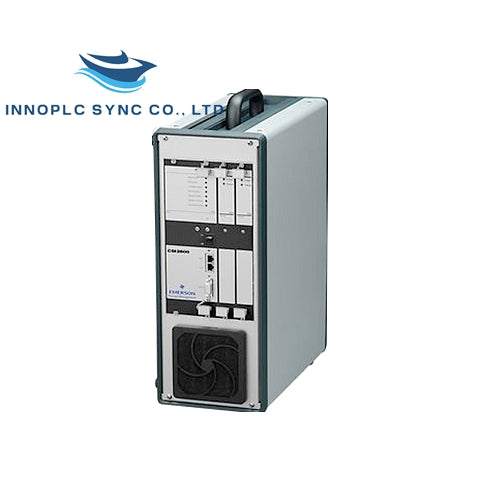

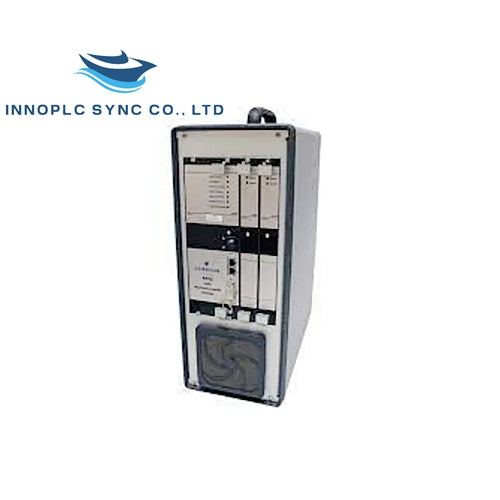

AMS 2600 | AMS2600 | Emerson | Machinery Health Expert

SKU: AMS 2600

Manufacturer: Emerson
Product No.: AMS 2600
Condition：In stock
Product Type: Machinery Health Expert
Product Origin: USA
Payment:T/T, Western Union
Weight: 10400g
Shipping port: Xiamen
Warranty: 12 months

Overview

The Emerson AMS 2600 Machinery Health Expert is a versatile and powerful tool designed for comprehensive machinery health monitoring and analysis.

Technical Specifications

Parameter	Specification
Channels	12 or 24 channels of simultaneous, continuous data acquisition
Live Plots	Updating 5 times per second
Runout Subtraction	Yes
Acceptance Regions	Yes
Drag and Drop Baseline	Yes, on live plots
3D Rotatable Cascade Plots	Yes
Integration	Compatible with AMS 2130 Machinery Health Analyzer
Speed/Phase Sensor Channels	2 or 4
User-Definable Analysis Parameters	24+ per channel
Monitoring	Unattended or automatic event-based, adaptive monitoring
Event Monitoring	Based on speed, overall vibration level, DC input level, or relay input, with Boolean combinations
Customized Filtered Orbits	Yes
Multi-Colored Plots	Yes, for easy analysis
Transient Analysis for Turbo Machinery
Processor	51,200 lines of resolution, 2 kHz Fmax simultaneous
Data Recording	More than 100 hours
Turbine Replay	Yes
PeakVue Processor	6400 lines, 40 kHz Fmax scanning
PeakVue Software	For exporting rolling element bearing and gearbox analysis
Sensors	Complete selection of accelerometers, dual temperature/accelerometers, velometers, tachometers, pressure sensors, and displacement probes
Mounting Pads and Magnetic Bases	Available
Training	Turbo Machinery Diagnostic training and PE credit hours provided by recognized leaders
Remote Support	Configuration or analysis support via dial-up or onsite service
Accessories	BNC cables, connectors, extension cables, spare parts
Software	AMS Machinery Manager

Dimensions

Parameter	Specification
Height	10 mm
Length	407 mm
Width	515 mm

Weight

Parameter	Specification
Device Weight	13.5 kg (29.8 lbs)
Case Dimensions	350 mm x 496 mm x 623 mm (13.75 in x 19.50 in x 24.5 in)
Case Weight	10.4 kg (23.0 lbs)

Operating Conditions

Parameter	Specification
Operating Temperature	0 to 48°C (32 to 118°F)
Relative Humidity	0-95%

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
