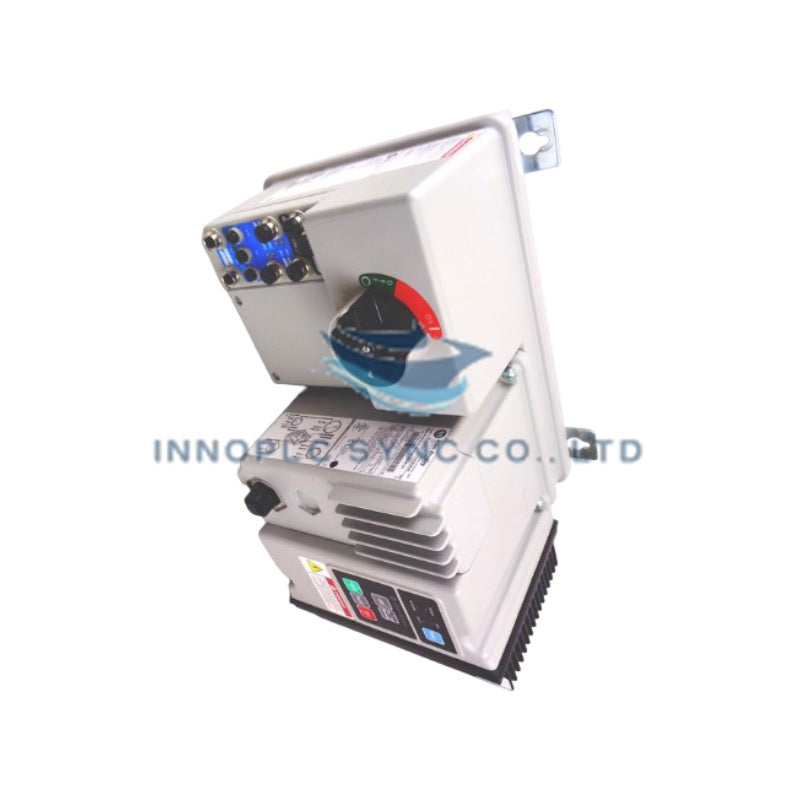

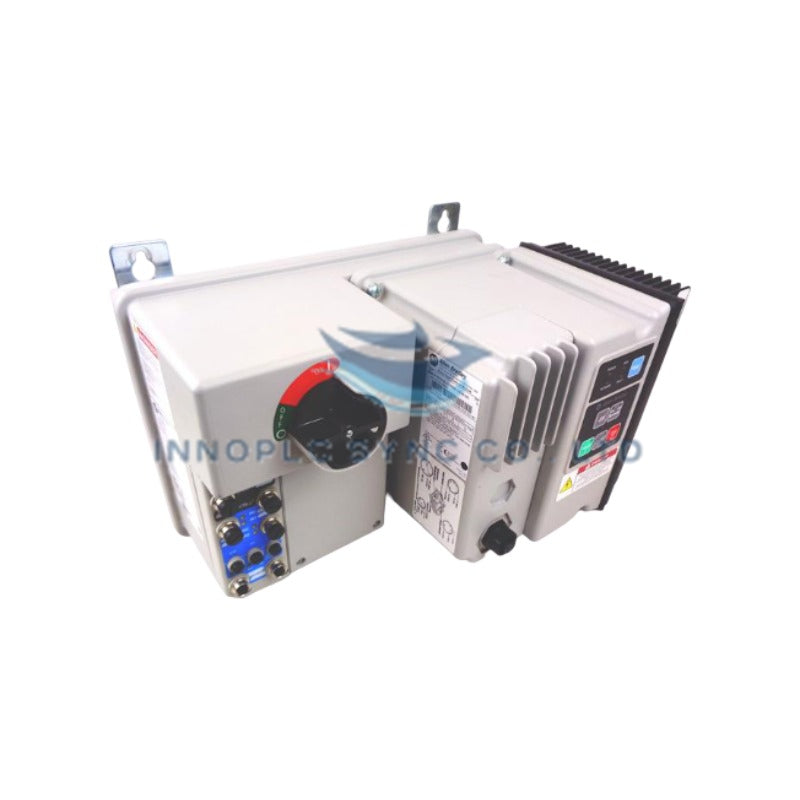

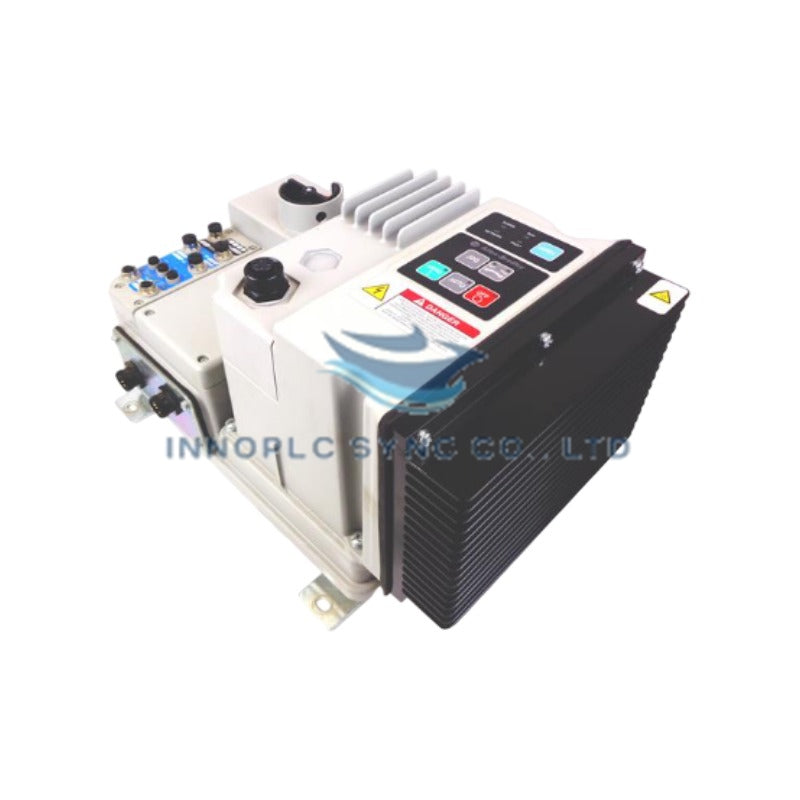

Allen-Bradley 284E-FVD1P4Z-10-RRW-3-EMI-OC Variable Frequency Drives
Configured for sensorless vector speed regulation in EtherNet/IP industrial architectures, the Allen-Bradley 284E-FVD1P4Z-10-RRW-3-EMI-OC (284E-FVD1P4Z Variable Frequency Drive) provides direct physical/electrical execution for three-phase induction motor speed control within IP67/NEMA 4 field environments.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 284E-FVD1P4Z-10-RRW-3-EMI-OC |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 10.43 kg (23.00 lbs) |
| Dimensions | Standard ArmorStart 284E IP67/NEMA 4 Enclosure Form Factor |
| Operating Temp | -10 deg C to +50 deg C |
| Power Consumption | 0.4 kW (0.5 HP) output rating |
| Input Voltage | 380-480 VAC, 3-phase |
| Control Power Supply | 24 VDC |
| Output Current Rating | 1.4 A at 0.4 kW (0.5 HP) |
| Short Circuit Rating | 10 A rating |
| Control Method | Sensorless Vector Control / V/Hz Control |
| Discrete Inputs | 2-4 Digital Inputs |
| Network Interface | EtherNet/IP Embedded Adapter |
| Enclosure Rating | IP67 / NEMA 4 Watertight |
| Special Options | Internal EMI Filter, Output Contactor, Control Circuit Reset |
Backplane Bus Communication & Deterministic Network Interfacing
The Allen-Bradley 284E-FVD1P4Z-10-RRW-3-EMI-OC integrates an onboard EtherNet/IP communication interface to establish high-velocity, deterministic network loops between field-mounted drive hardware and central Logix controllers. Utilizing sensorless vector algorithms, the drive adjusts output frequency and voltage to maintain tight torque regulation under changing mechanical loads. Dynamic I/O density scaling allows remote execution of 2-4 discrete field inputs directly over the Ethernet bus, bypassing cabinet backplanes. Integrated firmware flash compatibility supports rapid parameter synchronization, CIP motion profiles, and real-time drive status diagnostics without requiring supplementary network gateways.
Frequently Asked Questions
Q: What protection level does the IP67 / NEMA 4 enclosure provide for field installation?
A: The IP67 / NEMA 4 sealed enclosure protects internal drive electronics against dust ingress, low-pressure water jets, and temporary submersion, enabling direct machine mounting outside central electrical control cabinets.
Q: Is the 284E-FVD1P4Z-10-RRW-3-EMI-OC rated for hot-swapping or disconnect under full load?
A: No. Main 380-480 VAC 3-phase line power and 24 VDC control power must be isolated prior to disconnecting field power connectors or servicing internal contactor components to prevent arcing and electrical damage.
Q: How does the drive maintain sensorless vector speed control accuracy without an encoder feedback loop?
A: The onboard microprocessor estimates rotor flux and motor shaft speed in real time by measuring dynamic phase current waveforms and voltage vectors, delivering stable low-speed torque without hardware encoder feedback.
Field Installation Guidelines
Mount the drive directly onto a structural machine frame or wall using the integrated heavy-duty mounting flanges. Ensure a minimum clearance of 100 mm above and below the watertight enclosure to allow natural convection cooling across the external heat sink fins.
All power, control, and network connections must use factory-sealed IP67 quick-disconnect cables. Maintain cable shield integrity by securing grounding clamps to the metal conduit hubs. Ensure external 24 VDC control wiring and 380-480 VAC 3-phase power leads are properly torque-rated at connector interfaces to preserve environmental sealing and prevent moisture ingress.
