Allen-Bradley 2711P-T6M3A Operator Terminals

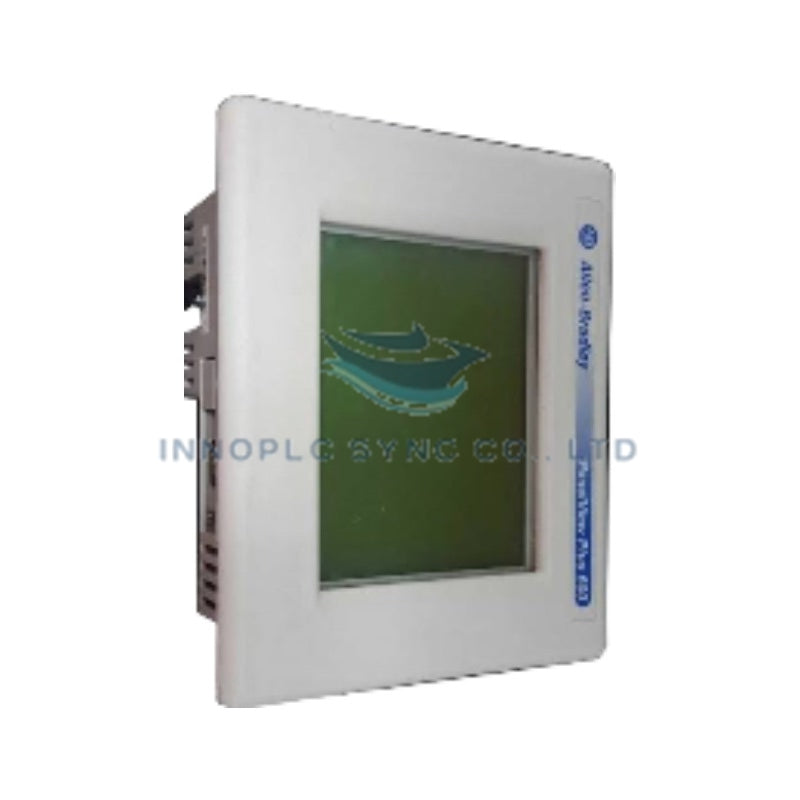

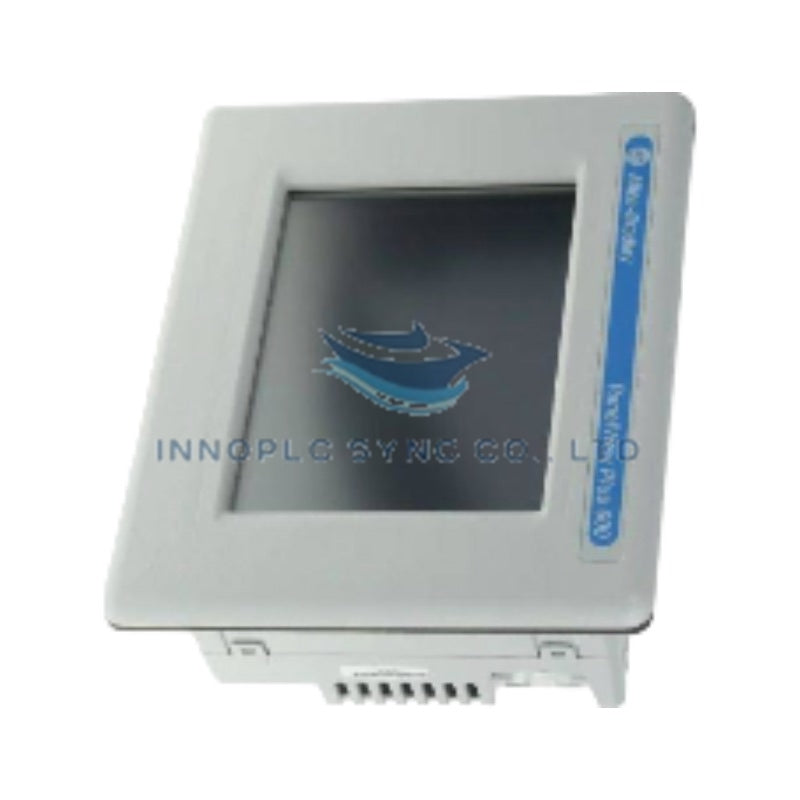

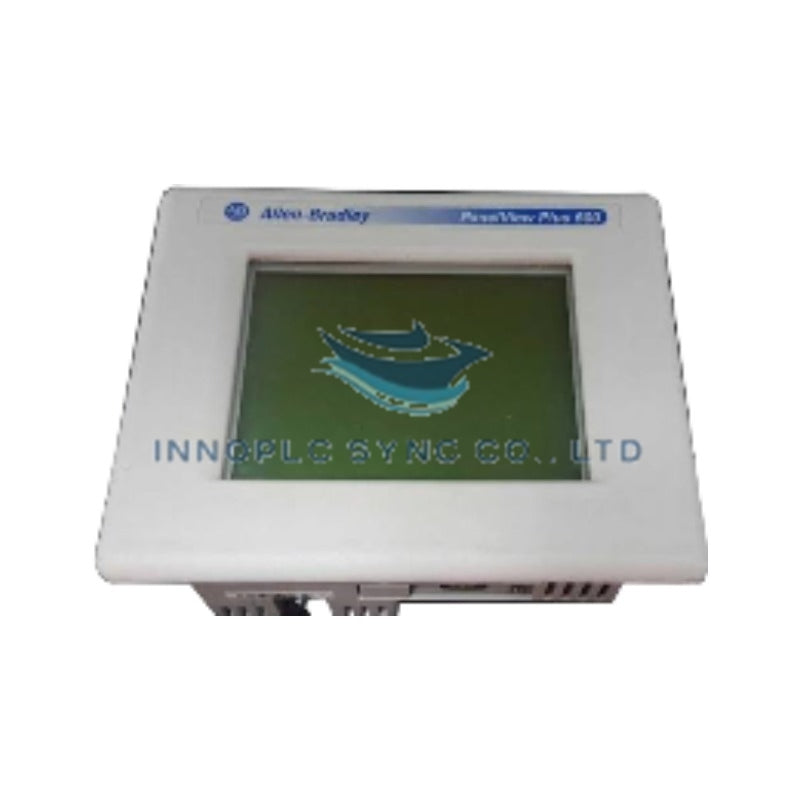

The Allen-Bradley 2711P-T6M3A is a discontinued PanelView Plus 600 operator terminal featuring a 5.5-inch grayscale touchscreen and a physical keypad. Designed for industrial automation systems, this HMI unit enables operators to monitor process variables, manage system diagnostics, and interface directly with programmable controllers through flexible communication options.
Display and Operator Input
The terminal incorporates a grayscale passive matrix FSTN (film compensated super-twist nematic) display measuring 5.5 inches with an active area of 112 x 84 mm and a resolution of 320 x 240 pixels. Operator interaction is supported via a combined analog resistive touchscreen and ten dedicated function keys (F1-F10), providing dual input methods for navigating screens and executing commands.
Communication and System Integration
Equipped with onboard Ethernet, RS-232, and USB ports alongside a DH-485 communication module, the 2711P-T6M3A connects seamlessly to multi-vendor and Allen-Bradley controller platforms. Supported protocols include TCP/IP, DF1, and DH-485, allowing simultaneous multi-channel communication for data collection and peripherals such as mice or flash drives.
Power and Environmental Specifications
Powered by an AC input voltage range of 85 to 264 VAC at 47 to 63 Hz, the unit eliminates the need for an external DC power supply. The flush-mounted enclosure is built for industrial panel installations, operating within a temperature range of 0 to 50 deg C (32 to 122 deg F).
| Parameter | Specification |
|---|---|
| Model | 2711P-T6M3A |
| Brand | Allen-Bradley |
| Series | PanelView Plus 600 |
| Display Size | 5.5 inches |
| Display Type | Grayscale Passive Matrix FSTN |
| Resolution | 320 x 240 pixels |
| Input Type | Touchscreen and 10 Function Keys (F1-F10) |
| Communication Ports | Ethernet, RS-232, USB, DH-485 |
| Input Power | 85 to 264 VAC, 47 to 63 Hz |
| Weight | 1.94 lbs (0.88 kg) |
Frequently Asked Questions
Q: What input methods does the 2711P-T6M3A support?
A: It supports dual operator input via an analog resistive touchscreen and ten physical function keys (F1-F10).
Q: What power supply is required for this terminal?
A: It operates directly on an AC power input ranging from 85 to 264 VAC at 47 to 63 Hz.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711P-B7C6D1 |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 2.66 kg |
| Dimensions | 356 mm x 279 mm x 203 mm |
| Operating Temp | 0 deg C to 55 deg C |
| Power Consumption | 70 W maximum (2.9 A at 24 VDC) |
| Display Type | Color active-matrix TFT |
| Resolution | 640 x 480 pixels |
| Memory | 64 MB non-volatile flash / RAM |
| Communication Ports | DH+, DH-485, RS-232, and USB |
| Input Voltage | 18-32 VDC (24 VDC nominal) |
Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling
The terminal facilitates real-time data monitoring through high-speed backplane bus communication protocols and deterministic network links. It executes screen navigation and tag updates by polling connected programmable logic controllers over Data Highway Plus (DH+) and DH-485 communication channels, as well as industrial serial and USB buses. Backplane bus communication velocity and I/O density scaling ensure synchronized alarm handling, user input validation, and graphical status rendering across distributed automation topologies without introducing packet latency.
Frequently Asked Questions
Q: Can the backlight assembly on this display be replaced in the field?
A: Yes, the internal display backlight assembly, designated as part number 2711P-RL7C2, is field-replaceable using authorized maintenance procedures after isolating system power.
Q: How is runtime application memory managed on this terminal?
A: Runtime application files are stored in internal non-volatile flash memory or loaded via removable storage media inserted into the side-access storage slot.
Q: What DC input voltage range is acceptable for continuous operation?
A: The terminal requires a 24 VDC nominal power supply, operating continuously within an input voltage range of 18 to 32 VDC.
Field Installation Guidelines
- Cut out the panel mounting aperture strictly according to manufacturer dimensional templates to ensure proper gasket compression and NEMA seal integrity.
- Secure the unit into the enclosure using all mounting clips tightened evenly around the perimeter of the display bezel.
- Connect DH+ and DH-485 communication cables using appropriate shielded twinaxial media, terminating shield drains correctly at the system ground bus.
- Verify that supply voltage boundaries match the 18-32 VDC rating and ensure proper polarity prior to energizing the terminal input wiring blocks.
