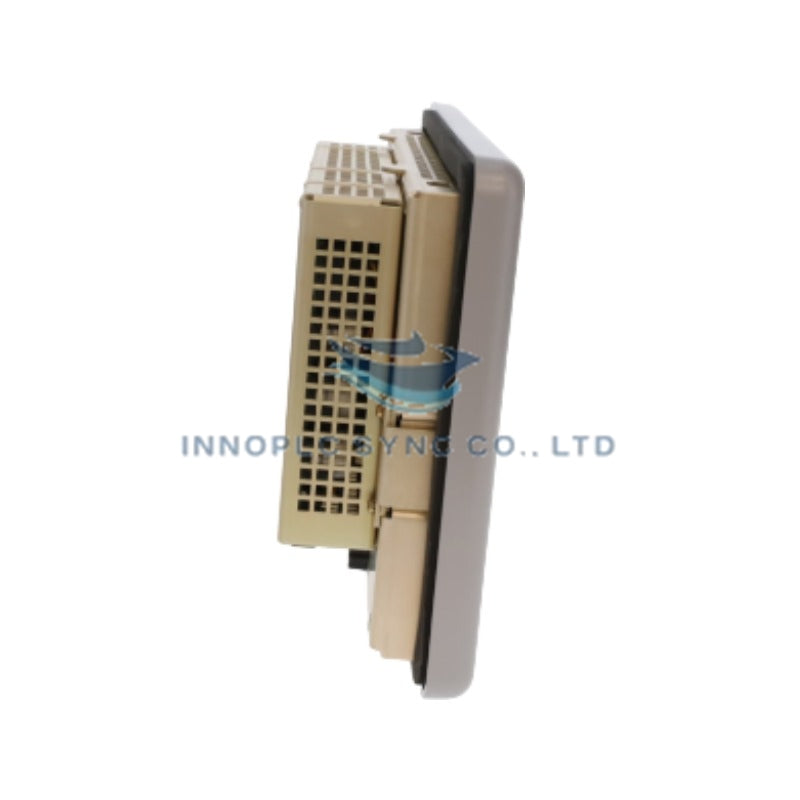

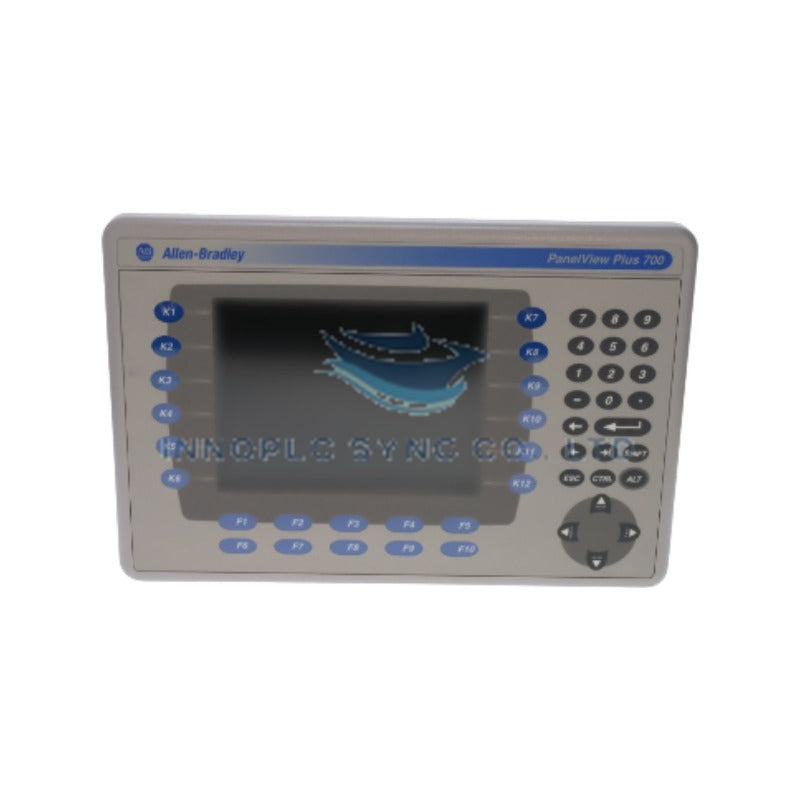

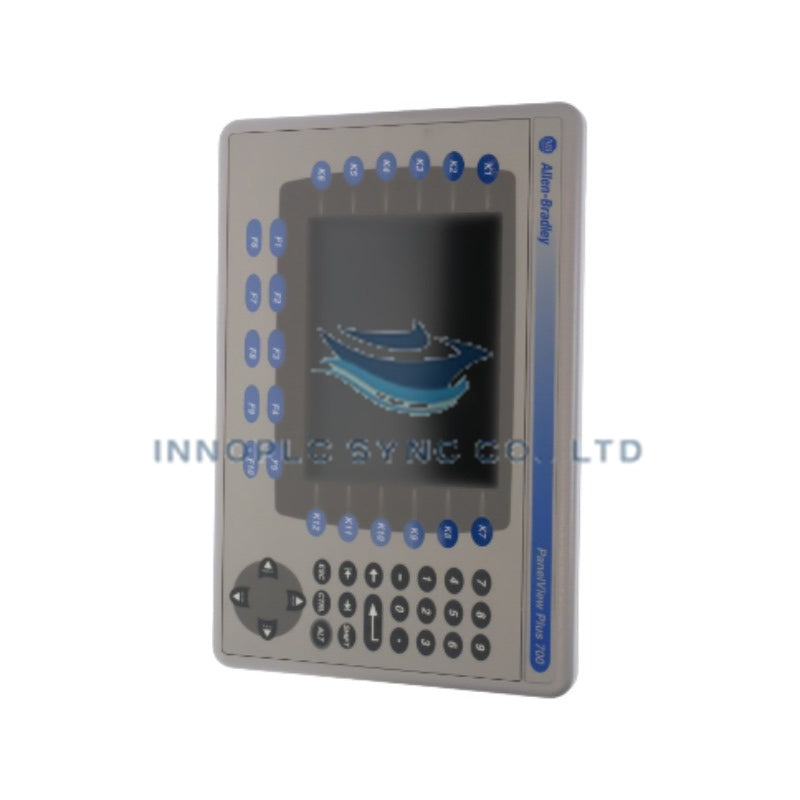

Allen-Bradley 2711P-K7C6A2 human-machine interface
The Allen-Bradley 2711P-K7C6A2, also cataloged as the 2711P-K7C6A2 operator interface terminal, operates as a dedicated hardware component for human-machine interface visualization and plant-floor data exchange within industrial control networks.
Suffix Breakdown & Model Matrix
The PanelView Plus 700 operator terminal utilizes a structured catalog nomenclature:
- 2711P-K7C6A2: PanelView Plus 700 terminal featuring a 6.5-inch color display, tactile keypad input, DH+ and DH-485 communication protocols, and an 85-264 VAC power supply.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711P-K7C6A2 |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 2.49 kg |
| Dimensions | 356 mm x 279 mm x 203 mm |
| Operating Temp | 0 deg C to 55 deg C |
| Power Consumption | 120 VA typical |
| Display Type | Color active-matrix TFT |
| Resolution | 640 x 480 pixels |
| Memory | 128 MB |
| Communication Ports | DH+, DH-485, RS-232, and Ethernet |
| Input Voltage | 85-264 VAC, 47-63 Hz |
Profinet / EtherNet/IP Deterministic Networks and I/O Integration
The terminal facilitates real-time data monitoring through high-speed backplane bus communication protocols and deterministic network links. It executes screen navigation and tag updates by polling connected programmable logic controllers over Data Highway Plus (DH+) and DH-485 communication channels. Backplane bus communication velocity and firmware flash compatibility ensure synchronized alarm handling, user input validation, and graphical status rendering across distributed automation topologies without introducing packet latency.
Frequently Asked Questions
Q: Can the backlight assembly on this display be replaced in the field?
A: Yes, the internal CCFL backlight assembly, designated as part number 2711P-RL7C, is field-replaceable using authorized maintenance procedures after isolating system power.
Q: How is runtime application memory managed on this terminal?
A: Runtime application files are stored in internal non-volatile flash memory or loaded via removable memory cards inserted into the side-access storage slot.
Q: What input power range is acceptable for continuous operation?
A: The terminal accepts an AC input range of 85-264 VAC at 47-63 Hz, requiring a stable power source protected against line surges.
Field Installation Guidelines
- Cut out the panel mounting aperture strictly according to manufacturer dimensional templates to ensure proper gasket compression and NEMA seal integrity.
- Secure the unit into the enclosure using all mounting clips tightened evenly around the perimeter of the display bezel.
- Connect DH+ and DH-485 communication cables using appropriate shielded twinaxial media, terminating shield drains correctly at the system ground bus.
- Verify that supply voltage boundaries match the 85-264 VAC rating prior to energizing the terminal input wiring blocks.
