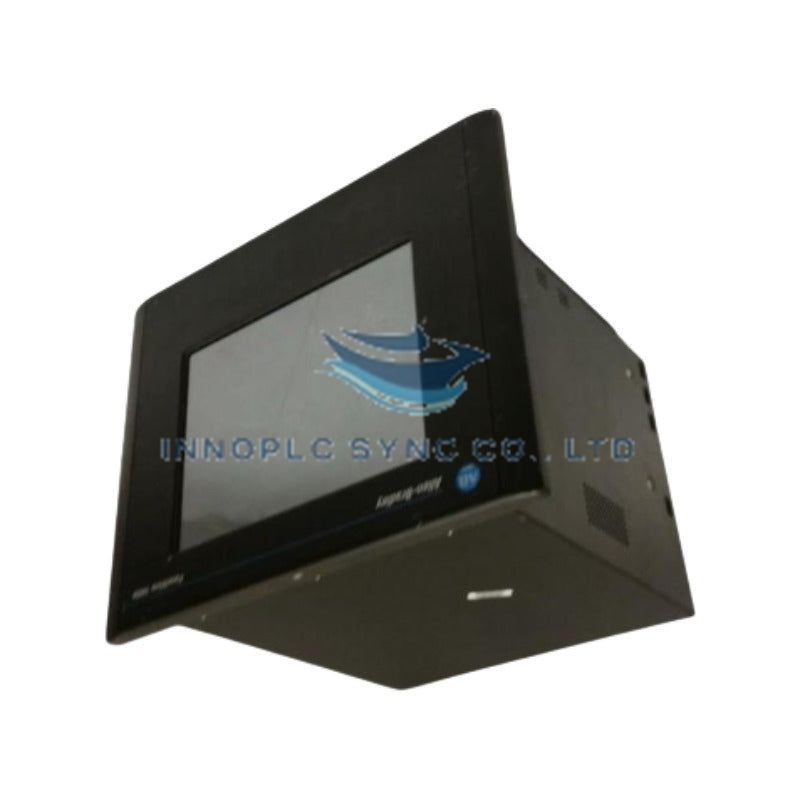

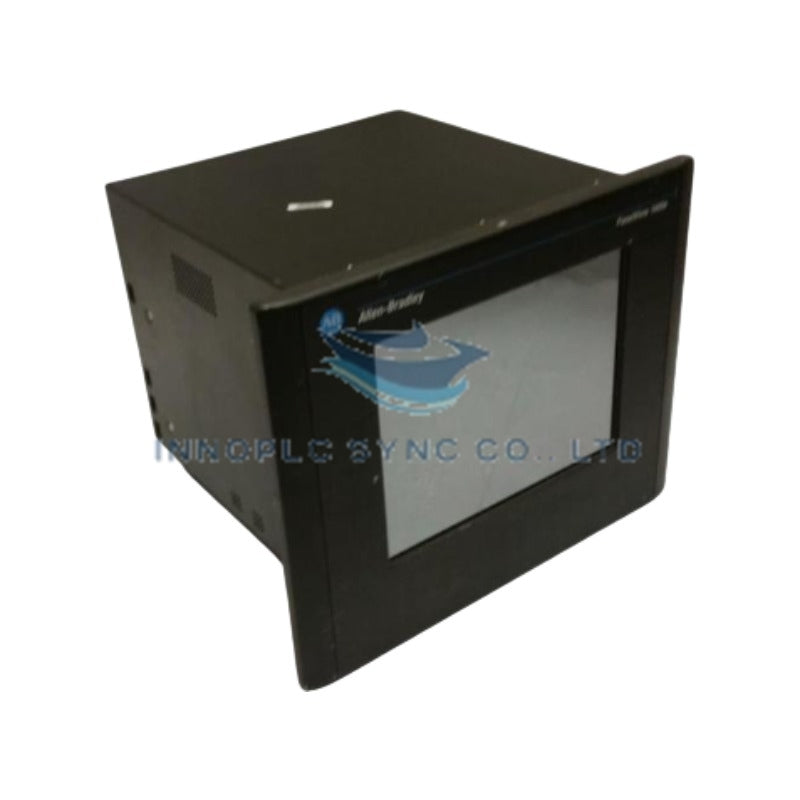

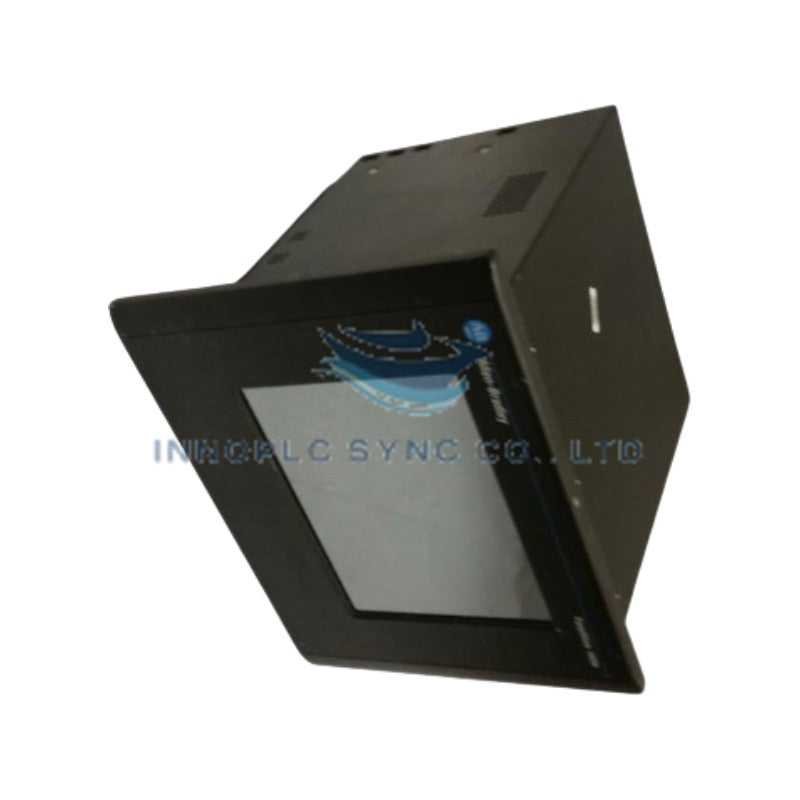

Allen-Bradley 2711E-T14C15 PanelView 1400e Operator Terminal
The Allen-Bradley 2711E-T14C15 , also cataloged as the 2711E-T14C15 Operator Interface, operates as a dedicated hardware component for process visualization and operator control entry within Allen-Bradley PLC and DCS platforms. It executes real-time graphic displays and command input via a 14-inch color CRT touchscreen display powered by an selectable 115/230 VAC line input.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711E-T14C15 |
| Brand | Allen-Bradley |
| Origin | Standard Industrial Manufacturing |
| Weight | 24.00 lbs (10.89 kg) |
| Dimensions | Standard PanelView 1400e Bezel Dimensions |
| Operating Temp | Standard Control Cabinet Ambient Range |
| Power Consumption | 115/230 VAC Power Input |
| Display Size | 14-inch |
| Display Type | Color CRT Touchscreen |
| Interface Type | Touchscreen Input |
| Category | Operator Interface / HMI |
Profinet and EtherNet/IP Deterministic Network Integration
The terminal interfaces across industrial control networks to exchange tag data and operator inputs with programmable logic controllers. Its internal firmware flash compatibility ensures persistent screen memory storage and rapid execution of graphic object state changes, maintaining low communication latency across system backplane connections and network modules.
Frequently Asked Questions
Q: What power supply line configurations must be verified before energizing this unit? A: The terminal supports 115/230 VAC power input; technicians must verify that the internal or rear voltage selection jumpers/terminals match the incoming line supply voltage before applying AC power.
Q: What installation precautions apply when mounting this 24.00 lbs CRT terminal into an enclosure cut-out? A: The panel cut-out must be structurally reinforced to support the 24.00 lbs static weight, and mounting clamps should be torqued evenly around the perimeter to ensure a proper environmental seal against the cabinet face.
Field Installation Guidelines
- Cut the mounting panel strictly according to PanelView 1400e cutout templates, ensuring the surrounding metal sheet can withstand heavy chassis loads without flexing.
- Torque all panel mounting clips in an alternating pattern to establish an airtight perimeter gasket seal without distorting the outer front bezel.
- Route AC power lines through dedicated conduit, grounding the terminal's earth stud to the main cabinet ground bar to mitigate electrical noise and transients.
