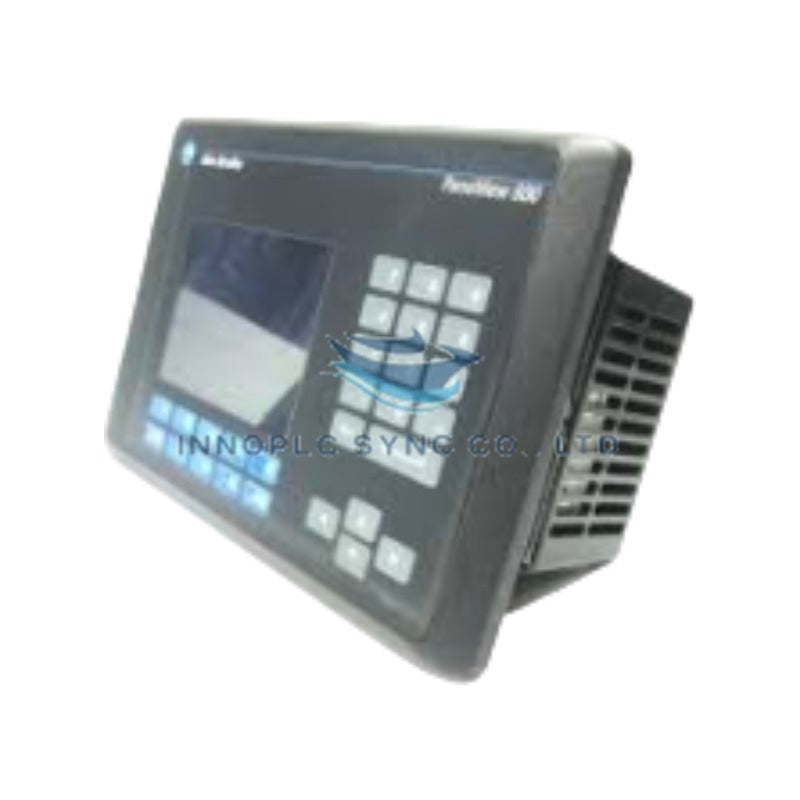

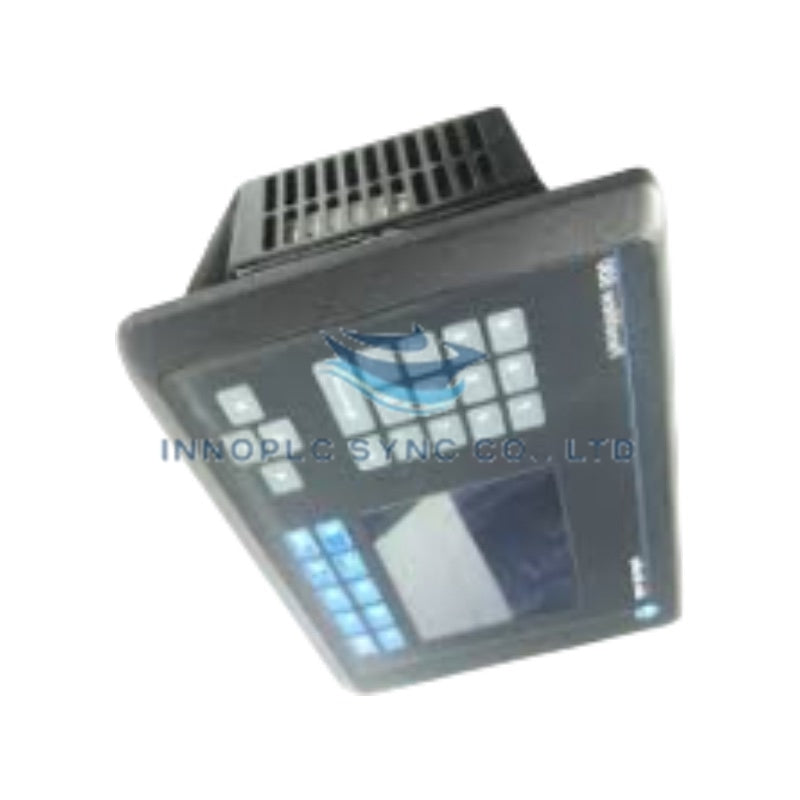

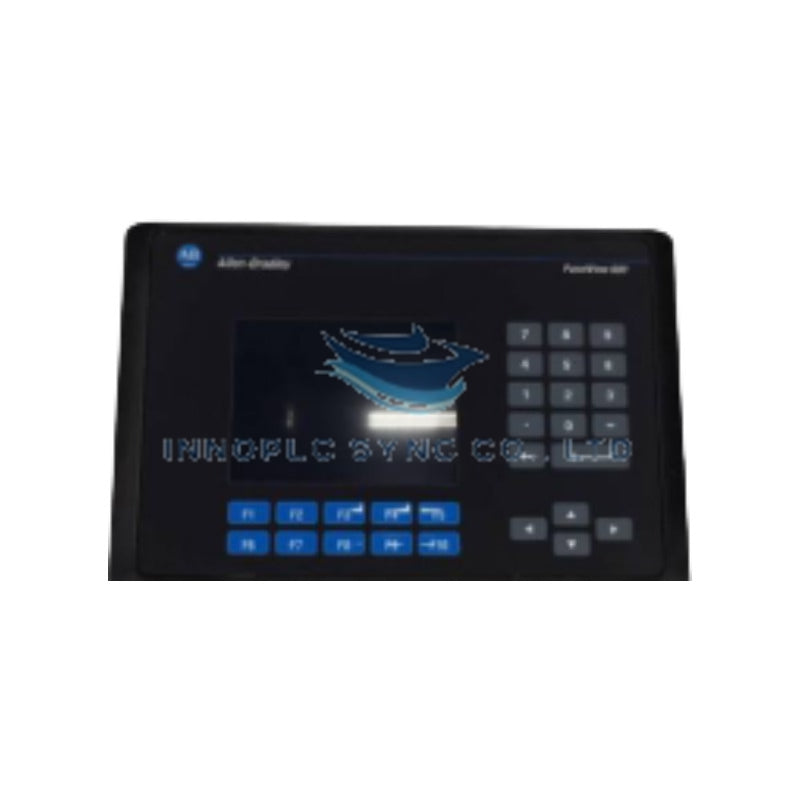

Allen-Bradley 2711-K6C3L1 PanelView 600 HMI
The Allen-Bradley 2711-K6C3L1 is a PanelView 600 operator terminal designed to provide real-time visualization and control for industrial automation processes. Featuring a 5-inch color active matrix TFT display and an integrated keypad with 10 programmable function keys, this human-machine interface delivers robust performance and reliable data exchange in demanding factory environments.
Display and Input Architecture
The terminal features a 320 x 234 pixel color TFT display with a viewable area of 115 x 86 mm, illuminated by a cold cathode fluorescent backlight rated for a 50,000-hour half-life at 25 deg C. Operator input is managed through an embedded keypad assembly rated for up to 1 million actuations, comprising numeric, navigation, and 10 dedicated function keys (F1 through F10).
Communication and Memory Specifications
For process data exchange, the unit is equipped with a primary DH-485 communication port supporting direct network connectivity with controllers such as the SLC 500 and PLC-5. Additionally, it features a 9-pin RS-232 printer port for alarm and event logging. The internal flash memory provides 240 KB for storing application screens and configuration data.
Power and Environmental Ratings
Powered by an external 18 to 32 VDC supply with a nominal rating of 24 VDC, the terminal includes integrated status indicators for communication and fault monitoring. It is built to meet NEMA Type 12/13, 4X (indoor use only), IP54, and IP65 enclosure standards, ensuring dependable protection against dust and moisture in industrial settings.
| Parameter | Specification |
|---|---|
| Model | 2711-K6C3L1 |
| Brand | Allen-Bradley |
| Product Family | PanelView Standard Terminals (PanelView 600) |
| Display Type | Color active matrix TFT |
| Display Size | 5 in. (115 x 86 mm / 4.54 x 3.4 in.) |
| Resolution | 320 x 234 pixels |
| Input Type | Keypad with 10 function keys (F1...F10) |
| Integrated Memory | 240 KB (application screens) |
| Communication Ports | DH-485, RS-232 (Printer) |
| Input Voltage Range | 18-32 VDC (Nominal 24 VDC) |
| Enclosure Ratings | NEMA Type 12/13, 4X (Indoor), IP54, IP65 |
| Dimensions (H x W x D) | 192 x 290 x 116 mm (7.55 x 11.40 x 4.57 in.) |
| Weight | 4.94 lbs (2.24 kg) |
| Series | A through L |
Frequently Asked Questions
Q: What primary communication protocol does the Allen-Bradley 2711-K6C3L1 use for control data exchange?
A: It utilizes a DH-485 communication port as its primary interface for connecting with compatible controllers like the SLC 500 and PLC-5.
Q: What is the purpose of the RS-232 port on this operator terminal?
A: The RS-232 port is primarily dedicated to communicating with alarm and event printers.
Q: What power supply range is required to operate this HMI?
A: The terminal operates on an external DC power source ranging from 18 to 32 VDC, with a nominal rating of 24 VDC.
