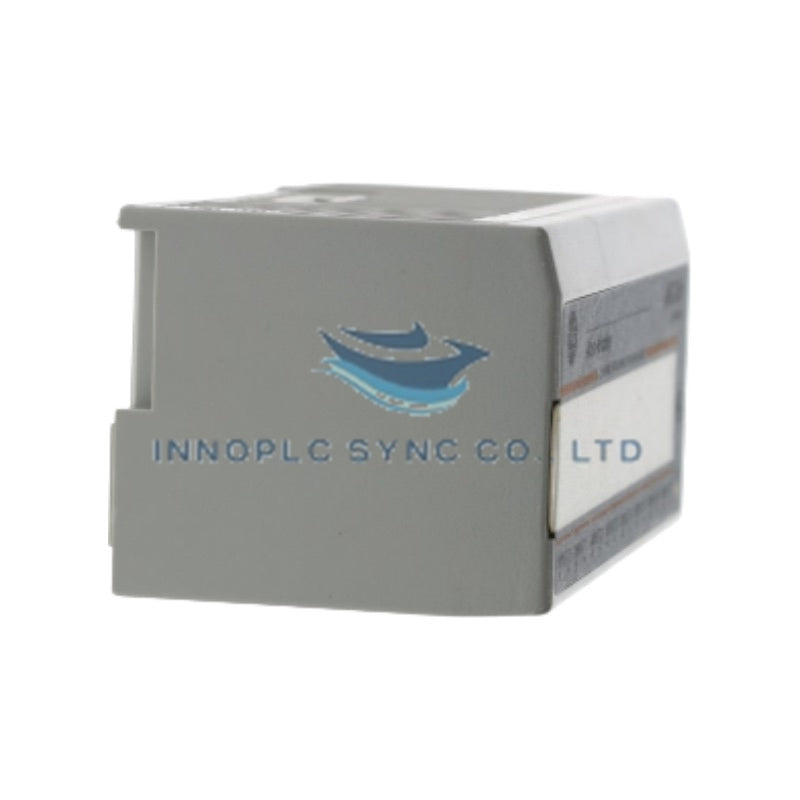

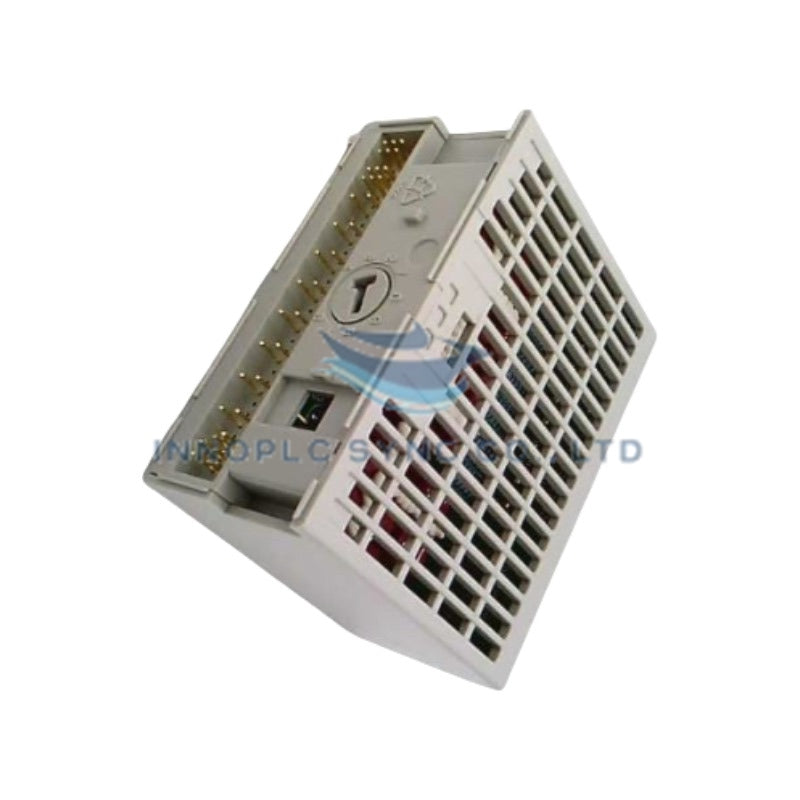

Allen-Bradley 1794-IR8 FLEX I/O RTD Input Module
The Allen-Bradley 1794-IR8 is an 8-channel analog RTD input module designed for the Allen-Bradley FLEX I/O industrial automation architecture. Engineered with a 16-bit resolution, this module provides precise temperature and resistance measurement capabilities across an input range of 1 to 433 Ohm. It mounts onto a standard DIN rail within distributed control cabinets, offering reliable analog data acquisition for industrial process monitoring.
Analog Input and Resolution
The 1794-IR8 features 8 dedicated channels configured for Resistance Temperature Detector (RTD) inputs. With its 16-bit resolution, the module delivers accurate conversion of resistance changes into digital values, ensuring high-fidelity signal monitoring across its 1 to 433 Ohm nominal input range.
Mechanical and Installation Design
Built for modular FLEX I/O systems, the module utilizes a compact form factor optimized for DIN rail mounting. It is lightweight at 0.24 lbs, allowing for efficient space utilization inside industrial enclosures while maintaining secure mechanical and electrical connections to the system backplane.
| Parameter | Specification |
|---|---|
| Model | 1794-IR8 |
| Brand | Allen-Bradley |
| Product Family | FLEX I/O |
| Product Type | RTD Input Module |
| Number of Inputs | 8 channels |
| Input Type | RTD |
| Input Range | 1-433 Ohm |
| Resolution | 16 Bit |
| Mounting Style | DIN Rail Mount |
| Weight | 0.24 lbs |
Frequently Asked Questions
Q: How many input channels does the Allen-Bradley 1794-IR8 module support?
A: The module supports 8 dedicated input channels for RTD sensors.
Q: What is the nominal input resistance range of the 1794-IR8?
A: The nominal input range is 1 to 433 Ohm.
Q: What type of mounting style is used for this FLEX I/O module?
A: It is designed for standard DIN rail mounting.
