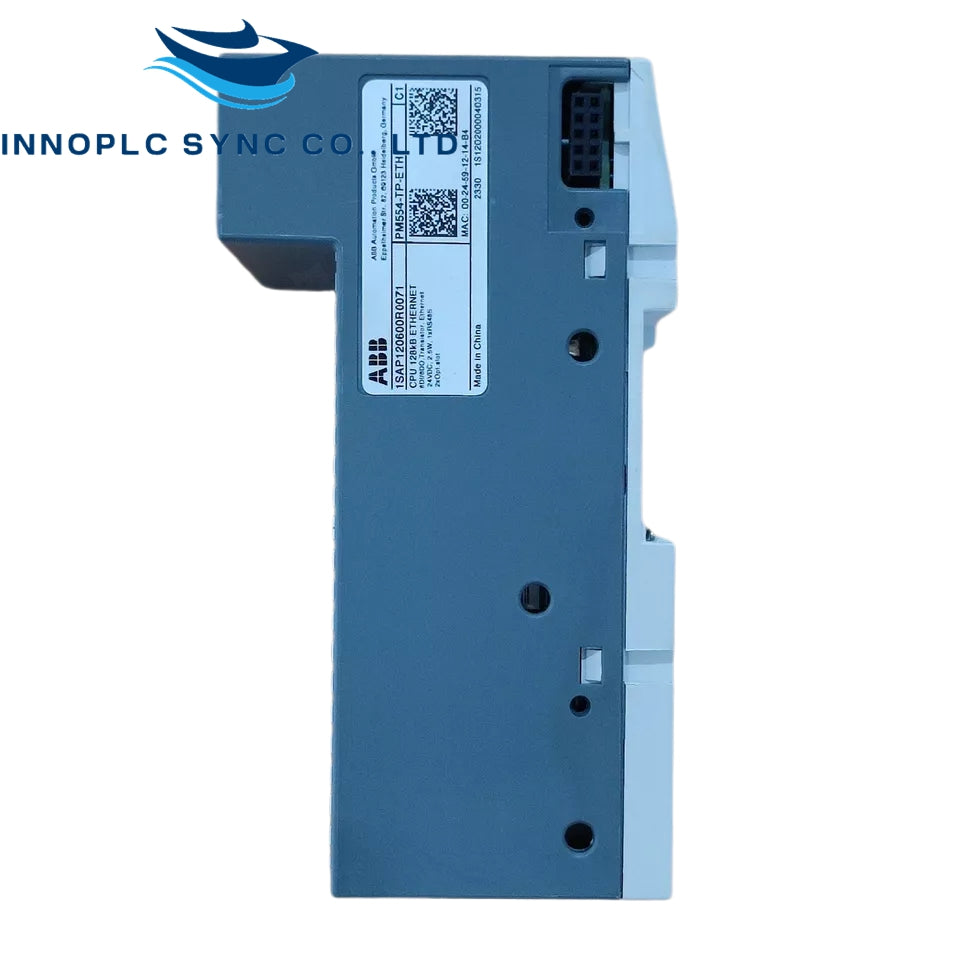

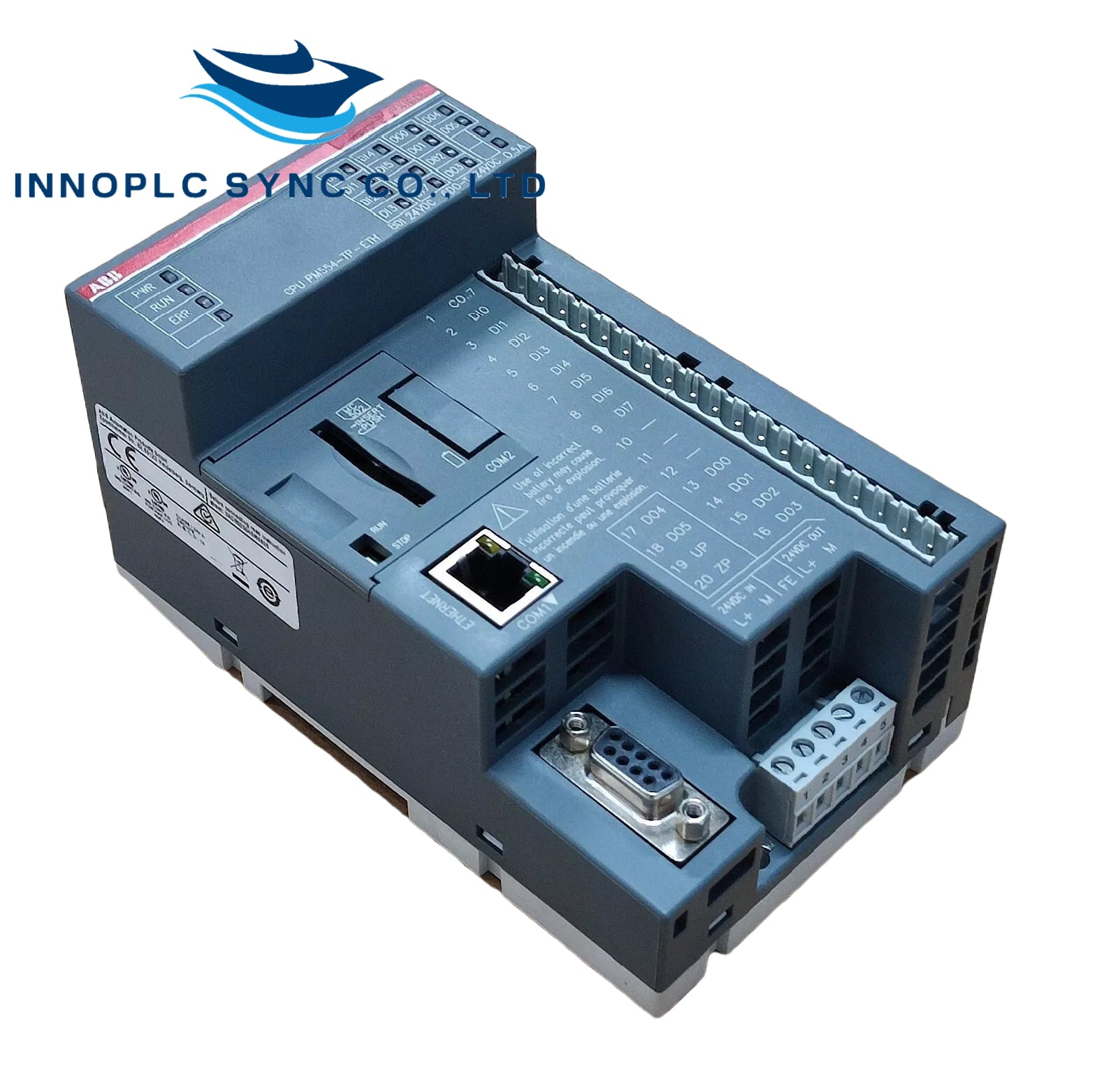

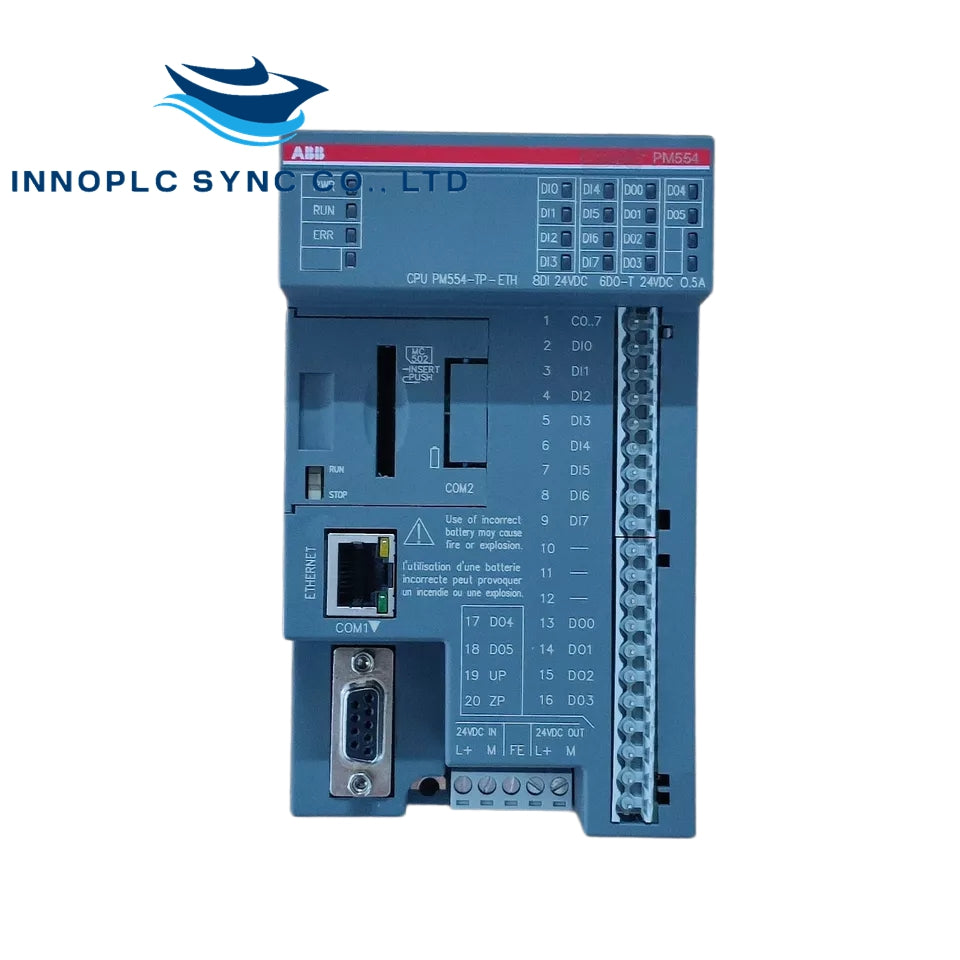

ABB PM554 Programmable Logic Controller

SKU: PM554

Manufacturer: ABB
Product No.: PM554
Condition：In stock
Product Type: Programmable Logic Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 190g
Shipping port: Xiamen
Warranty: 12 months

Description
ABB PM554-TP-ETH is a programmable logic controller within the AC500 series, designed for industrial automation with integrated Ethernet and serial communication.

Features

Built-in Ethernet interface for network connectivity
Includes RS-485 port for serial communication
Offers digital input/output functionality
Supports optional expansion modules

Technical Specifications
Controller Type

PLC (Programmable Logic Controller)
Part of AC500 Series

Product Identification

Model: PM554-TP-ETH
Product ID: 1SAP120600R0071
EAN: 4016779878739

Processing Performance

Processing Time: 0.00008 ms per instruction
User Memory Size: 142 kB
Memory Type for Data: RAM

Digital I/O

Digital Inputs: 8 channels
Digital Outputs: 6 channels
Configurable I/O: None

Power Supply

Rated Voltage: 24 VDC
Operating Range: 20.4 to 28.8 VDC

Communication Interfaces

Industrial Ethernet: 1 port
RS-485: 1 port
Optional Expansion: 2 module slots

Physical Properties

Depth: 74 mm
Height: 135 mm
Width: 82 mm
Net Weight: 0.287 kg
Gross Weight: 0.44 kg
