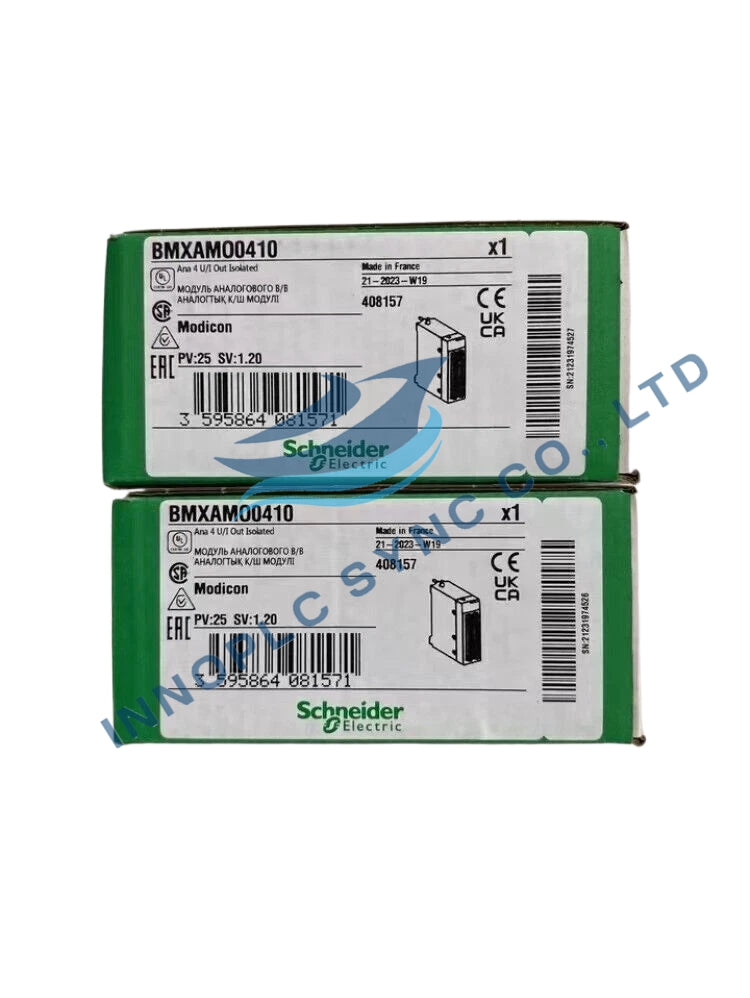

SCHNEIDER|BMXAMO0410| Analog Output Module
SKU: BMXAMO0410

  • Manufacturer: SCHNEIDER

  • Product No.: BMXAMO0410

  • Condition：Persediaan

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 42g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description
Schneider Electric BMXAMO0410 analog output module for Modicon X80 automation platform with isolated channels and multiple output types.

Features

  • 4 configurable analog outputs
  • Galvanic isolation between channels and ground
  • High accuracy and low temperature drift

Technical Specifications

  • Platform compatibility: Modicon X80
  • Analog output types:
    • Current: 0–20 mA, 4–20 mA
    • Voltage: ±10 V
  • Resolution: 15-bit + sign
  • Output accuracy:
    • ≤ 0.2% FS (full scale) at 0–60 °C
    • 0.1% FS at 25 °C
  • Temperature drift: 45 ppm/°C for all ranges
  • Isolation voltage:
    • 1400 V DC channel to ground and bus
    • 750 V DC between channels
  • Load impedance:
    • ≥ 1000 Ω for ±10 V
    • ≤ 500 Ω for current outputs
  • ** Crosstalk attenuation**: ≥ 80 dB
  • Common mode rejection: 100 dB
  • Conversion time: ≤ 1 ms
  • Max output range:
    • 0–21 mA for current
    • ±10.5 V for voltage
  • Fault modes: Configurable or predefined
  • MTBF: 1,000,000 hours
  • Power supply: Via backplane
  • Current consumption:
    • 150 mA at 3.3 V DC
    • 140 mA at 24 V DC
  • Power dissipation:
    • 3.6 W max at 24 V DC
    • 0.51 W max at 3.3 V DC
  • LED indicators:
    • 1 x Green (RUN – Module operation)
    • 1 x Red (ERR – Module error)
    • 1 x Red (I/O – I/O fault)
    • 1 x Green per channel (diagnostics)
  • Environmental ratings:
    • Operating temp: 0–60 °C
    • Storage temp: -40–85 °C
    • Humidity: 5–95% RH non-condensing
    • IP rating: IP20
    • Altitude: Up to 2000 m (derated up to 5000 m)
  • Certifications: CE, RCM, CSA, EAC, UL, ABS
  • Standards compliance: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010
  • Vibration resistance: 3 gn
  • Shock resistance: 30 gn
  • Weight: 0.15 kg net
  • Packaging 1:
    • Unit type: PCE
    • Quantity: 1
    • Dimensions: H 5.5 cm x W 11.0 cm x L 11.5 cm
    • Weight: 211 g
  • Packaging 2:
    • Unit type: S02
    • Quantity: 15
    • Dimensions: H 15 cm x W 30 cm x L 40 cm
    • Weight: 3.5 kg
