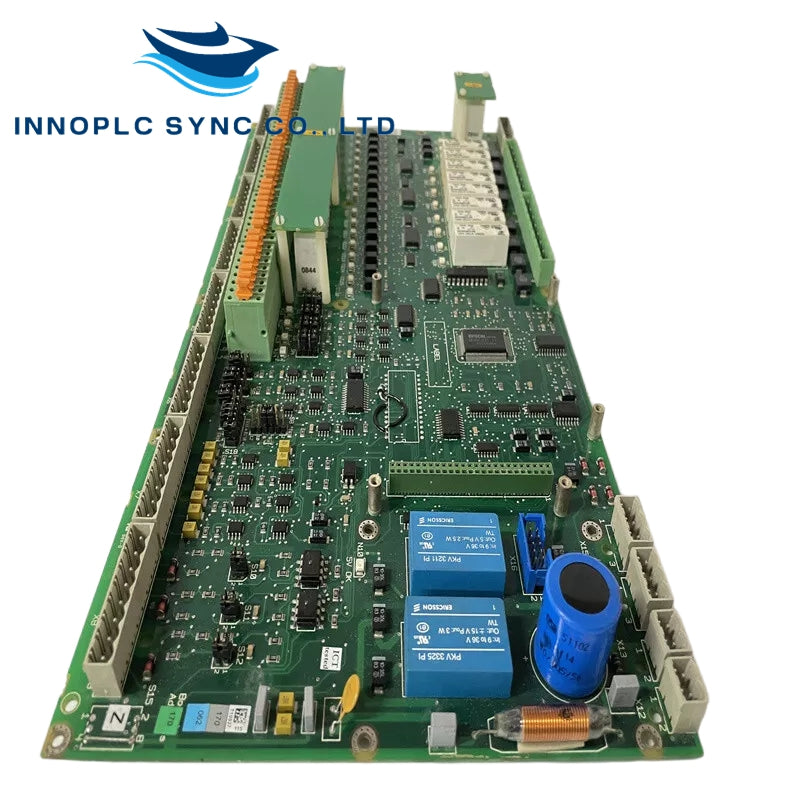

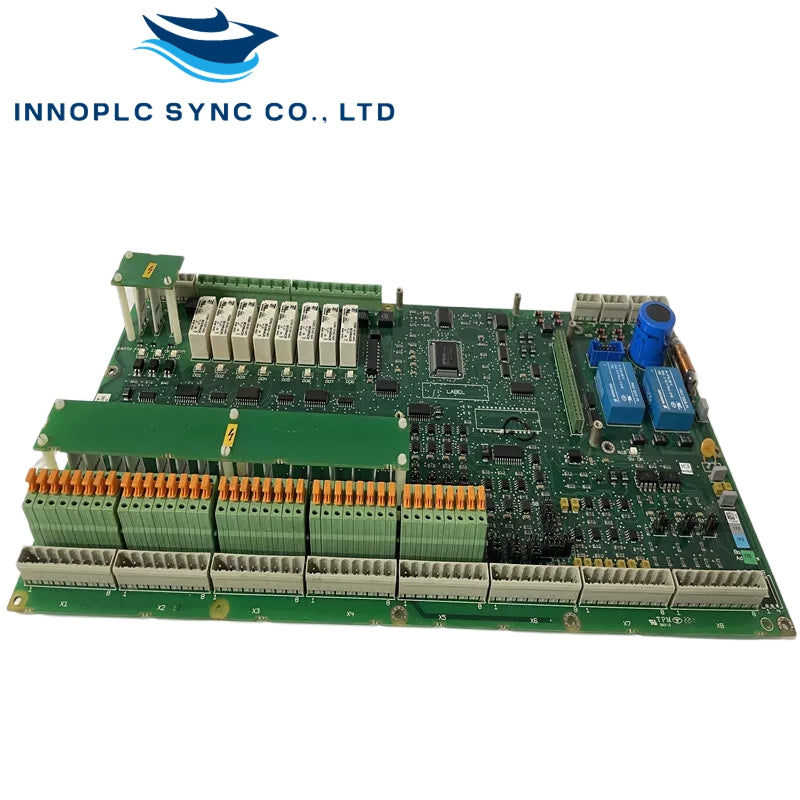

ABB |DSAI301| Analog Input Module
Overview
The ABB DSAI301 is an advanced analog input module designed for precise data acquisition in industrial automation systems.
Features
- High-resolution analog inputs for accurate measurements
- Designed for easy integration into existing control systems
- Built for reliability in challenging industrial environments
Technical Specifications
Analog Input Channels
- Number of analog inputs: 8 channels
- Supported signal types: 0–20 mA, 4–20 mA, 0–10 V
Resolution
- Analog inputs: 16-bit
Response Time
- Analog inputs: <5 ms
Load Cell Interface
- Load cell signal support: 0–20 mA, 4–20 mA, 0–10 V
- Current source for sensor: Configurable through jumpers
- Shunt resistor for current input signals: 500 ohm
Power Supply
- Voltage: 24 V DC (±10%)
- Maximum current consumption: 300 mA
Operating Temperature
- Range: -20°C to +70°C
Isolation
- Channel-to-system isolation: 1000 V AC
Dimensions
- Size: 110 mm × 65 mm × 80 mm
Weight
- Approximately 250 g
