SCHNEIDER|TSXCTY2A|Counter Module

SKU: TSXCTY2A

Manufacturer: SCHNEIDER
Product No.: TSXCTY2A
Condition：In stock
Product Type: Counter Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 75g
Shipping port: Xiamen
Warranty: 12 months

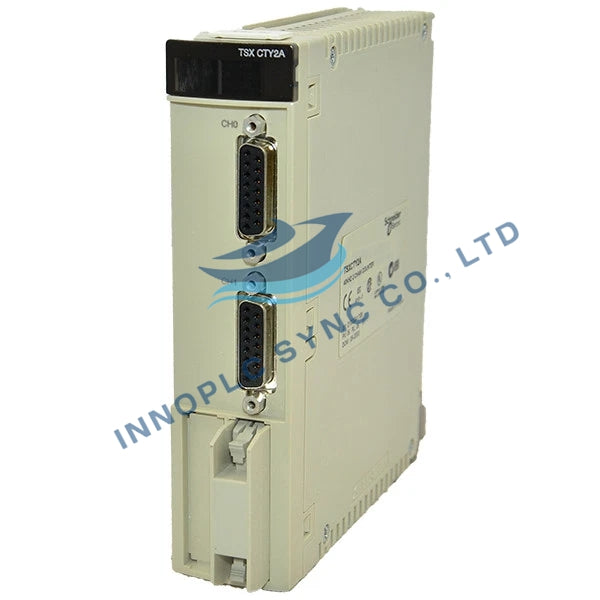

Schneider Electric TSXCTY2A Counter Module

Description
Schneider Electric TSXCTY2A is a dual-channel counter module for the Modicon Premium automation platform, designed for high-speed counting with encoder and sensor inputs.

Features

Supports 40 kHz counting frequency with multiple input types
Includes auxiliary outputs with overload and short-circuit protection
LED indicators for module status and fault detection

Technical Specifications

Channels: 2
Counting frequency: up to 40 kHz
Input types:
- PNP/NPN 2/3-wire proximity sensors
- Incremental encoders (5 V RS422 or 10–30 V push-pull)
Input voltage:
- 24 V DC (sensor): 19–30 V range
- Encoder input: 5 V DC, ≤5.5 V max
Input current:
- Sensor input: ≥6 mA
- Encoder input: ≥3.7 mA
Input impedance:
- Encoder input: >270 Ω at 2.4 V
- Sensor input: 1400 Ω at Un
Output voltage: 24 V DC (19–30 V range)
Max output current: 0.5 A per channel
Voltage drop: <0.5 V at state 1
Protection features:
- Overload and short-circuit protection via thermal trip or software
- Overvoltage protection via Zener diode
Power consumption:
- 280 mA at 5 V DC
- 30 mA at 24 V DC
Power dissipation: 4.5–6 W
Cycle time: 5 ms

Physical & Environmental

Module format: Standard
Weight: 0.32 kg
Operating temperature: 0 to 60 °C
Storage temperature: -25 to 70 °C
Humidity: 5–95% non-condensing
Altitude: up to 2000 m
Package dimensions: 26.0 x 18.0 x 5.5 cm
Package weight: 489 g

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
