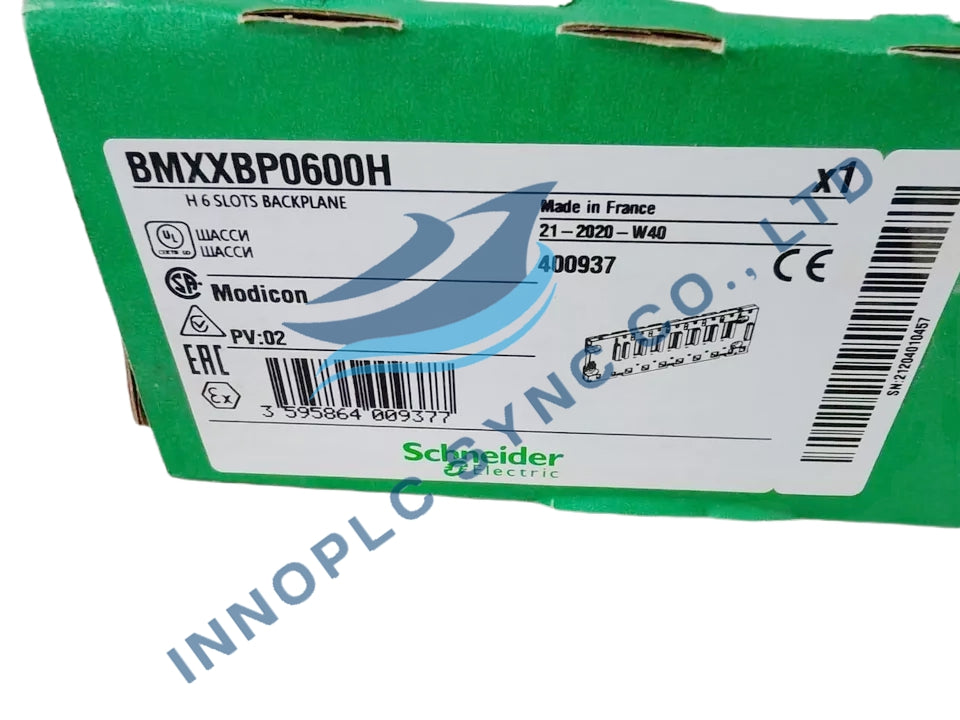

SCHNEIDER|BMXXBP0600| 6-Slot Backplane

SKU: BMXXBP0600

Manufacturer: SCHNEIDER
Product No.: BMXXBP0600
Condition：In stock
Product Type: 6-Slot Backplane
Product Origin: USA
Payment:T/T, Western Union
Weight: 75g
Shipping port: Xiamen
Warranty: 12 months

Description

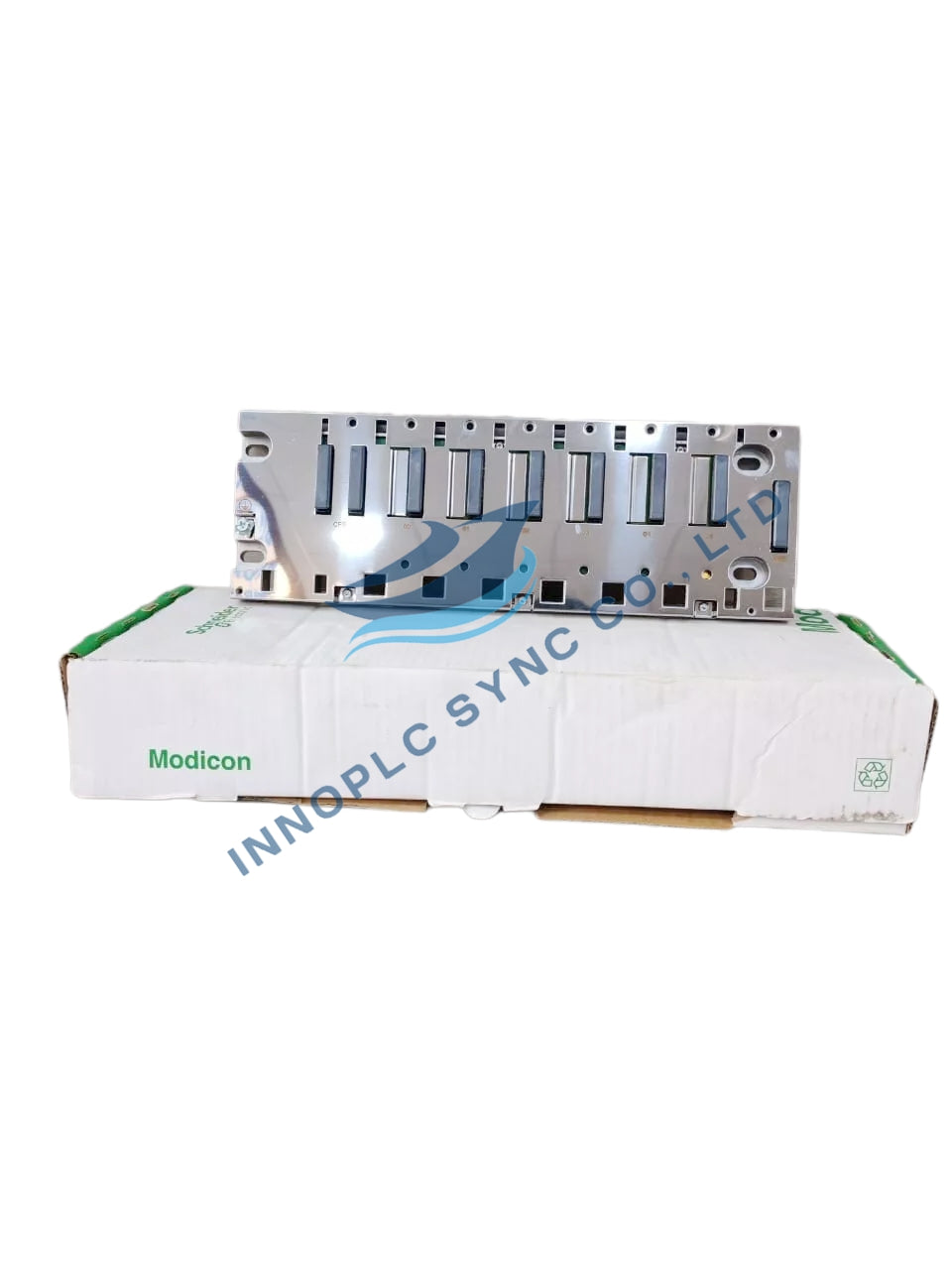

Schneider BMXXBP0600 is a 6-slot backplane for Modicon X80 series, designed to support processors, power supplies, I/O modules, and special application modules.

Features

Compatible with BMXP34 processor, BMXCPS power modules, and various I/O modules
Supports 1 XBE expansion module
Offers multiple installation options

Technical Specifications

Power consumption: 1.68 W
Dimensions:
- Height: 103.7 mm
- Width: 307.6 mm
- Depth: 19 mm
Weight: 0.79 kg
Installation methods:
- 4 M4/M5/M6 screws on panel or sub-base
- 35 mm DIN rail with clips
Environmental protection: IP20
Operating temperature: 0…60 °C
Humidity resistance: 10…95 % RH, non-condensing
Compliance:
- Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
- Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5 (Type 1 & 2), EN/IEC 61850-3 (Location G)
Certifications: CE, UL, CSA, RCM, EAC, UKCA, Marine approvals
Packaging data:
- PCE unit: 1 pc/box, dimensions 6.7 x 15.3 x 39.5 cm, weight 835 g
- S04 carton: 9 pcs/box, dimensions 30 x 40 x 60 cm, weight 8.385 kg
- P06 pallet: 36 pcs/box, dimensions 75 x 60 x 80 cm, weight 45.54 kg
