SCHNEIDER|140CPU67160S|Unity Hot Standby Safety Processor

SKU: 140CPU67160S

Manufacturer: SCHNEIDER
Product No.: 140CPU67160S
Condition：In stock
Product Type: Unity Hot Standby Safety Processor
Product Origin: USA
Payment:T/T, Western Union
Weight: 75g
Shipping port: Xiamen
Warranty: 12 months

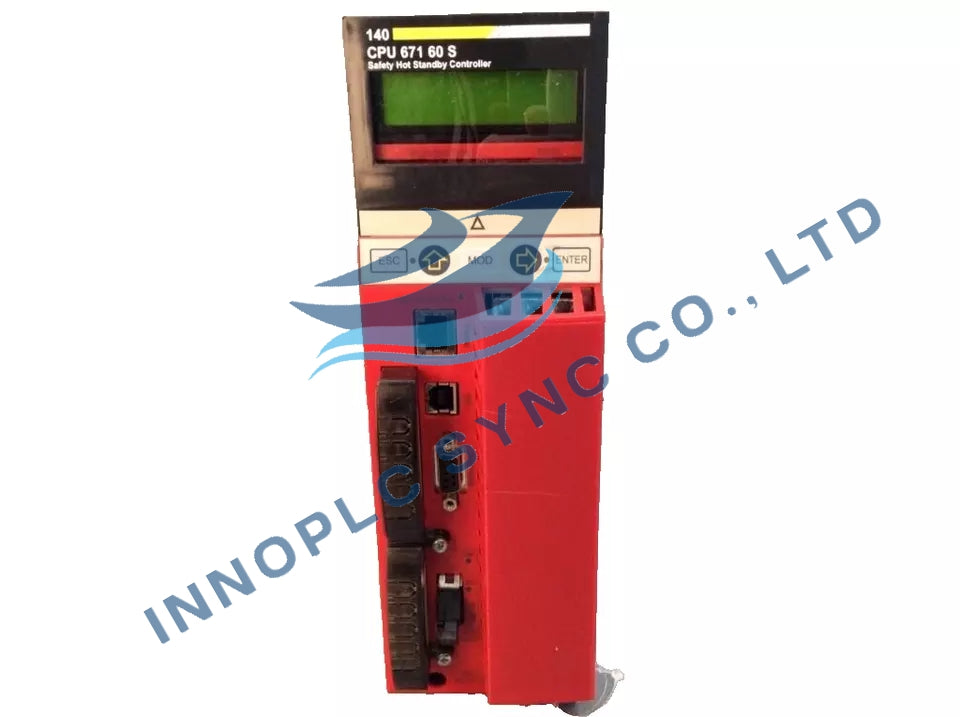

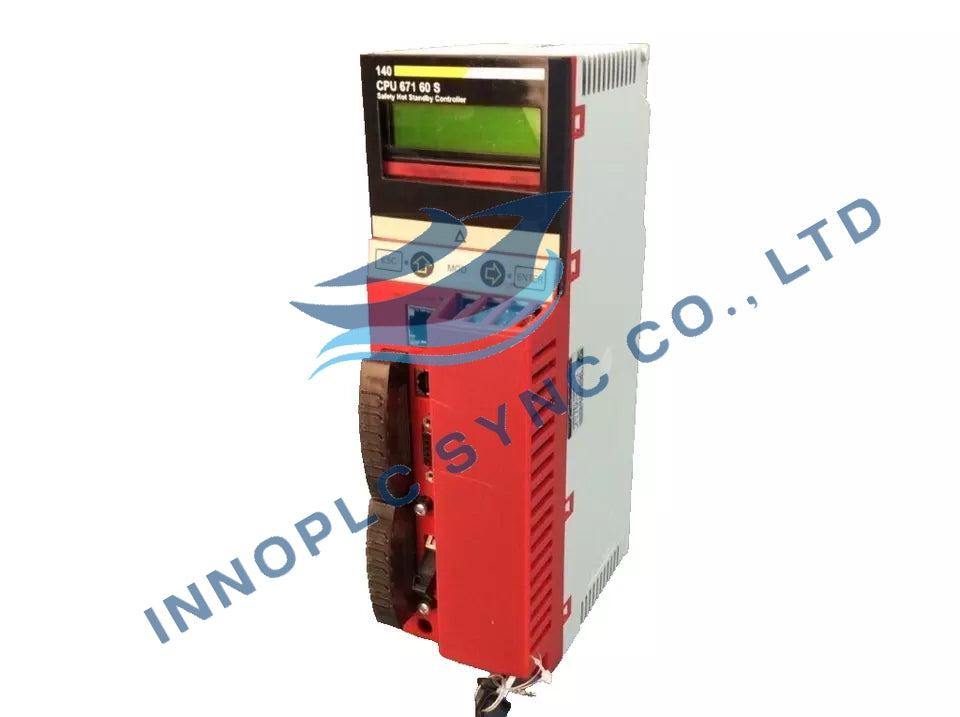

Schneider 140CPU67160S – Unity Hot Standby Safety Processor

Description
Schneider 140CPU67160S is a safety-rated Unity processor for Modicon Quantum systems, featuring 266 MHz speed, 1024 kB RAM, and Hot Standby functionality.

Features

Supports Hot Standby applications with redundancy
Integrated Ethernet, Modbus Plus, and USB interfaces
Expandable memory via PCMCIA card (up to 8 MB)
Safety certified for SIL 2 environments

Technical Specifications

Processor
- Clock frequency: 266 MHz
- Internal RAM: 1024 kB (512 kB for data)
Performance
- Execution time:
  - 0.96–1.02 µs for fixed-point
  - 0.105–0.15 µs for Boolean
- Overhead: 1.5 ms per master task
I/O Capacity
- Remote discrete I/O: 31,744 inputs/outputs
- Remote analog I/O: 1,984 inputs/outputs
Communication Interfaces
- 1 x Ethernet TCP/IP (Hot Standby ready)
- 1 x Modbus Plus
- 1 x Modbus (RS232/485)
- 1 x USB (type B)
Physical & Power
- Bus current requirement: 2500 mA
- Battery backup: Lithium (3 V DC, 1200 Ah capacity)
- Battery life: Up to 10 years
- Supply current: ≤90 A at ≤60°C
Environmental & Compliance
- Operating temperature: 0°C to 60°C
- Certifications: CE, UL, CSA, C-Tick, TÜV Rheinland (SIL2)
- Country of Origin: France

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
