Bachmann | GIO212 | Universal Input/Output Module

SKU: GIO212

Manufacturer: Bachmann
Product No.: GIO212
Condition：In stock
Product Type: Universal Input/Output Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Overview

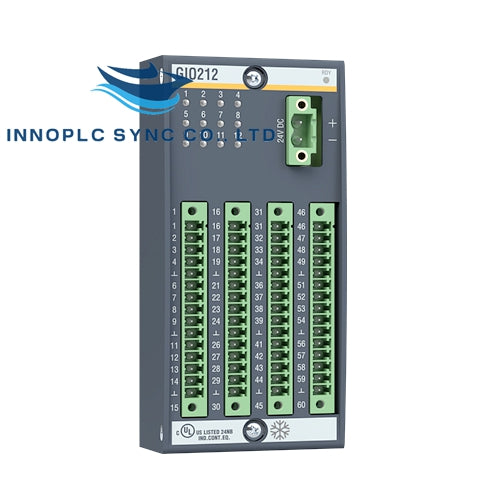

The Bachmann GIO212 is a Universal Input/Output Module designed for versatile use in industrial automation. This module offers a flexible configuration of 12 channels that can be individually set as input or output, enabling functions such as analog input, temperature measurement, digital input/output, and PWM output.

Technical Specifications

Attribute	Details
Manufacturer	Bachmann
Model Number	GIO212
Channels	12 channels (configurable as input or output)
Analog Inputs	Digital resolution: 16-bit
Input Voltage Range	±10 V, ±1 V, ±100 mV, ±10 mV
Input Current Range	±20 mA, 0-20 mA, 4-20 mA
Basic Accuracy (Analog Inputs)	±0.05% FS (voltage inputs), ±0.1% FS (current inputs)
Analog Outputs	Digital resolution: 14-bit
Output Voltage Range	±10 V
Output Current	0(4) to 20 mA
Digital Inputs	Nominal 24 VDC
Digital Outputs	Low-Side, High-Side, or Push-Pull (half-bridge)
PWM Output	Frequency: 0.95 Hz to 10 kHz
Temperature Inputs (Pt100/Pt1000)	Range: -100°C to +800°C
Operating Temperature	-30°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity (Operating)	5% to 95% (without condensation)
Approvals	CE, cULus, CCC, Marine (DNV, LR, ABS, BV)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
