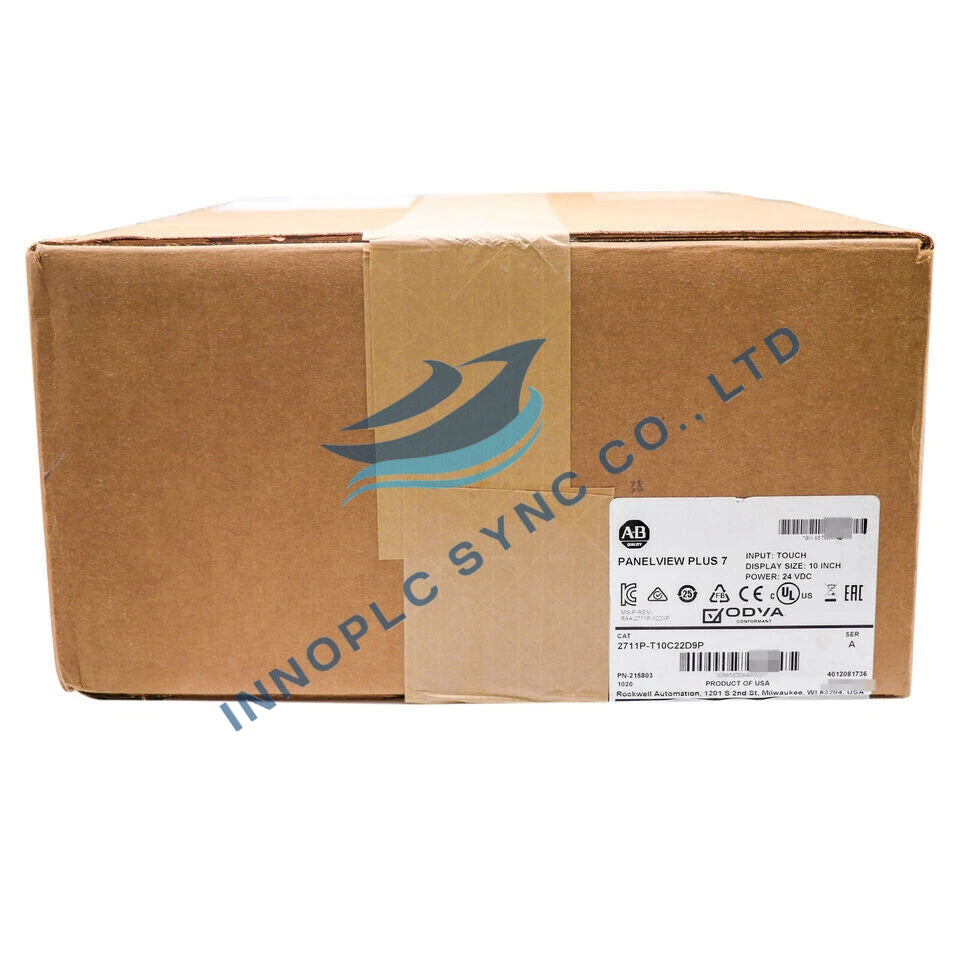

Allen-Bradley|2711P-T10C22D9P| Performance Terminals

SKU: 2711P-T10C22D9P

Manufacturer: Allen-Bradley
Product No.: 2711P-T10C22D9P
Condition：In stock
Product Type: Performance Terminals
Product Origin: USA
Payment:T/T, Western Union
Weight: 2300g
Shipping port: Xiamen
Warranty: 12 months

PanelView Plus 7 Performance Terminals

Description
The Allen-Bradley 2711P-T10C22D9P is a 10.4-inch HMI terminal from the PanelView Plus 7 Performance series, designed for operator interface applications in industrial automation. It features a TFT color touchscreen and supports EtherNet/IP communication with ControlLogix and CompactLogix controllers.

Features

10.4-inch display with 800x600 SVGA resolution (24-bit color)
Analog resistive touchscreen (1 million actuations, 100g operating force)
Dual Ethernet ports supporting DLR, linear, or star topologies
Conformal coating option for harsh environments
Windows 10 IoT Core OS with 4GB RAM and 19.87GB storage

Technical Specifications

Display

Viewing area: 211 x 158 mm (8.3 x 6.2 in)
Brightness: 300 cd/m²
Backlight life: 50,000 hours (half-brightness at 40°C)

Memory

4GB RAM, 2GB nonvolatile storage
Supports SD cards (up to 32GB via 1784-SDHCx)

Connectivity

USB 3.0 + USB 2.0 host ports, 1x USB 2.0 device port
10/100Base-T Ethernet (auto MDI/MDIX)

Power

24V DC (18–30V DC range)
32W max power consumption

Environmental

Operating temperature: 0–55°C
IP66/NEMA 4X rating (optional IP69K for stainless steel models)
Corrosive atmosphere (G3 per ANSI/ISA 71.04)

Dimensions

252 x 297 x 69.6 mm (9.92 x 11.69 x 2.74 in)

Weight

2.28 kg (5.03 lb)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
