ABB Bailey|IEPAFD1|Power Supply Module

SKU: IEPAFD1

Manufacturer: ABB
Product No.: IEPAFD1
Condition：In stock
Product Type: Power Supply Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

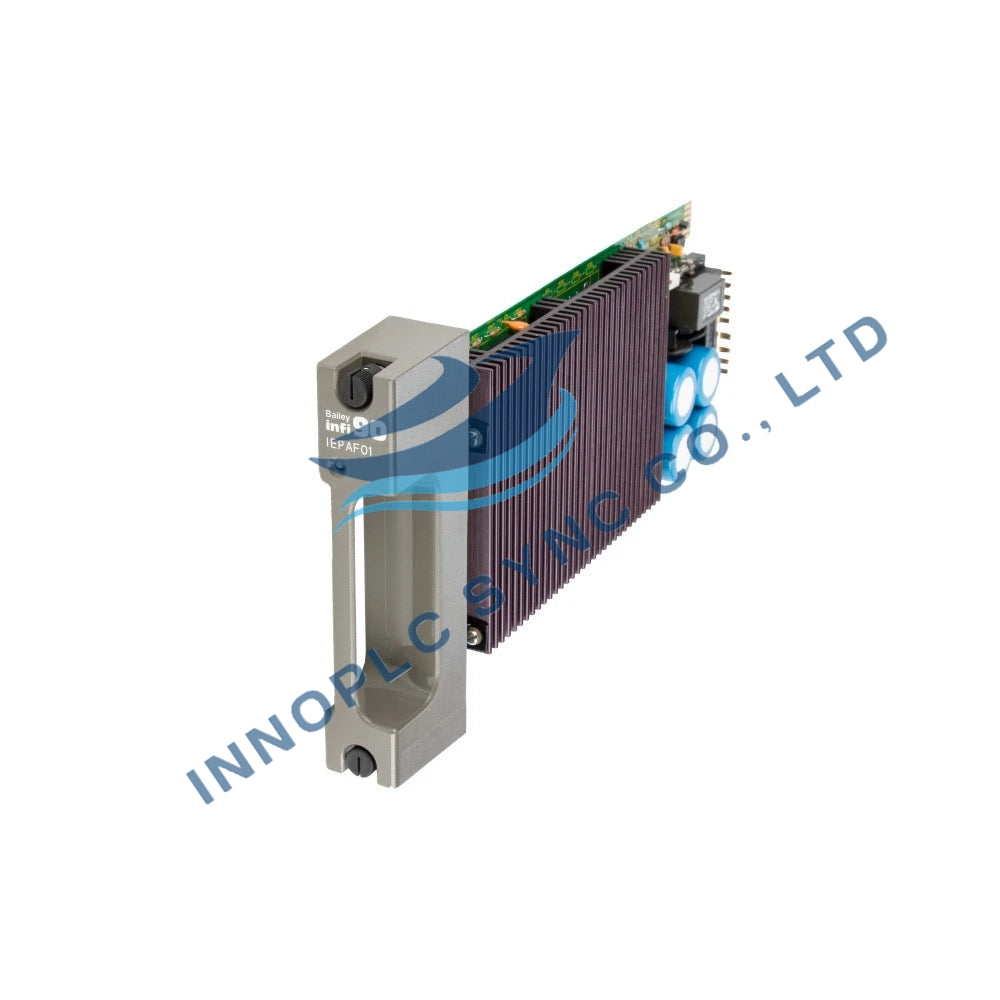

ABB IEPAFD1 Power Supply Module

Description
The ABB IEPAFD1 is an AC input field power supply module tailored for Infi 90 systems, providing reliable +24 VDC power to field termination devices.

Features

Ensures stable +24 VDC output
Facilitates separate power distribution for field terminations
Compact design suitable for mounting units

Technical Specifications

Input Requirements

Voltage: 102–132 VAC or 204–264 VAC (configurable via jumper)
Frequency: 47–63 Hz
Input Current: Up to 1.6 A per module
Inrush Current: Less than 15 A (fully loaded condition)
Harmonic Distortion: 5%
Surge Protection
- For 120 VAC: 295–350 V (differential), 500–650 V (common)
- For 240 VAC: 650–750 V (differential), 800–1100 V (common)
Transient Voltage and Current: 6000 V peak / 3000 A peak
Leakage Current (at 240 VAC): 1.1 mA (line to neutral), 0.55 mA (neutral to ground)

Output Specifications

Voltage Output: +24 VDC ±0.6% at 4 A
Line Regulation: 0.5%
Hold-Up Time: At least 10 ms when fully loaded
Heat Dissipation: Maximum 25 W

Environmental Conditions

Operating Temperature: Up to 70°C (baseplate up to 85°C)
Humidity Range: 5–90% non-condensing up to 55°C, 0–45% up to 70°C
Cooling Requirement: Typically requires 180 CFM airflow
Altitude Tolerance: From sea level up to 3 km (approximately 1.86 miles)
Atmosphere Suitability: Non-corrosive environments

Physical Dimensions

Height: 13.20 cm (5.2 inches)
Width: 48.26 cm (19 inches)
Depth: 11.43 cm (4.5 inches)
